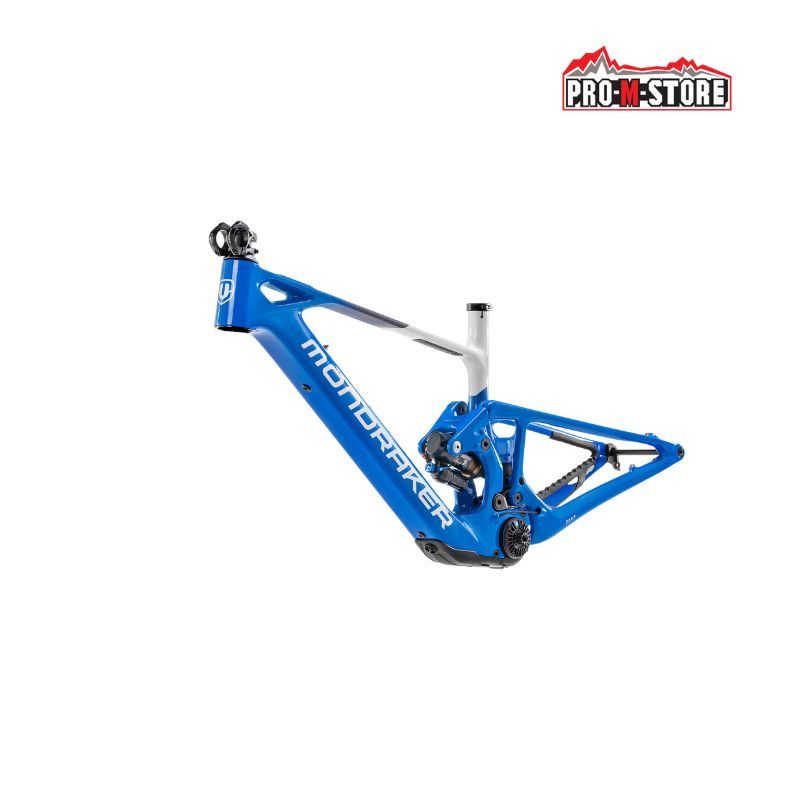

MONDRAKER NEAT RR SL FRAME

The NEAT RR SL frame by Mondraker is the perfect choice for bike enthusiasts seeking exceptional performance and unmatched style. With its eye-catching design and high-quality construction, this frame offers you the perfect foundation to build your dream bike.

MONDRAKER NEAT RR SL FRAME KEY FEATURES:

• Lightweight aluminum construction for responsive and agile riding.
• Geometry designed to maximize power on climbs and stability on descents.
• Modern and eye-catching design with high-quality finishes.
• Compatible with high-end transmissions and components.

TECHNICAL SPECIFICATIONS

• FRAME: Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• SHOCK: Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• SHOCK ADJUSTMENT: Medium compression, medium rebound, air volume spacer 0.4.
• HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
• STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• DROPOUT: Sram UDH.
• WEIGHT: Mondraker custom design Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh.
• DISPLAY: TQ HPR display V01.
• MOTOR: TQ HPR-50.
• BATTERY: TQ HPR-50 360Wh integrated and removable.
