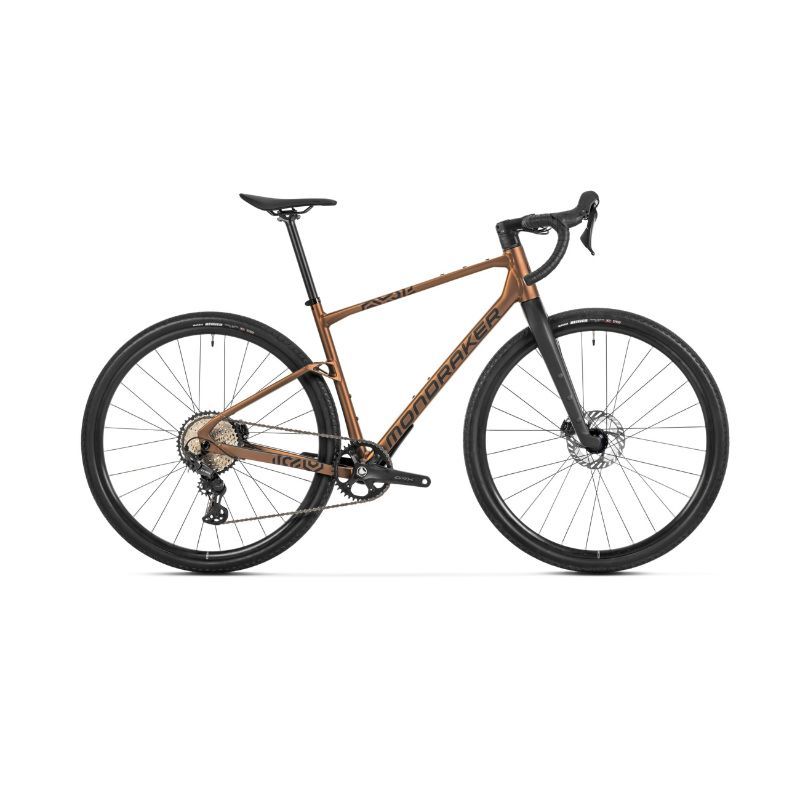

MONDRAKER ARID S BIKE

Try something new.
Ride solo or catch up to the group ahead. If you can’t beat them, join them. Take a break from mountain biking. Or maybe don’t. Mix things up with gravel and finish a 200 km race self-supported on endless trails. Or get lost in the woods for the weekend. Light a fire and cook your own dinner. Live the adventure your way. The Mondraker way.

MONDRAKER ARID S MAIN FEATURES:

• 700c wheels.
• Stealth Alloy aluminum frame.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame

  Arid Alloy, T47 bottom bracket, tapered head tube, internal HHG cable routing, 12x142 mm rear axle, 1X drivetrain design, Flatmount brake compatible.



  Sizes

  S: 410 mm / M: 450 mm / ML: 480 mm / L: 510 mm / XL: 540 mm

•

  Fork

  Stealth Air Carbon tapered steerer, HHG, integrated Flat-Mount fork



  Headset

  ONOFF IS52/IS52, 1-1/8" to 1.5" steerer, sealed bearings, internal cable routing

•

  Stem

  ONOFF Semi-Integrated 6061 T6 alloy, 31.8 mm bar bore, -7° rise
  Size S: 60 mm / M: 70 mm / ML: 70 mm / L: 80 mm / XL: 90 mm



  Handlebar

  ONOFF S3 GR, 16° flare
  Width - Size S: 440 mm / M: 440 mm / L: 460 mm / XL: 460 mm

•

  Grips

  ONOFF HEX Bartape



  Seatpost

  ONOFF S9 Carbon 0-R, 27.2 mm diameter, 400 mm length

•

  Saddle

  FIZIK Terra Argo X5 140 mm



  Front Brake

  Shimano GRX RX-610, RX-400 caliper, CL-800 Ice Tech 160 mm rotor, resin pads

•

  Rear Brake

  Shimano GRX RX-610, RX-400 caliper, CL-800 Ice Tech 160 mm rotor, resin pads



  Brake Levers

  Shimano GRX RX-610, contact point adjustment, reach adjustment with tools, aluminum lever

•

  Rims

  Mavic Allroad Disc, UST, 25 mm internal width, hookless, Infinity hubs, 24 spokes front / 28 rear



  Spokes

  Mavic double-butted flat steel spokes

•

  Front Hub Axle

  Mavic, 12x100 mm, 6-bolt IS



  Rear Hub Axle

  Mavic Infinity Hub, 12x142 mm, XD ID360 ratchet system, 6-bolt IS, XDR freehub

•

  Front Tire

  Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead



  Rear Tire

  Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

•

  Crankset

  Shimano GRX RX-610
  Size S: 170 mm / M: 170 mm / ML: 172.5 mm / L: 172.5 mm / XL: 175 mm, CL 49.7



  Chainring

  Shimano 40T, direct mount, steel

•

  Bottom Bracket

  Token T47 BSA sealed bearings, 85.5 mm



  Chain

  Shimano SLX M7100, Quick link

•

  Rear Derailleur

  Shimano GRX RX-822-GS, 12-speed



  Shifters

  Shimano GRX RX-610 dual control, alloy lever

•

  Cassette

  Shimano SLX M7100, Hyperglide+, 10-45T, 12-speed



  Derailleur Hanger

  M078

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DRIVETRAIN AND BRAKES ARE ALREADY INSTALLED
