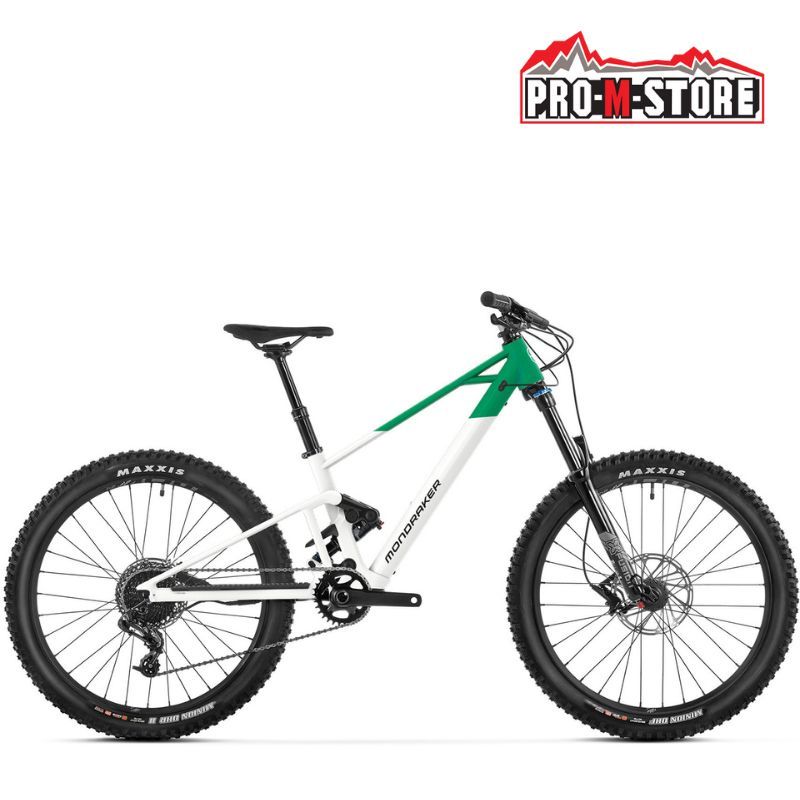

MONDRAKER KID'S BIKE F-PLAY 24

The Mondraker F-Play 24 2026 is an electric bike specifically designed for young riders who want to experience the thrill of off-road riding with modern assistance. Thanks to the Mahle X-30 motor, integrated battery and the Zero suspension system, it offers a balanced mix of performance, comfort and handling. With reliable components from Shimano, X-Fusion and Maxxis, this model ensures a safe and fun ride even on demanding terrain.

This bike features a Stealth Evo aluminum frame with integrated battery, X-Fusion Slant RC fork with 120 mm travel, X-Fusion 02PRO R shock and Mahle X-30 motor. It is equipped with a 12-speed Shimano Deore drivetrain, hydraulic Shimano MT501 disc brakes and Maxxis Minion tubeless-ready mountain bike tires.

KEY FEATURES — MONDRAKER KID'S BIKE F-PLAY 24:

• Wheel size: 24".
• Front travel: 120 mm.
• Rear travel: 120 mm.
• MAHLE X30 motor.
• Battery: 250 Wh.
• Frame: Alloy.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: F-Play 24 Alloy 6061 Stealth Evo, hydroformed tubes, Zero Suspension system, 120 mm travel, one-piece bolted upper link, integrated non-removable internal battery, tapered head tube, internal HHG cable routing, BSA bottom bracket, 1x compatible drivetrain
• Motor: Mahle X-30, drive unit
• Display: iWoc ONE Head Unit
• Battery: Mahle IX 250 Wh
• Charger: N/A
• Fork: X-Fusion Slant RC 26, 120 mm, air spring, tapered steerer, 15x100 mm axle, 34 mm aluminium stanchions, 41 mm offset. Adjustments: lockout, rebound, air preload
• Shock: X-Fusion 02PRO R, 165x42.5 mm. Adjustments: low-speed compression, air preload. Upper trunnion, lower bushings 50x8 mm
• Derailleur: Shimano Deore M6100, SGS, Shadow+, 12s
• Shifter: Shimano Deore M6100, RapidFire Plus, 12s
• Cassette: Sunrace CSMZ600, 11-51T
• Chain: Shimano Deore M6100, 12s, Quick-link
• Chainring: 30T, steel
• Cranks: Prowheel DMJ-CR094S-TT, direct-mount chainring, 150 mm
• Front brake: Shimano MT501, 6-bolt, IS mount, RT56 180 mm rotor, resin pads
• Rear brake: Shimano MT501, 6-bolt, IS mount, RT56 180 mm rotor, resin pads
• Rotors: N/A
• Front tyre: Maxxis Minion DHF 24x2.4, Tubeless Ready, 3C MAXX TERRA, EXO protection, 60 TPI, folding bead
• Rear tyre: Maxxis Minion DHR II 24x2.3, Tubeless Ready, EXO protection, 60 TPI, folding bead
• Rims: MDK-HP1 24 TLR, 25 mm internal width, tubeless ready, 32 spokes
• Front hub: DA210FS02, 15x100 mm, cup-and-cone bearings, 6-bolt IS
• Rear hub: Mahle-Ebikemotion X-30, HG freehub
• Handlebar: MDK XC 1.0, 6061 alloy — rise 25 mm, width 680 mm, backsweep 9°, upsweep 5°, 31.8 mm clamp
• Stem: Onoff S3 30 mm 0°, forged 6061 alloy, 31.8 mm clamp
• Saddle: SDG Fly JR
• Seatpost: X-Fusion Manic LC internal, 31.6 mm diameter, 1x remote lever, 100 mm travel
• Max rider weight: N/A
• Weight: 16.2 kg

*PRO-M STORE OFFERS FREE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, GEARS AND BRAKES ARE ALREADY FITTED
