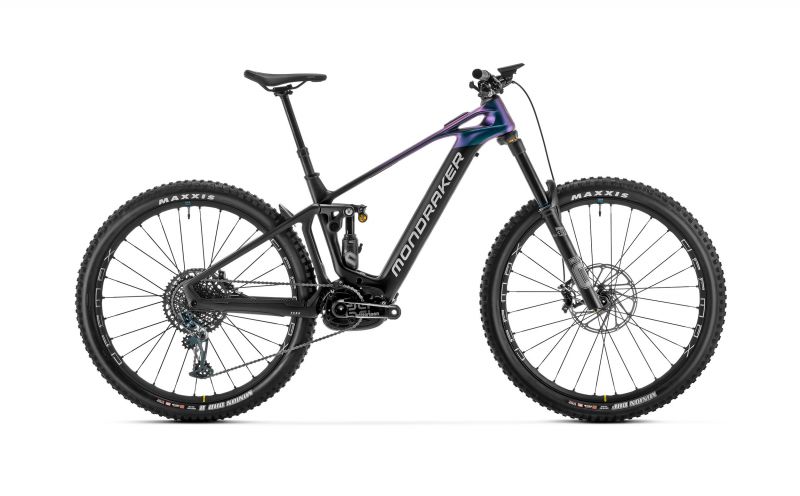

MONDRAKER CRAFTY CARBON XR BIKE

The Mondraker CRAFTY CARBON XR is anything but an ordinary e-bike! Equipped with the BOSCH Performance Line CX Race motor, it is one of the first bikes on the market to be equipped with this motor. A new addition to the equipment list is the Bosch Kiox 500, which has a 40 percent larger color display than its predecessor. An excellent combination of sleek looks and never-before-seen engine performance and features.

New Bosch Performance Line CX Race motor.
Long name - clear statement: Race. The new Bosch motor is as exclusive as it is powerful. More aggressive, more dynamic, and with unprecedented acceleration, Race mode offers 400% engine support compared to 340% in Turbo mode on the conventional Performance CX model. Torque remains unchanged at 85 Nm. Featuring a magnesium housing, the engine weighs 2,750 grams, making it exactly 150 grams lighter than the standard Performance Line CX series engine.

One of the most important features of the new Bosch Performance Line CX Race motor is the "Race" mode, a mode superior to the traditional "Turbo" mode. Both modes can be configured via the eBike Flow app, as can settings for other support levels, dynamic acceleration, initial acceleration, maximum speed, and maximum torque.

Technologies
MIND
The MIND system is Mondraker's latest innovation, an intelligent solution for perfect suspension adjustment and more!MIND will change the way we ride. In 2021, Mondraker will introduce a fully integrated telemetry system with built-in GPS that connects via a mobile app, offers numerous functions, and provides a wide range of data on every riding situation-a technology never before installed on a production MTB. MIND collects ride data and information on shock and suspension operation and transmits it to the myMondraker app for further analysis.The app also provides access to the entire "Mondraker universe," making every ride an unbeatable experience.

The MIND telemetry system provides valuable information about the suspension work and the route taken.This ranges from the optimal SAG setting, which is important for getting the best out of the bike, to the most interesting riding data (detailed data on time and distance, total distance, average speed, altitude, etc.) to performance parameters such as the number and distance of jumps, the "airtime" of each jump, the maximum front and rear suspension travel achieved, and whether, when and where bottoming out occurred.From now on, your bike's suspension will no longer be adjusted by feel, but by fact.

The MIND telemetry system provides valuable information about the work of the suspension and the route taken. This ranges from the optimal SAG setting, which is important for getting the best out of the bike, to the most interesting riding data (detailed data on time and distance, total distance, average speed, altitude, etc.) to performance parameters such as the number and distance of jumps, the "airtime" of each jump, the maximum front and rear suspension travel achieved, and whether, when and where bottoming out occurred. From now on, your bike's suspension will no longer be adjusted based on feel, but based on fact.With MIND, you will be able to adjust your bike easily and optimally, regardless of riding intensity, riding style, or riding ability.MIND connects to the myMondraker app via Bluetooth to transfer and save riding data and settings.Thanks to myMondraker, you can now check if you were faster or slower on a difficult section of your favorite trail or if you punctured when you landed after a jump.And with links to popular social networks, such as Strava, you can share your activities quickly and easily.

The front sensor is hidden and well protected inside the head tube and detects the magnetic field of a magnet attached to the upper end of the left fork tube.

It continuously records the travel of the fork suspension by determining the relative position of the fork 100 times per second during riding and up to 5,000 times per second during SAG measurement.This sensor also serves as a central unit and transmits all data via Bluetooth to the myMondraker app on the smartphone.

This central unit also receives readings from the rear MIND sensor, which is located on the upper link of the Zero suspension system and measures the field of a magnet located on the main bearing of the rear frame triangle.Together they collect the rear suspension performance data and send it to the central unit.

Finally, the MIND central unit also has a built-in GPS receiver with its own GSM 2G / 4G connection, independent of the phone, and each MIND unit has its own rechargeable battery with an average battery life of more than 20 hours in operation or more than 15 days in standby mode.To fully recharge, simply connect both devices to a charger with a USB-C cable.

Finally, the MIND central unit also has a built-in GPS receiver with its own GSM 2G / 4G connection, independent of the phone, and each MIND unit has its own rechargeable battery with an average battery life of more than 20 hours in operation or more than 15 days in standby mode.

To fully recharge, simply connect both devices to a charger with a USB-C cable.A blue light flashes to indicate that the system is in charging mode. The complete MIND system, which includes both sensors, batteries, magnets, and antenna, weighs only 199 grams, requires no maintenance, and is integrated almost invisibly into the bicycle.MIND automatically connects to the myMondraker app (free download for Android and iOS) via Bluetooth to synchronize all relevant data from your rides, including suspension operation at all times.

STEALTH AIR CARBON
Stealth Air Carbon begins with the selection of the best high-modulus carbon fibers, followed by the development of a precisely engineered laminate.This allows Mondraker to achieve the lowest possible weight without sacrificing reliability or stability.Based on the special components of an e-bike, the design introduces organically flowing lines and soft edges for the first time-an innovative look full of refined aesthetics.This makes the new Crafty Carbon a true e-MTB icon. Its sleek and powerful design plays a key role in the distinctive "Mondraker look"-so remarkably elegant that the Crafty Carbon is truly unique!

All Crafty Carbon RR SL, RR and R frames share the same Stealth Air Carbon manufacturing process and its exceptional properties. They are all based on the same unique and exclusive construction, selection of the highest quality carbon fibers and careful manufacturing. All this makes the Crafty Carbon the most versatile, sophisticated and exclusive e-MTB currently available.

FORWARD GEOMETRY

The Crafty Carbon benefits from Mondraker's last 8 years of experience with Forward geometry.And as an e-bike, it has the best Forward geometry ever created for an e-MTB: a steep 76° seat angle ensures an optimal and efficient riding position.The optimized chainstay length of 455 mm has been perfectly balanced to offer maximum uphill traction and playful handling.The typical long reach, coupled with the short front center that Mondraker bikes are famous for, and the 65.5° slack steering angle and short offset 160 mm Fox fork provide unparalleled front wheel traction and steering precision.

Above all, the short offset of 44 mm suspension fork fully unfolds its positive influence on steering characteristics only in combination with Forward Geometry's long reach and short FG30 stem. A short offset means a longer trail, which improves directional stability and makes handling light and extremely controllable.The improved front wheel grip is the icing on the cake: more speed, more safety, more fun!

ZERO KINEMATICS OPTIMIZED FOR E-BIKES

Zero is Mondraker's patented suspension system, a technological pioneer for suspension systems with a virtual pivot point.Consisting of 2 rocker arms that compress and control the shock from both sides, Zero is a distinctive feature of all Mondraker Full Suspension models.Like the entire 2020 range, the Crafty Carbon introduces a further improved development phase of the Zero suspension system, which has been specially adapted to the special requirements and features of e-MTBs.

All three Crafty Carbon RR SL, RR, and R models are equipped with FOX DPS shock absorbers with metric-pivot mounts and internal tuning, developed specifically for use with the Zero suspension system and its 150 mm travel.

AIRFLOW COOLING SYSTEM
The Crafty Carbon features an innovative cooling system that directs airflow through the down tube.Air enters through openings near the head tube, flows along the battery and exits at the base of the down tube. This effectively dissipates waste heat from the battery, ensuring its tremendous performance even under full load.

HIDDEN HOUSING GUIDEThe Crafty Carbon features Mondraker's Hidden Housing Guide (HHG) technology, which routes all cables and lines for the rear derailleur, brakes and, on the Crafty Carbon R and RR, the retractable seatpost inside the frame.Of particular interest is Acros' new ICR (Integrated Cable Routing) headset, developed specifically for the Crafty Carbon in collaboration between Acros and Mondraker.It allows cables to be routed through the headset from above, providing a neat and clear look.

Another feature of Race mode is the "extended boost," already familiar from the eMTB mode, but in Race mode it has an even longer boost that opens up unimaginable possibilities on technical passages, single trails, and climbs.

Like the other Smart System models in the CRAFTY 2023 collection, the CRAFTY CARBON XR is equipped with Bosch's new System Controller (a module built into the top tube that can be used to turn the motor on and off, but also to switch between support modes).The external Kiox 500 display can also be used to monitor all ride data, providing the widest possible range of information about the spectacular CRAFTY CARBON XR.

MONDRAKER CRAFTY CARBON XR BIKE MAIN FEATURES:

• Wheel diameter: 29.
• 12 speeds.
• Motor: Bosch.
• Battery: 750wh.
• Excursion: 170mm.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Crafty Stealth Air full Carbon, Zero Suspension System optimized for e-Bike, 150 mm travel, Forward Geometry, non-removable internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece top link, cable management system HHG internal, sealed bearings with MAX load capacity, 17mm oversized axles, integrated dropout speed sensor, exclusive plastic engine covers.
• ENGINE: Bosch Performance Line CX-Race (25Km/h) Smart System.
• DISPLAY: Bosch Kiox 500/ Bosch Mini Remote / Bosch System Controller.
• BATTERY: Bosch Powertube 750Wh.
• CHARGER: Bosch.
• FORK: Öhlins RXF 38 M.2 29, 170 mm, TTX18 Twin cartridge Tube, tapered head tube, Boost 15x110 mm axle, 44 mm offset.
• SHOCK: Öhlins TTX Air 205X65 mm.
• CRANKSET: Sram X01 Eagle, X-Actuation 1:1, 12v.
• SHIFTER: Sram Trigger GX Eagle, X-Actuation 1:1, 12v.
• SPROCKETS: Sram X-Sync 2 Eagle 34D, steel, narrow-wide, 104 BCD.
• CRANKARM: E-bike E.13 TRS Race carbon, 165 mm.
• FRONT BRAKE: SRAM Code Silver Stealth, 4 pistons > - Rear brake: SRAM Code Silver Stealth, 4 pistons.
• ROTORS: Centerline 220mm IS 6 holes / Centerline 200mm IS 6 holes.
• FRONT TIRE: Maxxis Minion DHF 29x2.6 WT, tubeless ready, 3C MAXX compound TERRA, EXO+ protection, 120TPI, folding bead.
• REAR TIRE: Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C compound MAXX TERRA, EXO+ protection, 120TPI, folding bead.
• RIMS: Mavic E-Deemax S 29, 30 mm internal width, Maxtal alloy welding, PFP, tubeless ready, 28 spokes.
• FRONT HUB: Mavic Boost 15x110mm.
• REAR HUB: Mavic Boost 12x148mm.
• HANDLEBAR: Onoff Kripton Carbon 1.0 , rise: 25 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, barber 31.8 mm.
• STEM: ONOFF Krypton FG 30 mm, CNC, barber 31.8 mm.
• SADDLE: FIZIK Terra Aidon 170 mm, size XL: 558x170-200 mm.
• MAXIMUM WEIGHT SUPPORTED: 150 kg (total weight).
• BIKE WEIGHT: 23.4 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
