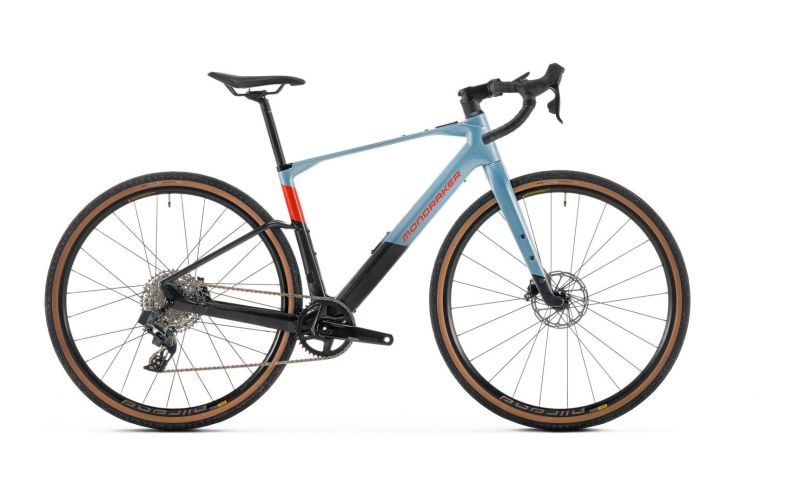

MONDRAKER DUSTY RR 2023 BIKE

MONDRAKER DUSTY RR 2023 BIKE

The Mondraker DUSTY represents the perfect concept of an e-Gravel bike, designed to encompass the three most in-demand gravel disciplines: adventure, long distance and technical terrain.

The adventure gravel bike

Perfect for short and explosive rides when you only have an hour for your daily training, at full speed. Also ideal for 1 or 2-day events, when you load the essentials on your DUSTY and set off looking for the best place to sleep or the most scenic route in your area. It offers all the range you’ll ever need, more than sufficient load capacity, superior comfort and confidence-inspiring handling. You decide the length and intensity of your rides.

The long distance gravel bike

You know when you start pedaling, but not when you’ll stop. With its internal 350Wh battery you can ride up to 180 km depending on the selected assistance level and the accumulated elevation gain. Imagine how far you could go with the optional 171Wh range extender and the extra power of your legs!

Gravel on more technical terrain

We designed the seatstays to provide unparalleled damping, ensuring comfort and control even on the most demanding terrain. And if that’s not enough, our top-of-the-line DUSTY XR comes equipped with a 40 mm RockShox Rudy fork and a 75 mm Reverb XPLR AXS dropper post, so you can take your DUSTY on trails that logic would tell you to avoid.

MONDRAKER DUSTY RR 2023 MAIN FEATURES:

• SRAM RIVAL ETAP 1x12 drivetrain
• Mavic Allroad Disc wheels
• Maxxis Rambler EXO 40 mm tires
• ONOFF components

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Dusty Stealth Air Carbon, pressfit 386 EVO BB, tapered head tube, HHG internal cable routing, non-removable integrated battery, 12x142 mm rear thru axle, compatible with 1X or 2X drivetrains, flat mount brakes, speed sensor integrated in dropout
• Sizes: S: 440 mm / M: 460 mm / L: 500 mm / XL: 530 mm
• Fork: Stealth Air Carbon, tapered steerer, HHG, integrated flat mount
• Headset: OnOff gravel tapered for 1-1/8” - 1-1/2” steerer tube, sealed ACB bearings
• Stem: OnOff gravel 6061 T6 Alloy, 31.8 mm diameter, +/-7º rise, lengths: S: 70 mm / M: 70 mm / L: 80 mm / XL: 90 mm
• Handlebar: OnOff Barium gravel with 18º flare – width S/M: 440 mm, L/XL: 460 mm
• Grips: Barium gravel dark grey
• Seatpost: OnOff Barium gravel carbon microadjust, 27.2 mm diameter, 400 mm length
• Saddle: FIZIK Terra Argo X7 150 mm
• Front brake: Sram Rival Etap AXS 2-piece, Centerline 160 mm IS 6-bolt rotor, organic pads with steel backing
• Rear brake: Sram Rival Etap AXS 2-piece, Centerline 160 mm IS 6-bolt rotor, organic pads with steel backing
• Brake levers: Sram Rival, contact point adjustment, reach adjust with tool, plastic levers
• Rims: Mavic Allroad Disc, UST, 22 mm inner width, hookless, 24 spokes
• Spokes: Mavic steel, double butted, bladed
• Front hub: Mavic, 12x100 mm, IS 6-bolt
• Rear hub: Mahle X20 Drive Unit, XDR freehub
• Front tire: Maxxis Rambler 700x40, tubeless ready, dual compound, EXO protection, 60 TPI, folding bead, tan sidewall
• Rear tire: Maxxis Rambler 700x40, tubeless ready, dual compound, EXO protection, 60 TPI, folding bead, tan sidewall
• Crankset: Sram Rival 1 GLS DUB Wide – S: 170 mm / M: 172.5 mm / L: 172.5 mm / XL: 175 mm
• Chainring: Sram X-Sync Eagle 40T direct mount aluminum, narrow-wide
• Bottom bracket: Mahle pressfit with sealed bearings and torque sensor
• Chain: Sram Rival 12s with Powerlock
• Rear derailleur: Sram Rival XPLR Etap AXS 12s
• Shifters: Sram Rival Etap AXS 12s
• Cassette: Sram XG-1251 10-44T, 12s
• Motor: Mahle X20 Drive Unit
• Battery: Mahle X20 IX350Wh
• Display: Pulsar One Wireless
• Extra: Optional Mahle e185 172Wh range extender
• Weight: 13.1 kg

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY INSTALLED
