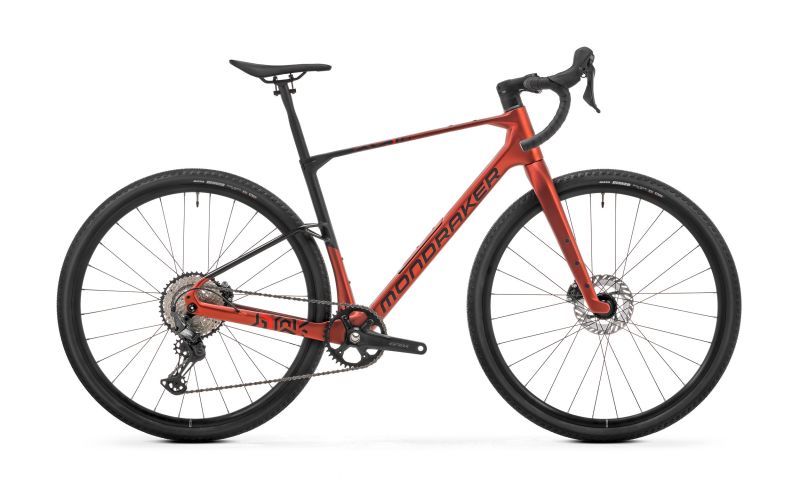

MONDRAKER ARID CARBON BIKE

ARID CARBON: ARID + SHIMANO
Arid Carbon is the base model and the only version equipped with Shimano drivetrain and brakes. The Shimano GRX RX-610 group, designed specifically for gravel, features a 40-tooth chainring and a 12-speed 10-45 cassette, ensuring smooth and precise shifting. The Mavic Allroad Disc 25 mm wheels, fitted with Maxxis Reaver EXO 120TPI 45 mm tires, offer excellent grip and low rolling resistance. Available in the stunning Earth Red / Black / Flame Red colorway.

MONDRAKER ARID CARBON KEY FEATURES:

• Wheel Size: 28"
• Gears: 12-speed
• Shimano GRX RX-610

THE BIKE IS DELIVERED PARTIALLY ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS:

• Frame: Arid Stealth Air Carbon, in-frame storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142 mm rear axle, 1X drivetrain design, compatible with Flatmount brakes.
• Fork: Stealth Air Carbon tapered steerer, HHG, integrated Flat-Mount fork.
• Shock: N/A
• Rear Derailleur: Shimano GRX RX-822-GS, 12s
• Front Derailleur: N/A
• Shifters: Shimano GRX RX-610 dual control, alloy lever
• Cassette: Shimano SLX M7100, Hyperglide+, 10-45, 12s
• Chain: Shimano SLX M7100, Quick Link
• Chainring: Shimano 40T, direct mount, steel
• Crankset: Shimano GRX RX-610, size S: 170mm, M: 170mm, ML: 172.5mm, L: 172.5mm, XL: 175mm, CL 49.7
• Front Brake: Shimano GRX RX-610 lever, RX-400 caliper, CL-800 Ice Tech 160 mm centerlock rotor, resin pads
• Rear Brake: Shimano GRX RX-610 lever, RX-400 caliper, CL-800 Ice Tech 160 mm centerlock rotor, resin pads
• Rotors: N/A
• Front Tire: Maxxis Reaver 700x45, tubeless ready, EXO dual compound protection, 120 TPI, folding bead
• Rear Tire: Maxxis Reaver 700x45, tubeless ready, EXO dual compound protection, 120 TPI, folding bead
• Rims: Mavic Allroad Disc, UST, 25 mm internal width, hookless, Infinity hubs, 24 front spokes, 28 rear spokes
• Front Hub: Mavic, 12x100 mm, 6-bolt IS
• Rear Hub: Mavic Infinity, 12x142 mm, XD ID360 ratchet system, 6-bolt IS, XDR freehub
• Handlebar: ONOFF S3 GR, 16º flare. Width - Size S: 440 mm, M: 440 mm, L: 460 mm, XL: 460 mm
• Stem: ONOFF S3 alloy 6061 T6, 31.8 mm clamp, -7º rise. Length - Size S: 60 mm, M: 70 mm, ML: 70 mm, L: 80 mm, XL: 90 mm
• Saddle: FIZIK Terra Argo X5 140 mm
• Seatpost: ONOFF S9 Carbon 0-R, diameter 27.2 mm, length 400 mm
• Maximum Allowed Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY MOUNTED
