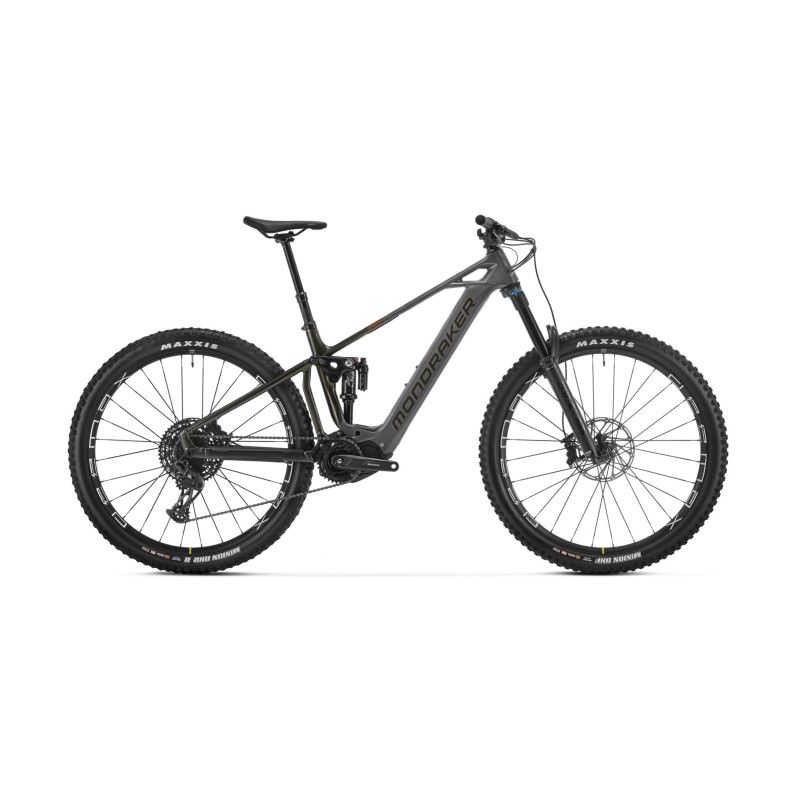

MONDRAKER CRUSHER BIKE

The first model in Mondraker's Crusher range is equipped with a Fox 38 29 Float FIT GRIP EVOL Performance fork, SRAM GX Eagle drivetrain, SRAM DB8 brakes, ONOFF Pija seatpost (between 125 and 200 mm depending on size) and Maxxis Minion DHF/DHR II 2.6" EXO+ tyres.

MONDRAKER CRUSHER BIKE MAIN FEATURES:

• Wheels: 29.
• 12-speed.
• Shimano motor.
• 720wh battery.
• Excursion: 160 mm.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Crafty Stealth Air Carbon triangolo anteriore, Zero Suspension System ottimizzato per e-Bike, escursione di 150 mm, Forward Geometry, batteria interna non rimovibile, perno posteriore Boost 12x148 mm, tubo sterzo conico, link superiore monoblocco, sistema passacavi interno HHG, cuscinetti sigillati con capacità di carico MAX, assi maggiorati da 17 mm, sensore di velocità forcellino integrato, esclusivi coperchi motore in plastica
• Motor: Shimano STEPS EP801
• Display: Shimano EN600
• Battery: Simplo internal 720Wh G3
• Charger: Shimano
• Fork: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset
• Shock: Fox Float-X LV Performance, 205x65mm
• Shfter: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 12v, X-Actuation 1:1
• Shifter command: Sram Trigger NX Eagle, 12v, X-Actuation 1:1, single click
• Sprocket: Sram PG-1210, 11-50D, 12v
• Chain: Sram SX Eagle, 12V, Powerlock
• Chainring: Sram X-Sync 2 Eagle 34D, alloy, narrow-wide, 104 BCD
• Crankarm: Shimano Steps FC-EM600 ebike, 165mm
• Front brake: Sram DB8, 4 pistoni
• Rear brake: Sram DB8, 4 pistoni
• Rotor: Centerline 200mm IS 6 fori / Centerline 200mm IS 6 fori
• Front tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
• Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
• Front hub: Mavic, Boost 15x110mm, IS 6 fori
• Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 fori, HG
• Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Saddle: FIZIK Terra Aidon X5 145mm
• Seatpost: telescopico Onoff Pija interno, diametro 31.6mm, 1X comando remoto lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
• Weight: 24,6 kg

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

010.24362
