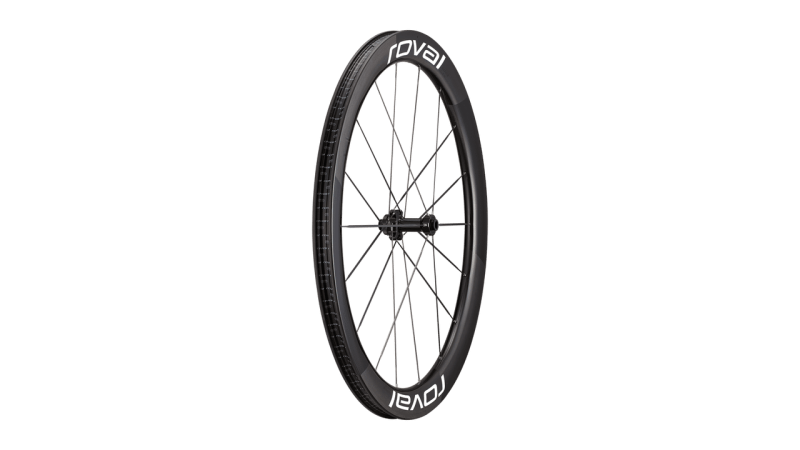

Front Rim

Rapide CLX Team Carbon Clincher, 700c (CR2470)

Front Rim Dimensions

Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm

Rim Construction

Carbon Clincher Hooked

Wheel Size / ETRTO

622 × 21 (700c)

Hole Count

Front: 18H

Tubeless Compatibility

Yes

Insert Compatibility

Yes

Brake Compatibility

Disc (Centerlock)

Valve Length

Roval Tubeless Valve, Alloy 70mm

Front Hub

Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)

Front Hub Bearings

DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)

Front Spokes

Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)

Front Lacing Pattern

Two-Cross / Radial (2:1), Not Tucked

Nipples

Arris MK4 Spoke Nipple Alloy, 6 mm

Approved Tire Widths

24mm-38mm

Max Pressure

Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)

Tire Type

Clincher Tubeless and Clincher Tube Type

Tubeless Tape Width

25mm

Design Tire

RapidAir TLR, 28mm

Front Weight

600g (with valves and tape)

Rear Weight

705g (with valves and tape)

Wheelset Weight

1305g (with valves and tape)

Extras

4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Speed Road Freehub & end Caps (rear wheel only)

E-bike Approved

No

Certifications

ISO 5775-2, UCI Approved

Weight Limit

275 lbs. / 125 kg

Assembly Method

Hand Built

Warranty

Limited Lifetime Warranty
