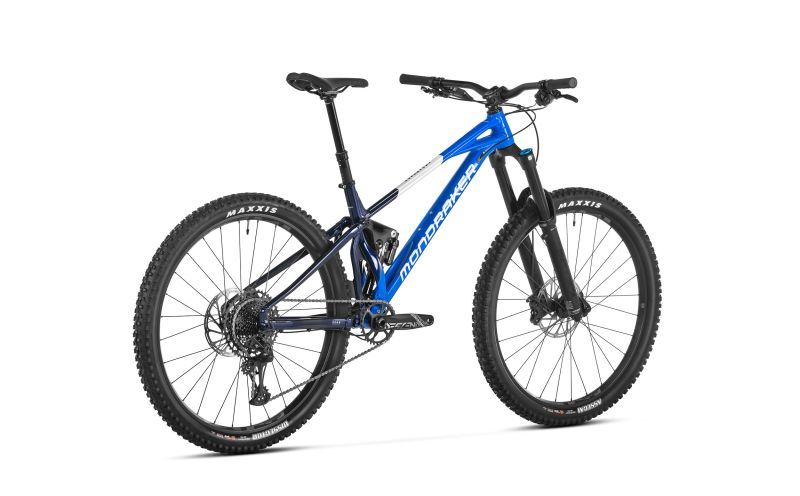

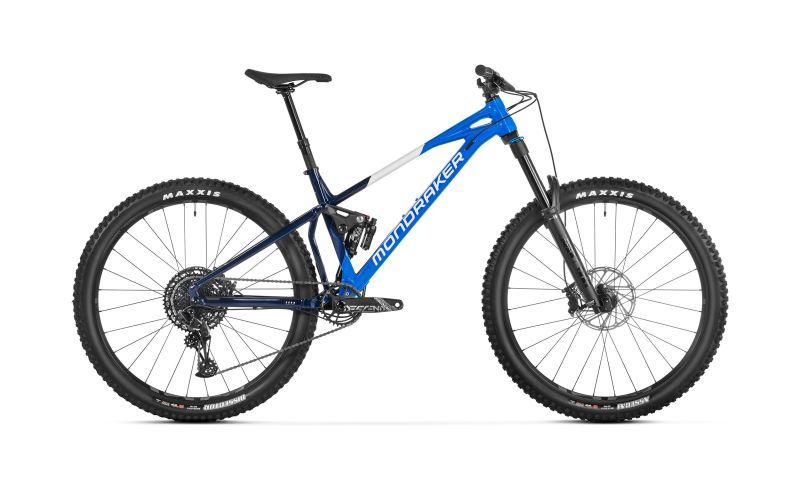

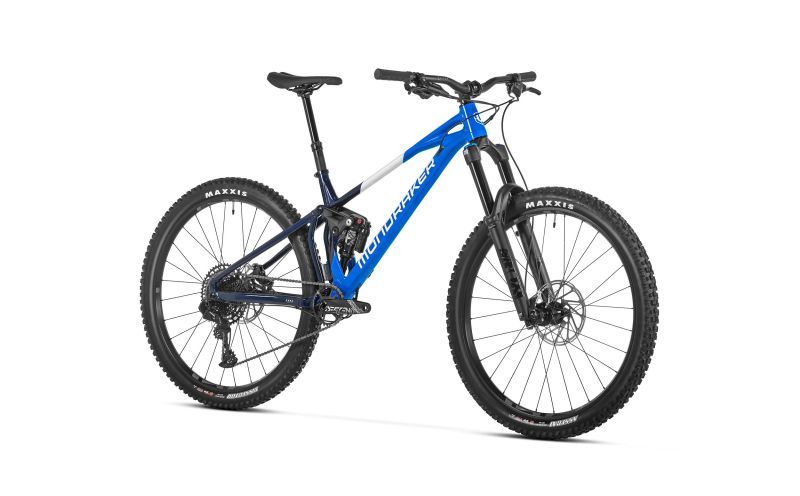

MONDRAKER SUPERFOXY 2 EDITION BIKE

MONDRAKER SUPERFOXY BIKE 2 EDITION

• Sizes

  S: 380 mm / M: 420 mm / L: 470 mm / XL: 510 mm

  Shock

  Fox Float-X LV Performance, 205x65 mm. Adjustments: 2-position compression lever, low-speed rebound, air preload. Upper Trunnion mount, lower bushings 22.2x10 mm

  Shock tuning

  Medium compression, medium rebound, 0.2 air volume spacer

  Fork

  Fox 38 29 Float FIT GRIP RHYTHM, 170 mm, tapered steerer tube, Boost 15x110 mm axle, 44 mm offset. Adjustments: 3 positions with micro-adjust compression, low-speed rebound, air preload

  Headset

  1-1/8" to 1-1/2" tapered ONOFF Saturn headset, sealed ACB bearings, upper 41x30.2x7x45ºx45º, lower 51.9x40x8x45ºx45º

  Stem

  ONOFF Sulphur FG 30 mm 0º, forged 6061 alloy, 31.8 mm bar bore

  Handlebar

  ONOFF Sulphur 1.0 double-butted 6061 alloy, rise: 20 mm, width: 800 mm, 9º backsweep angle, 5º upsweep angle, 31.8 mm bar bore

  Grips

  ONOFF Twin, 1 lock-on, 135 mm

  Seatpost

  Internal telescopic ONOFF Pija, diameter 31.6 mm, 1X remote lever with bearing, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 558x170-200 mm

  Sella

  SDG BEL-AIR 3.0, LPU foam, steel rails

  Front brake

  SRAM DB8, 4-piston caliper, one-piece Centerline 200 mm brake disc with 6 IS bolts, organic pads with steel backing plate

  Rear brake

  SRAM DB8, 4-piston caliper, one-piece Centerline 200 mm brake disc with 6 IS bolts, organic pads with steel backing plate

  Brake levers

  SRAM DB8, tool-adjustable reach, lever pivot bushings

  Rims

  e*thirteen LG1 Enduro, IW30 Hookless, 6069 welded aluminum, 30 mm internal width, tubeless ready, 28 spokes

• Spokes

  Custom e*thirteen Hive black triple-butted alloy, alloy nipples, nipple washers

  Front hub axle

  e*thirteen Boost 15x110 mm, triple seal, finished aluminum, 6 IS bolts

  Rear hub axle

  e*thirteen Superboost 12x157 mm, triple seal, finished aluminum with 6-degree engagement, 6 IS bolts, HG freehub

  Front tire

  Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

  Rear tire

  Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

  Crank arms

  SRAM Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, direct-mount chainring, size S: 170 mm size M: 170 mm size L: 175 mm size XL: 175 mm CL size 56''5

  Crankset

  32T, CNC-machined alloy, X-SYNC 2

  Bottom bracket

  SRAM DUB BSA, sealed bearings, 73 mm, superboost

  Chain

  SRAM SX Eagle, 12s, Powerlock

  Rear derailleur

  SRAM GX Eagle, 12s, direct-mount hanger

  Shifters

  SRAM GX Eagle, 12-speed, Trigger

  Wheels

  e*thirteen LG1 Enduro, IW30 Hookless, 6069, 30 mm internal width, tubeless ready, 28 spokes

  Shift levers

  SRAM GX Eagle, 12s
