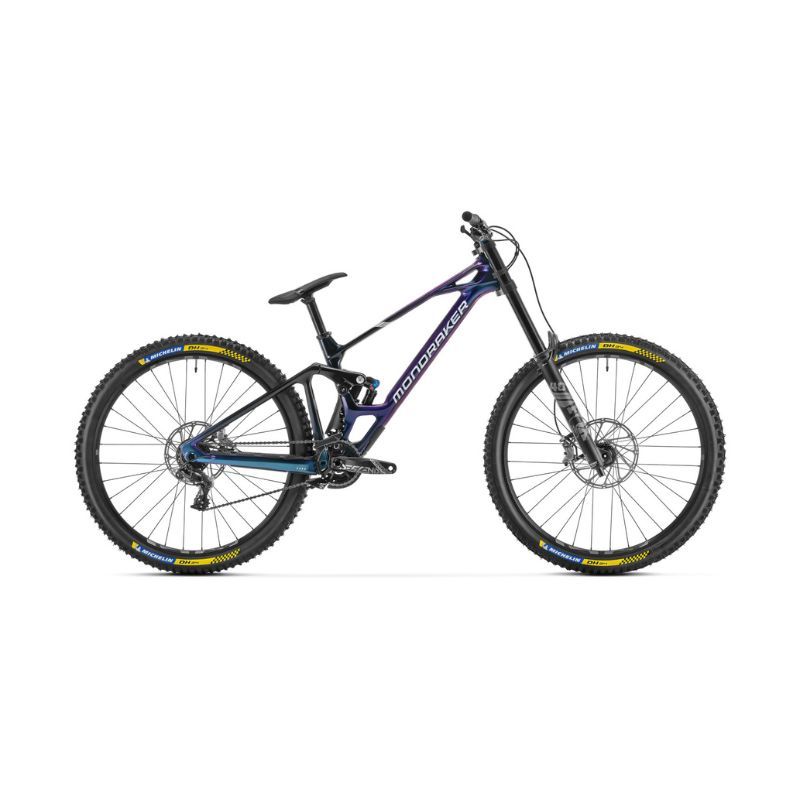

MONDRAKER SUMMUM CARBON R BIKE

The MONDRAKER SUMMUM CARBON R is the perfect choice for cyclists seeking high-level performance and an exceptional riding experience. With its cutting-edge technology and innovative design, this mountain bike is designed to tackle challenging terrains and deliver superior performance on every mountain biking adventure.

MONDRAKER SUMMUM CARBON R BIKE KEY FEATURES:

• Lightweight and durable carbon frame that offers superior handling and increased durability.
• Fox DHX2 Performance Elite rear suspension, 225x70mm, ensuring excellent shock absorption and smooth riding.
• Progressive geometry that ensures stability and control on technical terrains and challenging descents.
• High-quality components, including Sram GX DH 7s transmission and SRAM Code hydraulic disc brakes, for reliable and responsive performance.
• 29-inch wheels for increased traction and the ability to overcome obstacles with ease.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
• SIZES: S / M / L / XL 29".
• REAR SHOCK: Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings.
• REAR SHOCK ADJUSTMENT: ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs.
• FORK: Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload.
• HEADSET: Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm.
• STEM: Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer.
• HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides.
• FRONT BRAKE: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• RIMS: e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes.
• SPOKES: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
• REAR HUB: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub.
• FRONT TIRE: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead.
• REAR TIRE: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead.
• CRANKSET: Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5.
• CHAINRING: 34T, steel, X-SYNC.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 83mm.
• CHAIN: Sram PC1110 11s, Powerlock.
• FRONT DERAILLEUR: E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider.
• REAR DERAILLEUR: Sram GX DH, 7s, medium cage, X-actuation 1:1.
• SHIFT LEVER: Sram trigger GX DH 7s, X-actuation 1:1.
• REAR CASSETTE: Sram PG 720 11-25T, 7s.
• DERAILLEUR HANGER: Mondraker M075.
• WEIGHT: 16.9kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, GEAR SHIFTER, AND BRAKES ARE ALREADY MOUNTED
