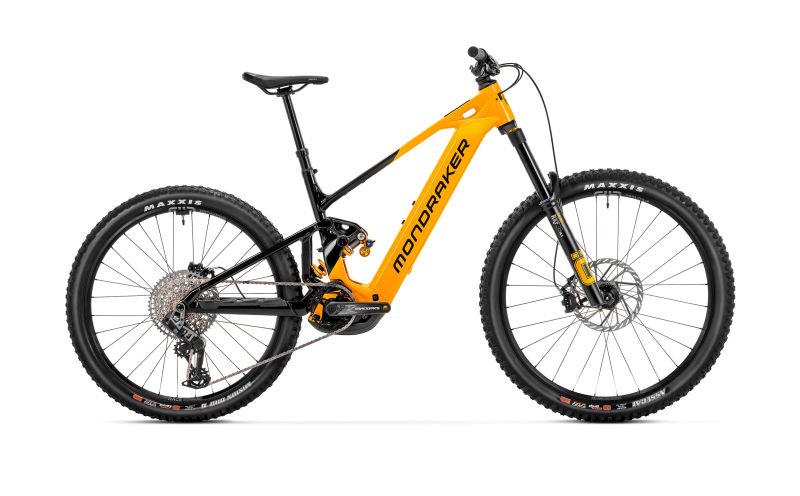

MONDRAKER LEVEL XR 2026 BIKE

Level XR: the alliance with Öhlins.

The flagship of the Level series stands out for its collaboration with the Swedish brand Öhlins, a guarantee of maximum control and adjustability. This model is equipped with the RXF 38 fork and the TTX22 M.2 shock. The components include SRAM Maven Silver brakes, SRAM GX Eagle AXS T-Type drivetrain with 10-52 gearing and 34T chainring. Like the other builds, it comes with Maxxis Assegai 29x2.6'' front and Minion DHR II 27.5x2.6'' rear tires. An exclusive detail is the ONOFF S9 800 mm carbon handlebar.

MONDRAKER LEVEL XR 2026 MAIN FEATURES:

• Wheel size: 29/27.5
• Gears: 12
• Motor: Bosch
• Battery (Wh): 800
• Travel (mm): 180

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Level 6061 Alloy Stealth Evo, Zero Suspension System optimized, Mullet, 170 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece upper link, HHG internal cable routing, MAX capacity sealed bearings, oversized 17 mm axles, exclusive plastic motor covers
• Motor: Bosch Drive Unit Performance Line CX, Smart System, 100 Nm
• Display: Purion 400 / Bosch Mini Remote
• Battery: Bosch PowerTube 800Wh
• Charger: Bosch
• Fork: Öhlins RXF 38 M.3 29, 180 mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110 mm axle, 44 mm offset. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
• Shock: Öhlins TTX22M.2 205x65 mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Upper mount Trunnion, lower bushings 30x8 mm
• Rear derailleur: SRAM GX Eagle AXS T-Type, 12s
• Front derailleur: N/A
• Shifter: SRAM Eagle AXS Pod MMX, 12s
• Cassette: SRAM XS-1275, 10-52T, T-Type 12s
• Chain: SRAM GX Eagle T-Type, 12s, Powerlock
• Chainring: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
• Crankset: Ebike Race Face Aeffect, all sizes: 160 mm
• Front brake: SRAM Maven Silver, 4-piston caliper 18 and 19.5 mm, one-piece Centerline 220 mm rotor with 6-bolt IS, sintered metal pads with steel backing
• Rear brake: SRAM Maven Silver, 4-piston caliper 18 and 19.5 mm, one-piece Centerline 200 mm rotor with 6-bolt IS, sintered metal pads with steel backing
• Rotors: N/A
• Front tire: Maxxis Assegai 29x2.6 WT, tubeless ready, 3C MaxxGrip compound, DD protection, DH casing, 60x2 TPI, folding bead
• Rear tire: Maxxis Minion DHR II 27.5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120 TPI, folding bead
• Rims: e*thirteen Grappler Race, Hookless welded 6069 aluminum, 30 mm internal width, tubeless ready, 28F spokes front 29", rear 27.5"
• Front hub: e*thirteen Boost 15x110 mm, triple-sealed, finished aluminum, 6-bolt IS
• Rear hub: e*thirteen Boost 12x148 mm, triple-sealed, finished aluminum with 6-degree engagement, 6-bolt IS, XD freehub
• Handlebar: ONOFF S9 1.0 Carbon, 25 mm rise, 800 mm width, 8° backsweep, 5° upsweep, 31.8 mm clamp. Sizes L and XL: 1.5 rise
• Stem: ONOFF S9 30 mm 0°, Full CNC, 31.8 mm clamp
• Saddle: FIZIK Terra Aidon X5 145 mm
• Seatpost: ONOFF Pija internal dropper, 31.6 mm, 1X remote lever with bearing. Size S: 140–115 mm (388–235 mm), size M: 160–135 mm (428–255 mm), size L: 180–155 mm (468–275 mm), size XL: 210–185 mm (528–305 mm)
• Maximum allowed weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY INSTALLED
