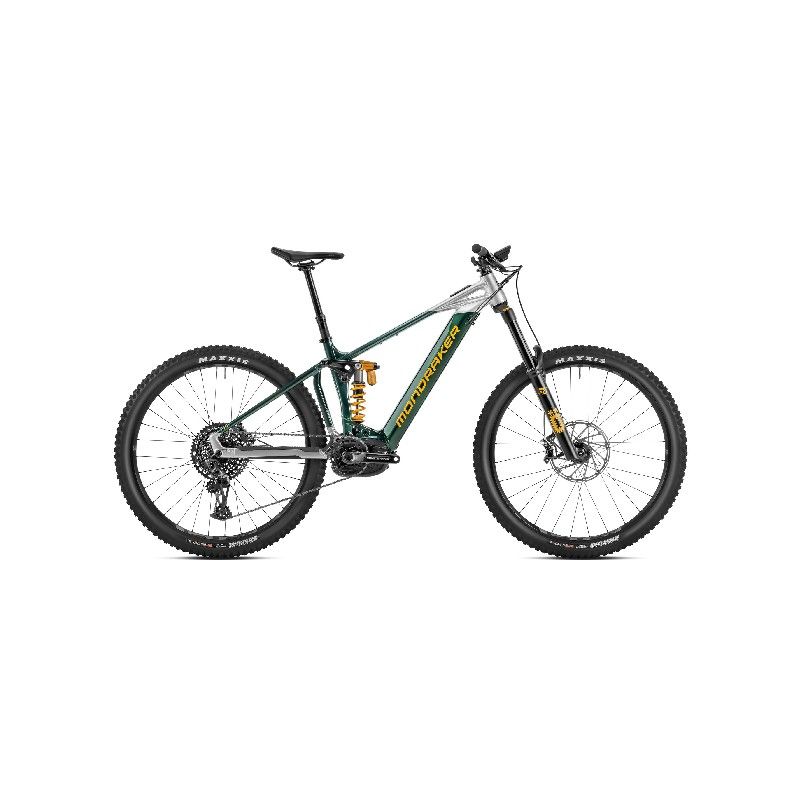

MONDRAKER LEVEL XR 2023 BIKE

The LEVEL XR is the new Mondraker e-mtb launched for the 2023 season. With 180 mm of front travel and 170 mm of rear travel this bike is perfect for super-enduro and all mountain.
The bike mounts the Bosch Performance Line CX G4 Smart System motor, Kiox 300 display, Mini Remote 3-button remote control (with wireless Bluetooth operation) and new System Controller integrated into the top tube.
The 750wh battery allows you to enjoy long hours in the saddle while the RFX38 M.2 fork and TTX22M spring-loaded shock absorbs all shocks from the ground.
The bike mounts SRAM X01 Eagle/GX Eagle drivetrain, e*thirteen E*Spec Plus wheels, SRAM Code RSC brakes and ONOFF components.

MONDRAKER LEVEL XR 2023 BIKE MAIN FEATURES:

• 29" wheels.
• Zero Suspension System.
• Forward Geometry.
• Stealth Alloy frame.
• Bosch Smart System.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• SHOCK: Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings.
• SHOCK SETTINGS: C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs.
• FORK: Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.
• HEADSET: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.
• STEM: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: ONOFF Desert, 1lock-on, 135mm.
• SEATPOST: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm.
• SADDLE: FIZIK Terra Aidon X5 145mm.
• FRONT BRAKE: Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• BRAKE LEVER: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust.
• RIMS: e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes.
• SPOKES: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
• REAR HUB: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts.
• FRONT TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• REAR TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
• CRANKSET: Race Face Aeffect ebike, 165mm.
• CHAINRINGS: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
• CHAIN: Sram GX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFT LEVER: Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click.
• CASSETTE: Sram XG-1275, 10-52T, 12s.
• HANGER: Mondraker M068.
• WEIGHT: 25.8 KG.
• DISPLAY: Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller.
• MOTOR: Bosch Performance Line CX (25km/h) Smart System.
• BATTERY: Bosch Powertube 750Wh.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
