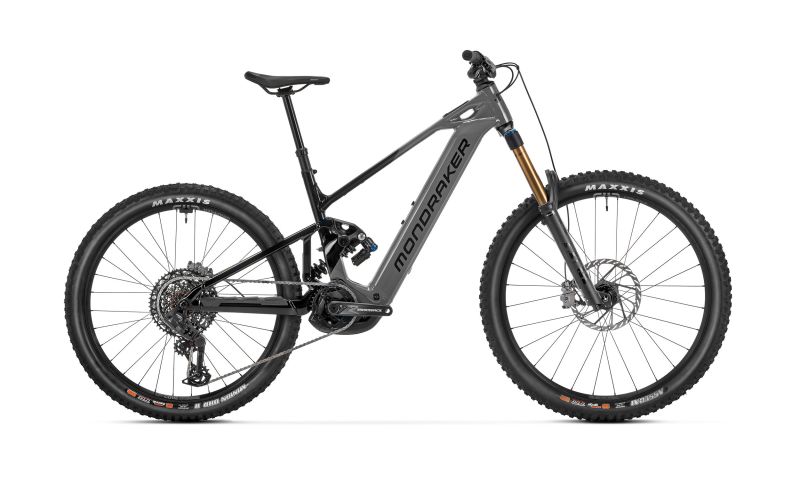

MONDRAKER LEVEL RR 2026 BIKE

Sram AXS and Kashima for those who want more.
Designed for riders seeking an upgrade in exclusivity and performance, the Level RR keeps the same motor and battery as the R model but features a higher-end equipment package. It is equipped with a Fox 38 Kashima Factory fork with Grip X2 cartridge, SRAM Maven Bronze brakes and an electronic SRAM S1000 Eagle AXS T-Type drivetrain, always fitted with a 34T chainring and 10–52 cassette. Tire setup is identical to the Level R.

MONDRAKER LEVEL RR 2026 — key features:

• Wheel Size: 29/27.5
• Speeds: 12
• Motor: Bosch
• Battery (Wh): 800
• Travel (mm): 180

THE BIKE IS DELIVERED PARTLY PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Level 6061 Stealth Evo alloy, optimized Zero Suspension system, mullet configuration, 170 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece upper link, internal HHG cable routing, MAX-capacity sealed bearings, oversize 17 mm axles, exclusive plastic motor covers
• Motor: Bosch Drive Unit Performance Line CX, Smart System, 100 Nm
• Display: Purion 400 / Bosch Mini Remote
• Battery: Bosch PowerTube 800Wh
• Charger: Bosch
• Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 180 mm, tapered steerer, Kabolt Boost 15x110 mm axle, 44 mm offset. Adjustments: high- and low-speed compression, high- and low-speed rebound, air preload
• Shock: Fox DHX2 Performance Elite, 205x65 mm. Adjustments: low-speed compression, low-speed rebound, spring preload. Upper mount: Trunnion, lower bushings 30x8 mm
• Shifter / Drivetrain: SRAM S1000 Eagle AXS T-Type, 12-speed
• Rear Derailleur: N/A
• Shift Controller: SRAM Eagle AXS Pod MMX, 12-speed
• Cassette: SRAM XG-1270, 10–52T, T-Type 12-speed
• Chain: SRAM GX Eagle T-Type, 12-speed, Powerlock
• Chainring: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Crankset: E-bike Race Face Aeffect, all sizes: 160 mm
• Front Brake: SRAM Maven Bronze, 4-piston caliper with 18 and 19.5 mm pistons, one-piece CenterLine 220 mm rotor with 6-bolt IS fitment, sintered metal pads with steel backing
• Rear Brake: SRAM Maven Bronze, 4-piston caliper with 18 and 19.5 mm pistons, one-piece CenterLine 200 mm rotor with 6-bolt IS fitment, sintered metal pads with steel backing
• Rotors: N/A
• Front Tire: Maxxis Assegai 29x2.6WT, tubeless ready, 3C MaxxGrip compound, DoubleDown protection, DH carcass, 60x2 TPI, folding bead
• Rear Tire: Maxxis Minion DHR II 27.5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DoubleDown protection, 2×120 TPI, folding bead
• Rims: e*thirteen Grappler Core, hookless 6069 welded aluminum, 30 mm internal width, tubeless ready, 28 front spokes for 29", 28 rear spokes for 27.5"
• Front Hub: e*thirteen Boost 15x110 mm, triple-sealed, machined aluminum, 6-bolt IS
• Rear Hub: e*thirteen Boost 12x148 mm, triple-sealed, machined aluminum with 6-degree engagement, 6-bolt IS, XD freehub
• Handlebar: ONOFF S6 1.0 7050 alloy, rise 25 mm, width 800 mm, 8° backsweep, 5° upsweep, bar bore 31.8 mm. Sizes L & XL: 1.5 mm additional rise
• Stem: ONOFF S6 30 mm 0°, forged 6061 + CNC, bar bore 31.8 mm
• Saddle: FIZIK Terra Aidon X5 145 mm
• Dropper Post: ONOFF Pija internal dropper, 31.6 mm diameter, 1X remote lever with bearing. Lengths by size: S 140–115 mm (388–235 mm), M 160–135 mm (428–255 mm), L 180–155 mm (468–275 mm), XL 210–185 mm (528–305 mm)
• Maximum Allowed Rider Weight: N/A
• Weight: N/A

*Weights and specifications based on production models. Actual specifications and weights may vary without notice.

*PRO-M STORE OFFERS FREE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DRIVETRAIN AND BRAKES ARE ALREADY INSTALLED
