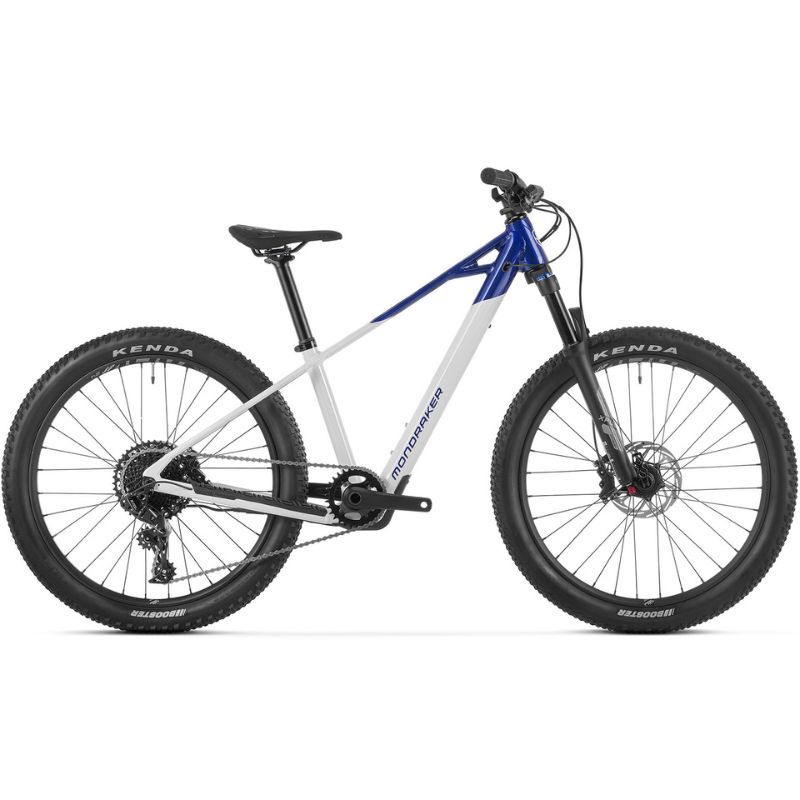

MONDRAKER KIDS BIKE PLAY 24

MONDRAKER PLAY 24 KIDS BIKE

MONDRAKER KIDS BIKE PLAY 24

The Mondraker Play 24 2026 is an electric mountain bike for kids, designed to deliver comfort, performance, and safety. Equipped with a hydroformed 6061 aluminum frame with integrated battery, X-Fusion Velvet RL air fork, and Mahle-Ebikemotion X-35 motor, it combines modernity with reliability. Its youth-specific design allows young riders to pedal safely and confidently on any terrain.

MONDRAKER PLAY 24 MAIN FEATURES:

• 24” wheels
• Travel: 100mm
• Motor: MAHLE X35
• Battery: 250Wh
• Frame: Alloy

TECHNICAL SPECIFICATIONS

• Frame

  Play 24 6061 Stealth Evo alloy, hydroformed tubing, fully integrated non-removable internal battery, tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible

  Sizes

  One size: 320 mm

• Fork

  X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100 mm axle, 32 mm alloy stanchions, 41 mm offset. Adjustments: lockout, rebound, air preload

  Headset

  Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom

• Stem

  Onoff S3 30mm 0°, 6061 forged alloy, 31.8 mm clamp

  Handlebar

  MDK XC 1.0, 6061 alloy, rise: 25 mm, width: 580 mm, backsweep 9°, upsweep 5°, 31.8 mm clamp

• Grips

  Onoff Beehive, 1lock-on, 135 mm

  Seatpost

  MDK XC 0-R, 6061 T6 alloy, diameter 31.6 mm, length 300 mm

• Saddle

  SDG Fly JR

  Front Brake

  Sram DB4, 4-piston caliper, Onoff CNC two-piece 160 mm IS 6-bolt rotor, organic pads with steel backing plate

• Rear Brake

  Sram DB4, 4-piston caliper, Onoff CNC two-piece 160 mm IS 6-bolt rotor, organic pads with steel backing plate

  Brake Levers

  Sram DB6, reach adjustment with tools, lever pivot bushings

• Rims

  MDK-HP1 24 TLR, 25 mm inner width, tubeless ready, 32 spokes

  Spokes

  CN stainless steel round

• Front Hub

  DA210FS02, 15x100 mm, cone & cup bearings, 6-bolt IS

  Rear Hub

  Mahle-Ebikemotion X-35, HG freehub

• Front Tire

  Kenda Booster 24x2.4 single compound 30TPI, wire bead

  Rear Tire

  Kenda Booster 24x2.4 single compound 30TPI, wire bead

• Crank Arms

  Samox steel DM 28T, 127 mm

  Chainring

  30T, steel

• Bottom Bracket

  BSA, 73 mm

  Pedals

  SDG Slater JR

• Chain

  Sram PC1110 11s, Powerlock

  Rear Derailleur

  Sram NX, 11s, long cage, X-actuation 1:1

• Shifters

  Sram NX 11s, X-actuation 1:1

  Cassette

  Sram PG 1130 11-42T, 11s

• Derailleur Hanger

  Mondraker M077

  Weight (without pedals)

  15.1 kg

• Display

  Mahle-Ebikemotion

  Motor

  Mahle-Ebikemotion X-35

• Battery

  Mahle-Ebikemotion internal 250Wh
