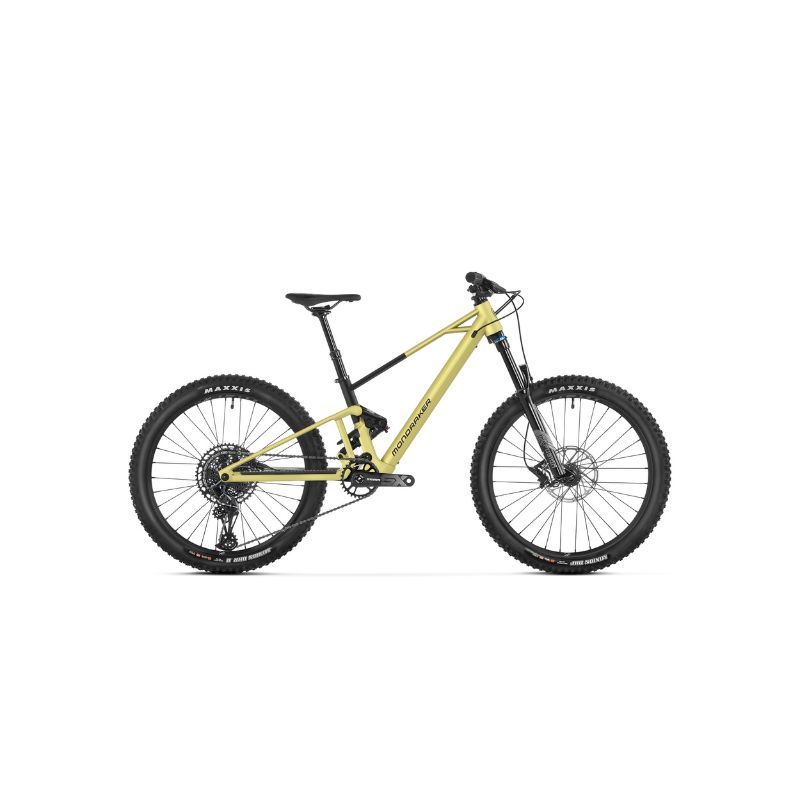

MONDRAKER KIDS BIKE F-TRICK 24

The brand-new Mondraker F-Trick full-suspension range has so much in common with high-end adult bikes that it’s hard to call it a kids’ bike. Advanced geometry, updated Zero suspension system, 120 and 130 mm travel, dropper posts, 12x148 mm thru-axle, 30 mm stanchions, Sram brakes and 2.4” tires. Enough to leave you breathless.

The F-Trick 24" is perfect for kids aged 8 to 11 (135-155 cm).

MONDRAKER KIDS BIKE F-TRICK 24 MAIN FEATURES:

• Wheel Size: 24”
• Gears: 12

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame
  • F-Trick 26 Alloy 6061 Stealth Evo
  • Hydroformed tubing
  • Zero suspension system
  • Travel: 130 mm
  • One-piece bolted upper link
  • Rear axle: 12x148 mm
  • UDH
  • Bottom bracket: BSA 73 mm
  • Internal cable routing: HHG
  • Dedicated 1x drivetrain design
• Fork
  • X-Fusion Slant RC 26
  • Travel: 120 mm
  • Air spring
  • Tapered steerer tube
  • Axle: 15x100 mm
  • 34 mm aluminum stanchions
  • Offset: 41 mm
  • Adjustments: lockout, rebound, air preload
• Shock
  • X-Fusion 02PRO R
  • Size: 165x42.5 mm
  • Upper trunnion mount
  • Lower bushings: 50x8 mm
  • Adjustments: low-speed rebound, air preload
• Drivetrain
  • Rear derailleur: Shimano Deore M6100, SGS, Shadow+, 12s
  • Front derailleur: N/A
  • Shifter: Shimano Deore M6100, RapidFire Plus, 12s
  • Cassette: Shimano Deore M6100, 10-51T Hyperglide+, 12s
  • Chain: Shimano Deore M6100, 12s, Quick-link
  • Chainring: 30T, steel
  • Crankset: Prowheel DMJ-CR094S-TT, direct mount, 150 mm
• Brakes
  • Front brake: Shimano MT501, IS 6-bolt mount
  • Rear brake: Shimano MT501, IS 6-bolt mount
  • Calipers: resin pads
  • Rotors: N/A
  • Rotor specification mentioned (if applicable): RT 56 180 mm
• Wheels & Tires
  • Rims: MDK-XP1 24 TLR, 25 mm internal width, 32 spokes, tubeless ready
  • Front hub: DA210FS02, 15x100 mm, cup & cone bearings, IS 6-bolt
  • Rear hub: DA207R, 12x148 mm, cup & cone bearings, IS 6-bolt, HG freehub
  • Front tire: Maxxis Minion DHF 24x2.4, Tubeless Ready, 3C MAXX TERRA, EXO, 60 TPI, folding bead
  • Rear tire: Maxxis Minion DHR II 24x2.3, Tubeless Ready, EXO, 60 TPI, folding bead
• Components
  • Handlebar: MDK XC 1.0, Alloy 6061, rise 25 mm, width 680 mm, 9º backsweep, 5º upsweep, 31.8 mm clamp
  • Stem: Onoff S3 30 mm 0º, forged Alloy 6061, 31.8 mm clamp
  • Saddle: SDG Fly JR
  • Seatpost: X-Fusion Manic LC internal, 31.6 mm diameter, 1X remote lever, 100 mm travel
• Weight & Limits
  • Weight: 13.6 kg
  • Maximum rider weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY INSTALLED
