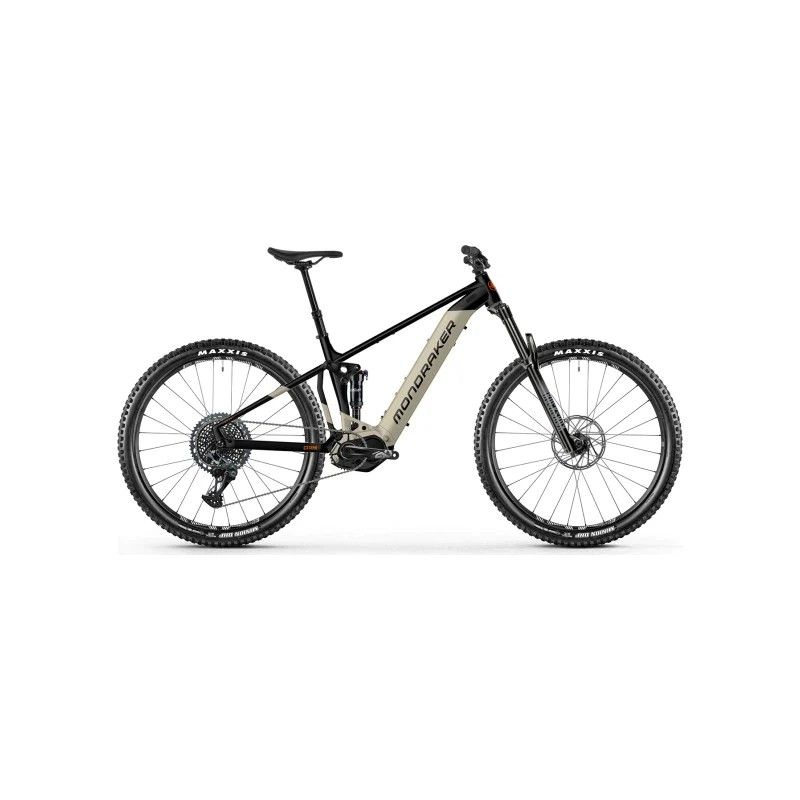

MONDRAKER DUSK BIKE

The MONDRAKER DUSK BIKE is the e-mtb's little sister to the Dusk RR but with the same capabilities as the bigger one. The standard 630wh battery can reach maximum power of 990wh with an optional range-extender. With 990wh you can ride for many hours, easily climb even the toughest peaks, enjoy the best views ever, and most importantly, be able to tackle more descents than anyone else on the way back.
This e-mtb is perfect for enduro riding and is designed with Mondraker's best technologies such as the ZERO SUSPENSION system and the FORWARD GEOMETRY with 160mm front and 150mm rear travel.

MONDRAKER DUSK BIKE MAIN FEATURES:

• 29" wheels.
• Zero suspension system.
• Forward Geometry.
• Stealth Alloy frame.
• Shimano STEPS EP800 motor.
• 630wh battery extendable via range extender 990 Wh.
• 160mm front travel.
• 150 mm rear travel.
• Forward geometry.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.*Optional external battery.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• SHOCK: RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings.
• FORK: RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload.
• HEADSET: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.
• STEM: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore.
• HANDLEBAR: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: ONOFF Diamond, 1lock-on, 135mm.
• SEATPOST: ONOFF Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm.
• SADDLE: FIZIK Terra Aidon X5 145mm.
• FRONT BRAKE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• REAR BRAKE: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• BRAKE LEVER: SRAM G2 R, tool-free reach adjust.
• RIMS: MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes.
• SPOKES: CN round stainless steel.
• FRONT HUB: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts.
• REAR HUB: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts.
• FRONT TIRE: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead.
• REAR TIRE: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead.
• CRANKSET: FSA, 165mm.
• CHAINRINGS: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
• CHAIN: SRAM SX Eagle, 12s, Powerlock,
• REAR DERAILLEUR: SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1.
• SHIFT LEVER: SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click.
• CASSETTE: SRAM PG-1210, 11-50T, 12s.
• DERAILLEUR HANGER: Mondraker M068.
• WEIGHT: 23.9 KG.
• DISPLAY: Shimano STEPS E8000.
• MOTOR: Shimano STEPS EP800.
• BATTERY: Simplo internal 630Wh.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
