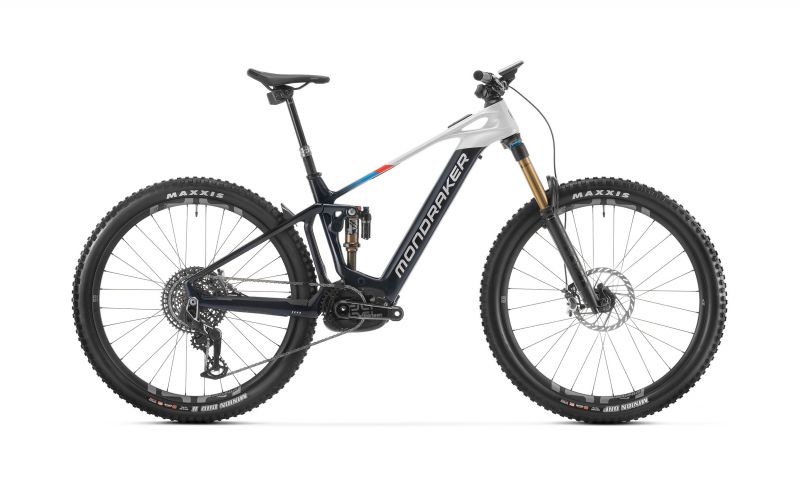

MONDRAKER CRAFTY CARBON RR SL 2 EDITION BIKE

The brand new CRAFTY CARBON RR SL by Mondraker brings incredible power to explore more trails through a combination of innovative design and exceptional performance. With its lightweight and durable carbon frame, this mountain bike is ready to offer you an unparalleled riding experience. Its sleek midnight blue color adds an extra touch of style as you venture onto the most challenging trails.

MONDRAKER CRAFTY CARBON RR SL 2 EDITION BIKE KEY FEATURES:

• Lightweight and durable carbon frame for excellent maneuverability and durability.
• Zero rear suspension system with 150mm Fox technology for excellent shock absorption.
• 12-speed Shimano transmission for precise and smooth shifting.
• 29-inch wheels for increased stability and control on rough terrain.
• Hydraulic disc brakes for powerful and reliable stopping power.

THE BIKE COMES PREASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• REAR SHOCK: Fox Float X Factory Kashima EVOL 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings.
• REAR SHOCK ADJUSTMENT: Medium compression, Medium rebound, 0.2 volume spacer.
• FORK: Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload.
• HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
• STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm.
• SADDLE: FIZIK Terra Aidon X5 145mm.
• FRONT BRAKE: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• BRAKE LEVERS: Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust.
• RIMS: e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes.
• SPOKES: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
• REAR HUB: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
• REAR TIRE: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• CRANKSET: E.13 TRS Race carbon ebike, 165mm.
• CHAINRING: Sram T-Type 34T, steel, narrow-wide, 104 BCD.
• CHAIN: Sram XX Eagle T-Type, 12s, Powerlock.
• REAR DERAILLEUR: Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s.
• SHIFT LEVERS: Sram Eagle AXS Pod MMX, 12s.
• REAR CASSETTE: Sram XS-1297, 10-52T, T-Type, 12s.
• WEIGHT: 23.3 KG.
• DISPLAY: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller.
• MOTOR: Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM.
• BATTERY: Bosch Powertube 750Wh.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
