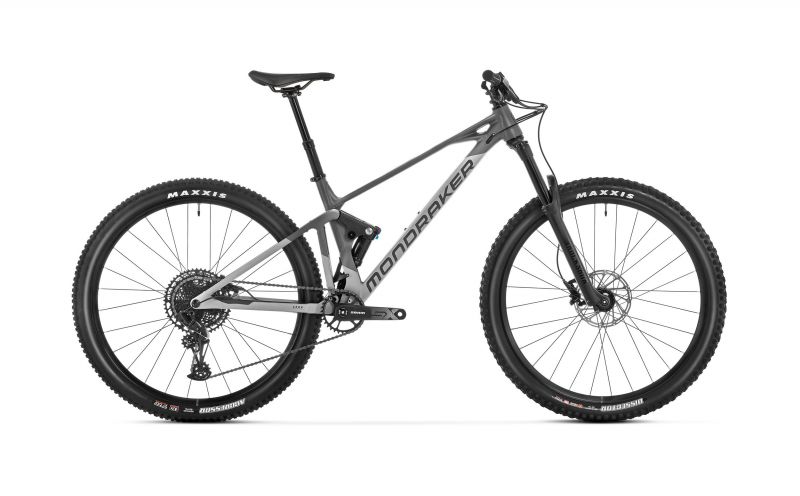

MONDRAKER BIKE RAZE EDITION 2 2024

Ideal for those looking for a complete bike at an affordable price, the RAZE is the trail bike that allows you to enjoy the best performance thanks to Mondraker's exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY, and ZERO SUSPENSION SYSTEM. The RAZE shares the same philosophy as other models in the range, both in carbon and aluminum, to exploit both climbing and descending with its great capabilities in both situations. With 150mm of front travel and 130mm at the rear, you'll be surprised by the versatility and fun it offers. It's a perfect bike for any situation. The total bike.

MONDRAKER BIKE RAZE EDITION 2 2024 MAIN FEATURES

• Alloy Stealth Evo
• Forward Geometry
• Zero Suspension System

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Raze 29 Alloy 6061 Stealth Evo, hydroformed tubes, Zero Suspension System, 130mm travel, Forward Geometry, monoblock upper link, Boost 12x148mm rear axle, tapered head tube, BSA 73mm bottom bracket, dedicated 1x transmission design, internal routing for telescopic seat post, sealed bearings with MAX load capacity, ISCG 05
• Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
• Shock: Fox Float EVOL Performance, 205x57.5mm. Settings: compression in 2 positions (Open/Locked), rebound, air preload. Trunnion upper mount, lower bushings 25x8mm
• Shock Adjustment: Light compression, light rebound, 0.6 air volume spacer
• Fork: RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered head tube, Boost 15x110mm axle, 35mm steel outer tubes, 44mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload
• Headset: Tapered head tube 1-1/8" to 1-1/2" ONOFF Saturn, sealed ACB bearings, upper 41x30.2x7x45ºx45º, lower 51.9x40x8x45ºx45º
• Handlebar Stem: ONOFF Sulphur FG 30mm 0º, forged alloy 6061, 31.8mm barbore
• Handlebar: ONOFF Sulphur 1.0 alloy 6061 double thickness, rise: 20mm, width: 800mm, backsweep 9º, upsweep 5º, 31.8mm barbore
• Grips: ONOFF Twin, 1lock-on, 135mm
• Seatpost: Internal telescopic ONOFF Pija, diameter 31.6mm, 1X remote lever with bearing, size S: 405x95-125mm, size M: 458x120-150mm, size L: 498x140-170mm, size XL: 558x170-200mm
• Saddle: Mondraker MDK Series, SRX, steel rails
• Front Brake: SRAM Level T, 2-piece caliper, Centerline 180mm monoblock brake disc with 6-bolt IS, organic pads with steel support
• Rear Brake: SRAM Level T, 2-piece caliper, Centerline 180mm monoblock brake disc with 6-bolt IS, organic pads with steel support
• Brake Levers: SRAM Level T, Direct Link actuation, tool-free reach adjustment, lever rotation bushings
• Rims: Mavic CrossRide 29 Boost, internal width 30mm, tubeless ready, 28 spokes
• Spokes: 28 round j-bend stainless steel spokes Mavic
• Front Hub Axle: Mavic Boost 15x110mm, sealed bearings, 6-bolt IS
• Rear Hub Axle: Mavic ID360 freehub technology, Boost 12x148mm, 6-bolt IS, HG freehub
• Front Tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear Tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Crankset: SRAM SX Eagle, Boost, DUB axle, direct mount chainring, size S: 170mm, size M: 170mm, size L: 175mm, size XL: 175mm, CL 52
• Chainring: 32T, steel, X-Sync 2
• Bottom Bracket: SRAM DUB BSA, sealed bearings, 73mm
• Chain: SRAM SX Eagle, 12s, Powerlock
• Rear Derailleur: SRAM SX Eagle, roller bearing clutch type 3 technology, cage lock, 1x12s, X-Actuation 1:1
• Shift Levers: SRAM SX Eagle, 12s, X-Actuation 1:1
• Cassette: SRAM PG-1210, 11-50T, 12s
• Rear Derailleur Hanger: SRAM UDH
• Weight without Pedals: 15.9 kg

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED

ARTICLE CODE: 010.24090 (Size M; Color: Fog Grey)
