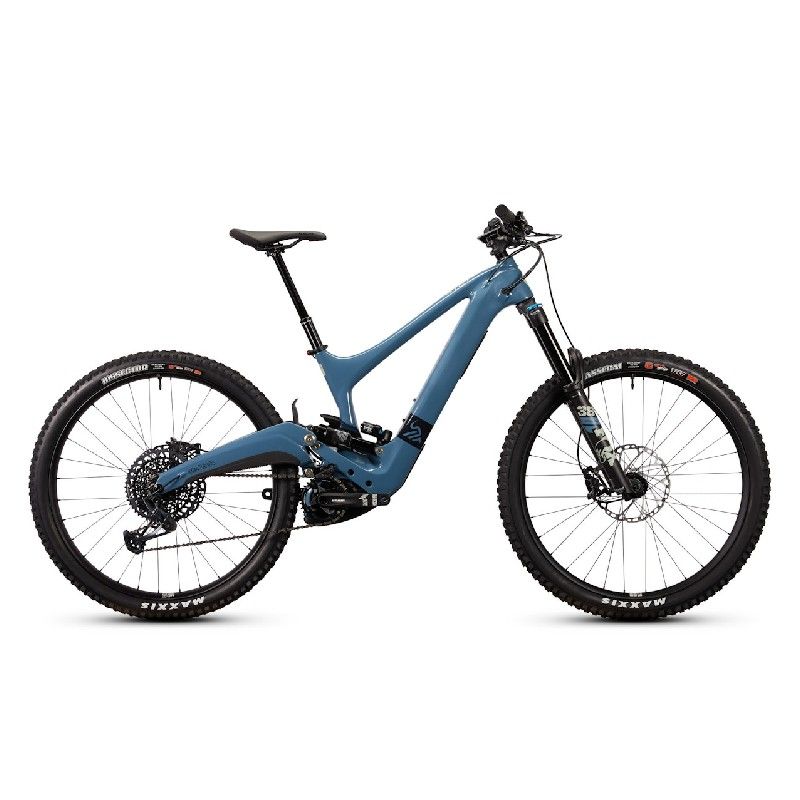

IBIS OSO GX BIKE

The IBIS OSO GX BIKE offers performance, speed and smoothness on any terrain. The frame is carbon fiber, and the Oso is the first Ibis bike with dw-link suspension, 155 mm rear travel, 170 mm front travel and Bosch Performance line CX motor.
It is an enduro e-mtb with a long wheelbase, 64° head angle (inspired by Ripmo) and specially designed seating areas for those who pedal the bike in order to allow all riders to tackle climbs in comfort without wasting a single watt.
The Oso large and extra large frames are built on 29-inch wheels, while the small and medium frames mount mixed wheels and shorter chainstays. In this way, the Oso never feels bulky. In fact, it's pretty darn easy to handle.
The bike mounts the Bosch Performance CX motor with quiet and powerful 85 NM drive unit, which offers the most natural acceleration since the invention of gravity.
The bike mounts 750wh battery for medium to XL sizes and 625wh battery for smaller sizes. The Oso is designed and built to go anywhere and still have enough power to get home.
While it has a slightly different look the Upper Link suspension on this bike is still Dw-link which means it offers all the traction and efficiency you'd expect from an Ibis, but with a more sustained leverage curve to cope with all the demands of a full power e-bike.

IBIS OSO GX BIKE MAIN FEATURES:

• 170 mm front travel.
• 155 mm rear travel.
• Sizes L/XL 29" wheels.
• S/M sizes mixed wheels.
• Dw-Link suspension.
• Bosch Performance CX motor with quiet and powerful 85 NM drive unit.
• 750 wh battery for sizes M to XL.
• 625 wh battery for smaller sizes.

PLEASE NOTE: Sizes L/XL 29" wheels / Sizes S/M mixed wheels. M/XL sizes 750 wh battery / Small sizes: 625 wh battery.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FORK: Fox Performance Series, Float 38, 170mm, 44mm offset, 29", 110x15mm.
• SHOCK: Fox Performance Elite Series, X2, 205x60mm.
• MOTOR: Bosch Performance Line CX.
• WHEELS: Blackbird Send I/ Send II, Aluminium, Ibis Hubs, SM-MD: F - 29”/R - 27.5”, LG-XL: F/R - 29”.
• TIRES: Front: Maxxis Assegai, 29x2.5", 3C Maxxgrip, Double Down, TR, WT; Rear: Maxxis Aggressor, 29x2.5", 3C Maxxgrip, Double Down, TR, WT
  Size SM–MD comes with a 27.5x2.5" rear tire.
• BRAKES: Shimano XT M8120, 4 piston.
• ROTOR: Shimano SM-RT66, 220mm.
• CRANKS: SRAM EX1 E-Crank, 32T ring, Ibis spider.
• REAR DERAILLEUR: SRAM GX Eagle.
• SHIFT LEVER: SRAM GX Eagle.
• CASSETTE: SRAM GX, XG 1275, 10-52.
• CHAIN: SRAM GX Eagle.
• CHAINGUIDE: Ibis Top Guide.
• HEADSET: Cane Creek 40 ZS44/ZS56.
• GRIPS: Lizard Skin Charger Evo.
• HANDLEBAR: Ibis Carbon Hi Fi, 31.8mm, 800mm.
• STEM: Ibis 31.8mm / S/M: 40mm, L/XL: 50mm.
• SEATPOST: Bike Yoke Revive Dropper/ S: 125mm, M: 160mm, L: 185mm, XL: 213mm. Note there is a 250lb rider weight limit on this post.
• SADDLE: SDG Bel-Air, V3.
• MOTOR: Bosch Performance Line CX.
• BATTERY: Bosch 750 Wh Powertube (M/L/XL), 625 Wh Powertube (S).
• CHARGER: Bosch Smart System Charger.
• DISPLAY: Bosch Kiox 300.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

IB-OSO-M-U
