WOLF TOOTH B-RAD MOUNTING BASE

The WOLF TOOTH B-RAD MOUNTING BASE is the foundation on which the various accessories can be mounted and can be installed on any frame with bottle-holder holes with 64 mm wheelbase (universal standard used on all modern frames).

WOLF TOOTH B-RAD MOUNTING BASE MAIN FEATURES:

• 6061-T6 aluminium base.
• Complete with 18-8 stainless steel screws and neoprene backing with clamps (only on B-RAD 3 and 4).
• B-RAD2 weight: 27gr.
• B-RAD3 weight: 41gr.
• B-RAD4 weight: 75gr.
• Maximum permissible load: 1,700gr.
• Tightening: 3-4 NM.

B-RAD2: Base with 2 holes and double mounting slot. This is the smallest base available and is ideal for moving the water bottle to a more convenient position on full frames or when using, for example, panniers attached to the frame; otherwise it can be used to install other B-Rad accessories on an unused set of water bottle holder holes.

B-RAD3: Base with three mounting slots and four threaded holes. The most common use is to install the bottle cage on the most forward holes, with a second B-Rad accessory positioned immediately behind. It fits perfectly into the bottle cage holes positioned under the down-tube. Comes with clamps (it has special slots for attaching them), and a neoprene pad for secure mounting.

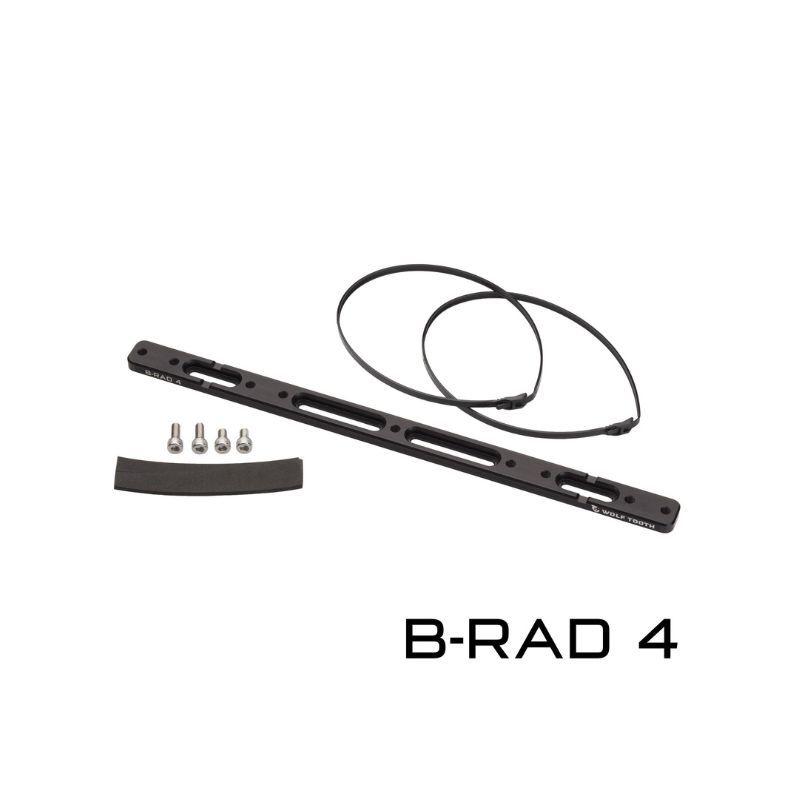

B-RAD4: Mounting base with 4 slots and no less than 9 threaded holes, to offer maximum flexibility and loading capacity in cycling and bikepacking. It is long enough to accommodate two bottle cages (one behind the other) or various B-Rad accessories. It comes with clamps (it has special slots for attaching them), and a neoprene pad for secure mounting.
