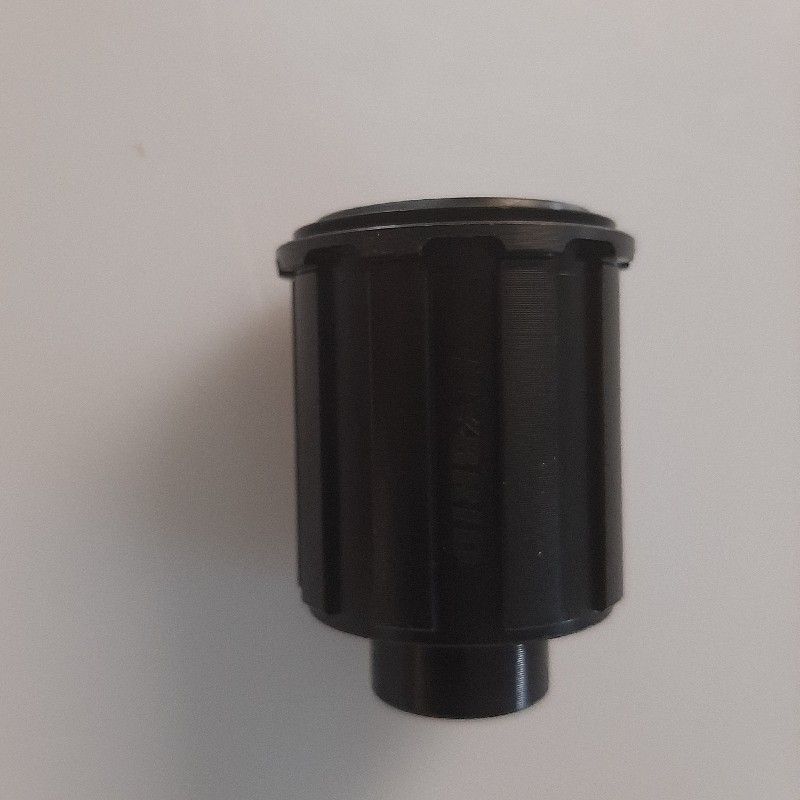

ROTOR DT SWISS SHIMANO 10/11S FREEHUB BODY

DT Swiss's Shimano MTB Hybrid Ratchet System freehub body conversion kit is made for E-MTBs. With this body, you can convert wheels and hubs to the standard Shimano MTB 8-/9-/10-/11-speed freehub. To cope with the high torques generated by modern E-MTB units, all Hybrid freewheel bodies are made of steel and provide an extremely strong support for each cassette. All ball bearings in the hubs are oversized to withstand the high loads and perform flawlessly under the harshest conditions. Hybrid-specific, hardened 24t steel pawls offer maximum durability, have a low engagement angle, and provide a perfect ride.

ROTOR DT SWISS SHIMANO 10/11S FREEHUB BODY MAIN FEATURES:

• Use: E-Bike / All Mountain.
• Freewheel Body: Shimano MTB.
• Speed: 10/11.
• Freewheel body type: DT Swiss Ratchet System (24 t).
• Freewheel body material: Steel.
• Bearings: 2 ball bearings, 6902.
• Gaskets: external, inner ring.

COMPATIBLE WITH:

WHEELS

12 x 148 mm:
- HXC 1200 SPLINE
- HX 1501 SPLINE ONE
- H 1700 SPLINE

HUBS

- 240s Classic HYBRID DB 6 holes disc.
- 350 Classic HYBRID DB 6-hole disc.

Conversion from 12 x 142 mm to 12 x 148 mm is not possible with this kit.

ITEM NUMBER

HWYABX00S5569S
