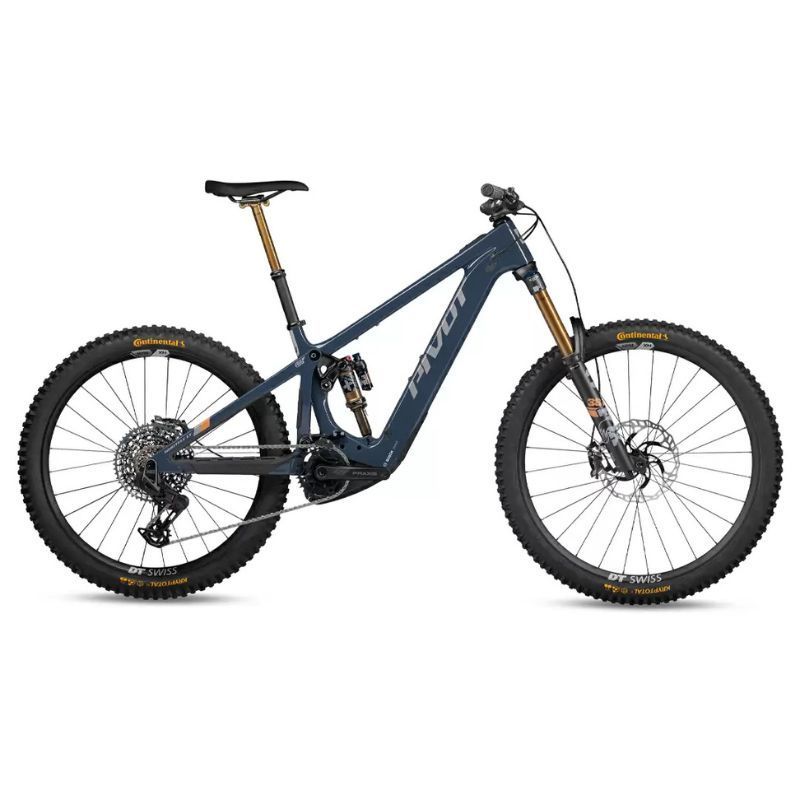

PIVOT SHUTTLE LT PRO X0 BIKE

The Shuttle LT is built to conquer the toughest climbs, unlock new loops, and dominate every descent. Designed for riders who crave gravity-defying downhills, this long-travel, enduro-inspired e-mountain bike is the ideal all-day, go-anywhere companion. The Shuttle LT's striking aesthetics perfectly complement the new Bosch Performance CX Race Limited Edition drive unit, unleashing an impressive 600 watts of peak power. Backed by a robust 750 Wh battery and expandable to 1000 Wh with the PowerMore range extender, it’s ready for epic, worry-free rides. The dw-link suspension system delivers unmatched climbing traction and downhill stability. Embrace the power, savor the speed, and let the adventure begin!

PIVOT SHUTTLE LT PRO X0 MAIN FEATURES:

• Wheel Size: 29/27.5
• Drivetrain: 12-speed
• Motor: Bosch
• Battery (Wh): 750
• Travel (mm): 170

THE BIKE IS DELIVERED PARTIALLY ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Shuttle LT Full Carbon, 160mm rear travel, adjustable geometry with flip chip, 12x157mm axle, full internal cable routing
• Motor: Bosch Performance CX Race
• Display: Bosch
• Battery: Bosch Powertube 750Wh
• Charger: Bosch
• Fork: Fox Factory 38 29", 44mm offset, GRIP X2, 170mm
• Shock: Fox Factory Float X
• Rear Derailleur: Sram X0 Eagle Transmission, 12-speed
• Shifter: Sram AXS Pod Controller
• Cassette: Sram GX 1275 Eagle Transmission 10-52T
• Chain: Sram GX Eagle Transmission Flattop 12-Speed
• Chainring: 34T
• Crankset: Praxis Alloy eCranks E-MTB, 160mm
• Front Brake: Shimano XT M8120, 4-piston
• Rear Brake: Shimano XT M8120, 4-piston
• Rotors: Galfer Wave 6-bolt 223mm (front) / 203mm (rear)
• Front Tire: Continental Kryptotal, Soft Compound Enduro Casing, 29x2.40
• Rear Tire: Continental Kryptotal, Soft Compound Enduro Casing, 27.5x2.60
• Rims: DT Swiss Hybrid HX1501 30mm, 29'' front, 27.5'' rear
• Front Hub: DT Swiss, Boost 15x110mm
• Rear Hub: DT Swiss, Boost 12x157mm
• Handlebar: Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
• Stem: Phoenix Team Enduro/Trail, 45mm
• Saddle: Phoenix WTB Volt Pro
• Seatpost: Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY INSTALLED
