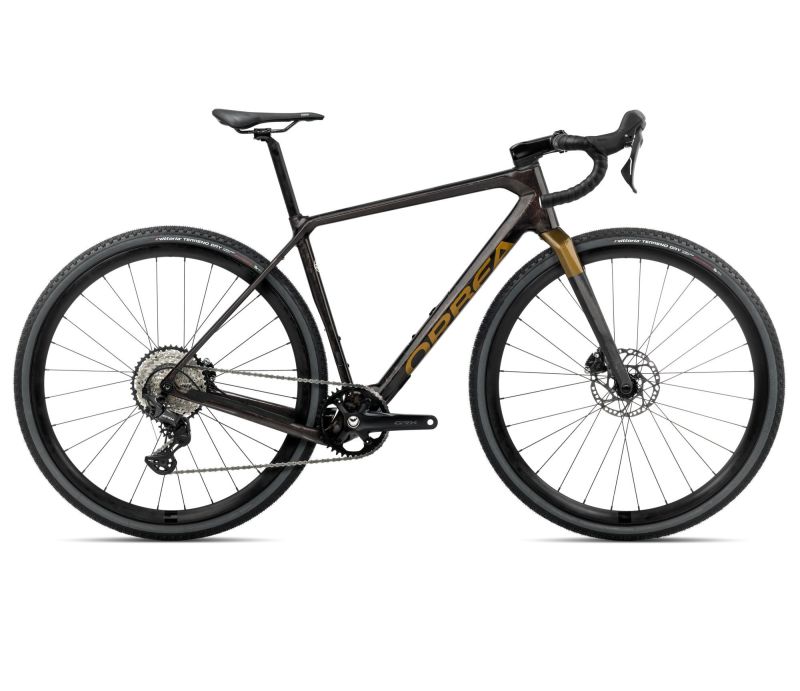

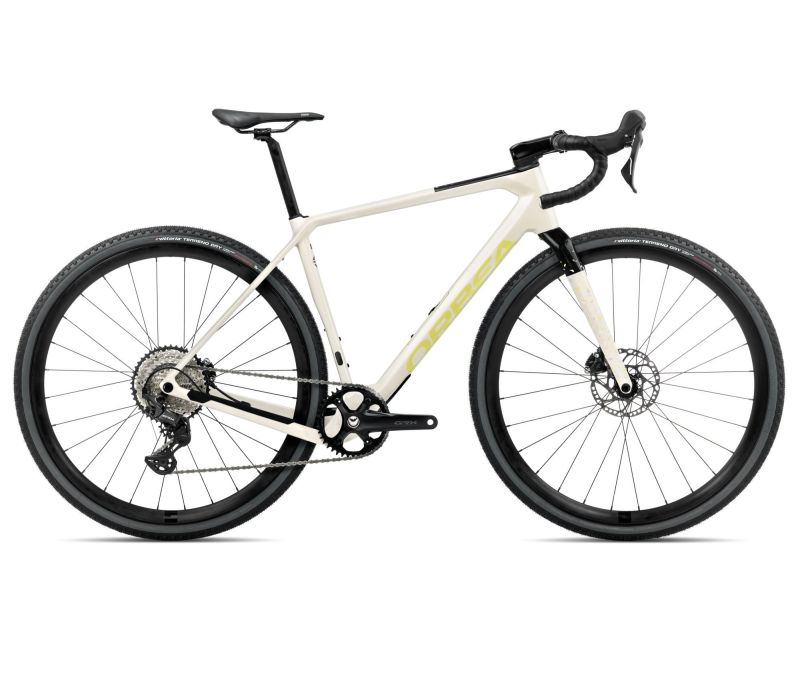

ORBEA TERRA M30TEAM 1X BIKE

The Orbea TERRA M30TEAM 1X is the bike that will take you on new adventures, offering exciting rides over gravel roads and untouched trails.

ORBEA TERRA M30TEAM 1X MAIN FEATURES:

• Wheel Size: 28"
• Gears: 12-speed
• Frame: Orbea Terra carbon OMR Disc, monocoque construction, HS 1.5", PF30, powermeter compatible, rear thru axle 12x142 mm, thread M12x2 P1, internal cable routing, LOCKR service box

THIS BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Orbea Terra carbon OMR Disc, monocoque construction, HS 1.5", PF30, powermeter compatible, rear thru axle 12x142 mm, thread M12x2 P1, internal cable routing, LOCKR service box
• Fork: Orbea Terra ICR, full carbon, tapered head tube 1-1/8" - 1.5", thru axle 12x100 mm, thread M12x2 P1
• Rear Shock: N/A
• Rear Derailleur: Shimano GRX RX822 GS
• Front Derailleur: N/A
• Shifters: Shimano GRX RX610
• Cassette: Shimano CS-M7100 10-45t 12-speed
• Chain: Shimano M6100
• Chainring: N/A
• Crankset: Shimano GRX RX610 40t
• Front Brake: Shimano RX400 hydraulic disc
• Rear Brake: Shimano RX400 hydraulic disc
• Rotors: N/A
• Front Tire: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• Rear Tire: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• Rims: Alloy, Tubeless, 700c, 21c
• Front Hub: Orbea thru axle 12x100 mm M12x2 P1 Solid
• Rear Hub: Orbea thru axle 12x142 mm M12x2 P1 Solid with internal thread
• Handlebar: OC Gravel GR31, reach 70, drop 110
• Stem: OC Road Performance RP22, -5°
• Saddle: Prologo Akero AGX black rails, 155 mm width
• Seatpost: SP 0.2 Carbon, 27.2 mm, 20 mm setback
• Maximum Rider Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DRIVETRAIN, AND BRAKES ARE ALREADY INSTALLED
