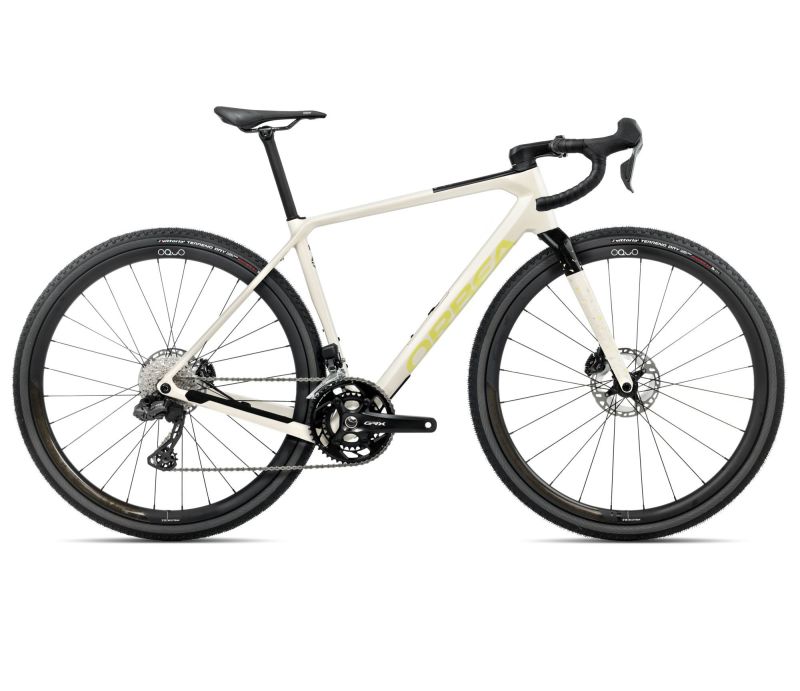

ORBEA TERRA M20ITEAM BIKE

The ORBEA TERRA M20iTEAM is the perfect bike to accompany you on new adventures, delivering unique emotions on gravel roads and winding trails.

MAIN FEATURES OF THE ORBEA TERRA M20ITEAM BIKE:

• Wheel Size: 28"
• Gears: 12-speed
• Lightweight carbon frame ensuring strength and agility

THE BIKE IS DELIVERED PARTIALLY ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Orbea Terra carbon OMR Disc, monocoque construction, HS 1.5", PF30, powermeter compatible, 12x142mm rear thru-axle, M12x2 P1 thread, internal cable routing, LOCKR service box
• Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tapered head tube, 12x100mm thru-axle, M12x2 P1 thread
• Rear Shock: N/A
• Rear Derailleur: Shimano GRX Di2 RX825
• Front Derailleur: Shimano GRX Di2 RX825
• Shifters: Shimano GRX Di2 RX825
• Cassette: Shimano Ultegra R8100 11-34t 12-Speed
• Chain: Shimano M7100
• Chainring: N/A
• Crankset: Shimano GRX RX820 31x48t
• Front Brake: Shimano RX820 Hydraulic Disc
• Rear Brake: Shimano RX820 Hydraulic Disc
• Rotors: N/A
• Front Tire: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• Rear Tire: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• Wheels: Oquo Road Control RC25TEAM, carbon Mini Hook rim, Zipp ZR1 hub, 25mm internal width, Sapim CX-Sprint spokes, 700C
• Front Hub: Orbea Thru Axle 12x100mm M12x2 P1 Solid
• Rear Hub: Orbea Thru Axle 12x142mm M12x2 P1 Solid, inner thread
• Handlebar: Easton EC90 AX Carbon, 16º flare, Di2 internal routing
• Stem: OC Road Performance RP11, -8º
• Saddle: Prologo Akero AGX black rails, 155mm width
• Seatpost: OC Performance XP10 Carbon, 27.2mm, 0mm setback
• Maximum Rider Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
