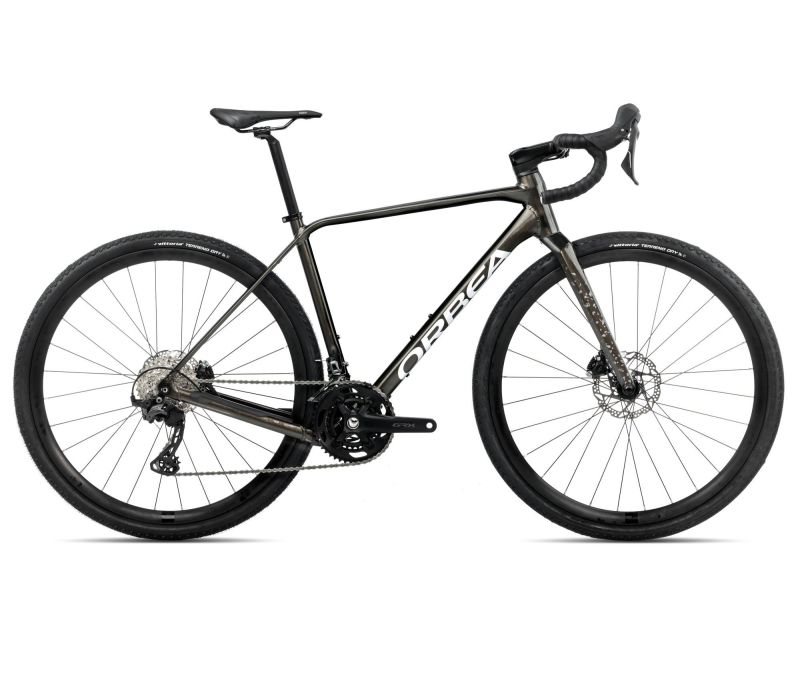

ORBEA TERRA H30 BIKE

GRAVEL FROM THE GROUND UP

Designed from the ground up for gravel, the Terra is not an adapted road bike or a slimmed-down mountain bike. Terra is gravel. Add comfort to your road adventures, finally discover where that dirt trail leads, or make your rides last into the next day. There is a vast world out there, and the Terra is ready to explore it with you.

ORBEA TERRA H30 BIKE MAIN FEATURES:

• Wheel Diameter: 28"
• Gear Speeds: 12
• TYRE CLEARANCE: Terra can be fitted with 700c x 45 tyres for speed and efficiency on gravel roads, or with 650b x 50 tread for extreme durability and high comfort when you need more traction.
• DRIVETRAIN COMPATIBILITY: Designing our frame from scratch gave us the opportunity to address a common issue found in many gravel frames: offering a wide range of drivetrain options without compromising tyre clearance.
• LOCKR: Our carbon frame offers a storage compartment inside the down tube, hidden behind the bottle cage, with space for a spare tube, pump or CO2 cartridge, along with a selection of tools.

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1.5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27.2mm seat tube, MMS system
• Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
• Shock Absorber: N/A
• Rear Derailleur: Shimano GRX RX820
• Front Derailleur: Shimano GRX RX820
• Shifters: Shimano GRX RX610
• Cassette: Shimano HG710 11-36t 12-Speed
• Chain: Shimano M6100
• Chainring: N/A
• Crankset: Shimano GRX RX610 30x46t
• Front Brake: Shimano RX400 Hydraulic disc
• Rear Brake: Shimano RX400 Hydraulic disc
• Brake Rotors: N/A
• Front Tyre: Vittoria Terreno Dry Gravel 700x38c
• Rear Tyre: Vittoria Terreno Dry Gravel 700x38c
• Rims: Alloy, Tubeless, 700c, 21c
• Front Hub: Orbea Thru Axle 12x100mm M12x2 P1 Solid
• Rear Hub: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
• Handlebar: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
• Stem: OC Road Performance RP22, -5º
• Saddle: Prologo Akero AGX black rails size 155mm
• Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
• Maximum Allowed Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE PRE-ASSEMBLY SERVICE FOR THE BIKE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY INSTALLED
