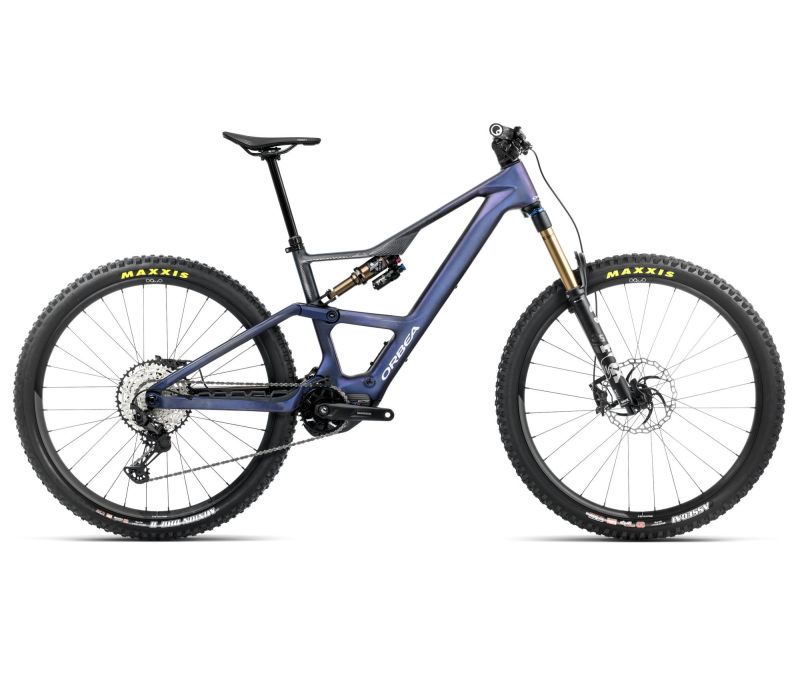

ORBEA RISE LT M10 630 WH BIKE

The new RISE LT M10 630Wh will take you on adventurous and challenging trails with unmatched style and performance. Thanks to the combination of cutting-edge technology and innovative design, this mountain bike offers a unique and thrilling riding experience.

ORBEA RISE LT M10 630 WH MAIN FEATURES:

• Wheel Diameter: 29"
• Gear Speed: 12
• Motor: Shimano
• Battery (Wh): 630
• Travel (mm): 160

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Orbea Rise OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
• Motor: Shimano EP801
• Display: N/A
• Battery: Orbea Internal 630Wh
• Charger: Orbea 2nd Generation eBike Smart Charger 42V/2-4A
• Fork: Fox 36 Float Factory 160 Grip X QR15x110 Kashima
• Shock: Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm
• Rear Derailleur: Shimano XT M8100 SGS Shadow Plus
• Front Derailleur: N/A
• Shifter: Shimano SLX M7100 I-Spec EV
• Cassette: Shimano CS-M7100 10-51t 12-Speed
• Chain: Shimano M7100
• Chainring: N/A
• Crankset: N/A
• Front Brake: Shimano XT M8120 Hydraulic Disc
• Rear Brake: Shimano XT M8120 Hydraulic Disc
• Rotors: N/A
• Front Tire: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Rear Tire: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Rims: Oquo Mountain Control MC32TEAM, alloy hookless rim, DT350 6IS hub, 32mm internal width, Sapim D-Sprint / Race spokes, 29"
• Front Hub: N/A
• Rear Hub: N/A
• Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
• Stem: OC Mountain Control MC20, 0º
• Saddle: Fizik Terra Ridon X5 145mm
• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
• Max Rider Weight: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY MOUNTED
