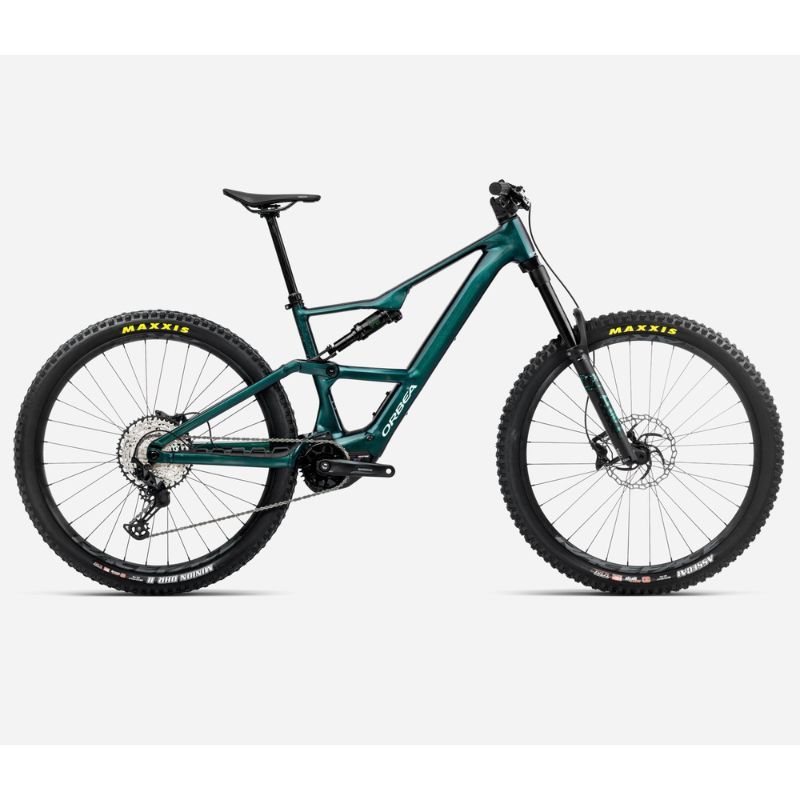

ORBEA RISE LT H20 BIKE

The trail-eating eMTB. The Rise LT features a smooth 160 mm / 150 mm travel with progressive trail geometry. Our 630 Wh battery comes as standard, while the 420 Wh option is available. The Shimano EP motor is equipped with our latest RS GEN2 MC firmware, ensuring a more natural ride.

ORBEA RISE LT H20 MAIN FEATURES:

• Wheel Diameter: 29
• Gears: 12
• Motor: Shimano
• Battery (Wh): 630
• Travel (mm): 160

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Orbea Rise Hydro 140mm travel 29" Boost 12x148
• Motor: Shimano EP600
• Display: N/A
• Battery: Orbea Internal 630Wh
• Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
• Fork: Fox 36 Float AWL HD Sport 160 Rail QR15x110
• Shock: Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
• Derailleur: Shimano SLX M7100 SGS Shadow Plus
• Front Derailleur: N/A
• Shifter: Shimano Deore M6100 I-Spec EV
• Cassette: Shimano CS-M7100 10-51t 12-Speed
• Chain: Shimano M6100
• Crankset: N/A
• Front Brake: Shimano MT420 Hydraulic Disc
• Rear Brake: Shimano MT420 Hydraulic Disc
• Rotors: N/A
• Front Tire: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Rear Tire: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Rims: Race Face AR 30c Tubeless Ready
• Front Hub: N/A
• Rear Hub: N/A
• Handlebar: OC Mountain Control MC31, Rise20, Width 800
• Stem: OC Mountain Control MC20, 0º
• Saddle: Fizik Terra Ridon X5 145mm
• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
• Maximum Weight Allowed: N/A
• Weight: N/A

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
