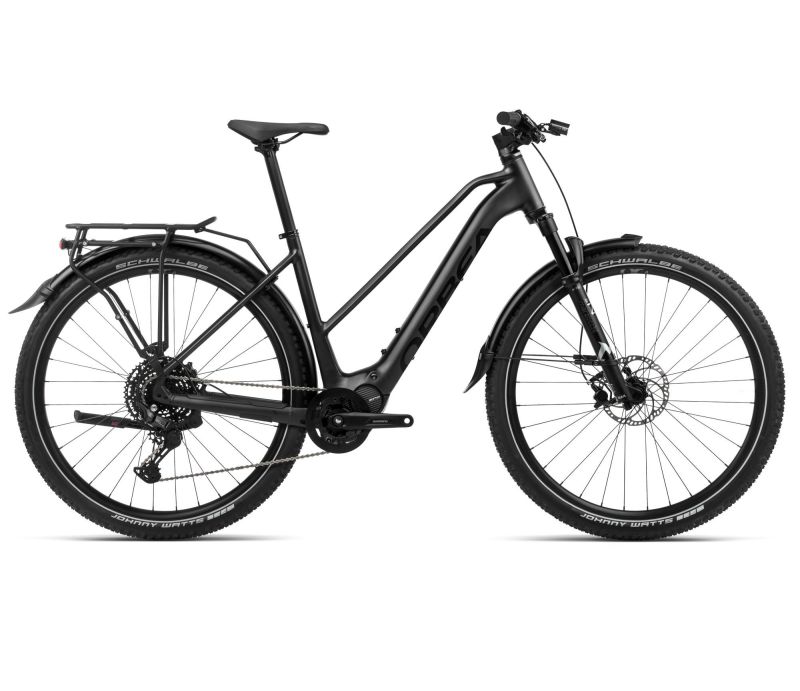

ORBEA KEMEN MID SUV 30 540Wh Shimano EP801

Orbea Kemen Mid: The Versatile eBike for Every Ride

The Orbea Kemen Mid is a sturdy and versatile eBike, designed to tackle both urban roads and dirt trails with comfort and reliability. With the Shimano EP801 motor and a 540Wh battery, it delivers excellent range and smooth, powerful pedal assistance.

Technical Specifications

• Wheel Diameter: 29"
• Gears: 10-speed
• Gender: Unisex
• Motor: Shimano EP801
• Battery: 540Wh (optional 250Wh Range Extender)
• Frame Size Available: 42

Components

• Frame: Orbea Kemen Mid Bar, hydroformed 6061 alloy, integrated battery, internal cable routing, Boost 148x12, rack and kickstand compatible.
• Fork: Marzocchi Bomber Z2 100 QR15x110, eBike optimized.
• Rear Derailleur: Shimano Cues U6000 GS Shadow.
• Shifters: Shimano Cues SL-U6000.
• Cassette: Shimano CS-LG300, 11-48t, 10-speed.
• Chain: KMC eGlide.
• Brakes: Magura AT2 hydraulic disc (front and rear).
• Tires: Schwalbe Johnny Watts, 29x2.35 RaceGuard with reflective tape.
• Wheels: Alloy, Tubeless, 29", 29c, 32H.
• Handlebar: OC Mountain Control MC31, rise 20mm, width 800mm.
• Stem: Alloy forged, 35mm interface, -6° angle, ICR.
• Saddle: Selle Royal Vivo Sport Women, 160x249mm.
• Seatpost: Alloy, 31.6x300mm, offset 0.

Weight & Limits

• Maximum Allowed Weight: N/A
• Total Weight: N/A

Ideal for daily commuting and off-road adventures, the Orbea Kemen Mid combines power, comfort, and practicality for every type of rider.
