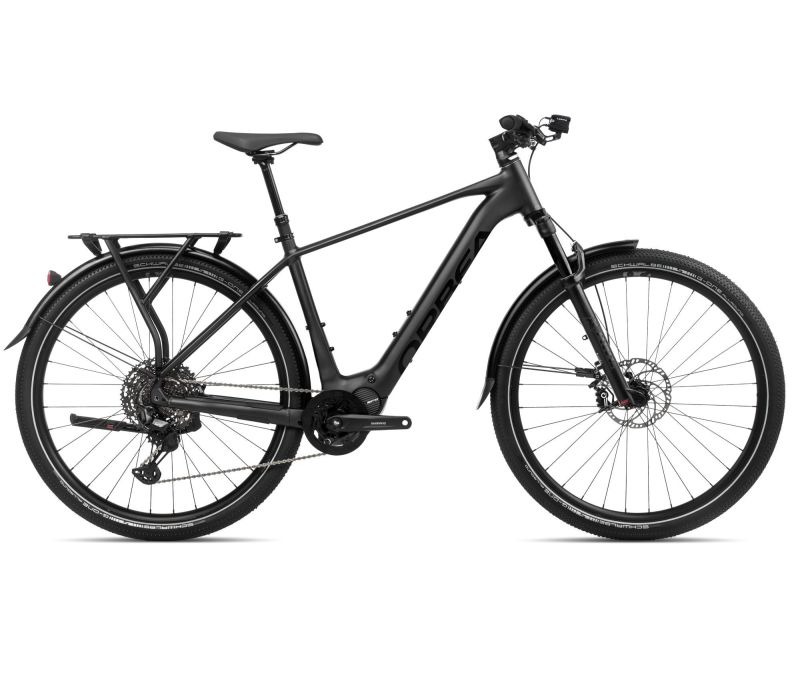

ORBEA KEMEN 10 540Wh Shimano EP801

Orbea Kemen: The Versatile E-Bike for City and Adventure

The Orbea Kemen is a durable and versatile e-bike, perfect for both urban commuting and off-road adventures. Equipped with a powerful Shimano EP801 motor, a 540Wh battery (expandable with a 250Wh range extender), and a Fox 34 Float AWL fork, this bike ensures comfort, range, and reliability for every ride.

Technical Specifications

• Wheel Diameter: 28"
• Gears: 11-speed
• Gender: Unisex
• Motor: Shimano EP801
• Battery: Orbea integrated 540Wh (optional 250Wh range extender)
• Frame Size Available: 42

Components

• Frame: Orbea Kemen Top Bar, hydroformed 6061 alloy, integrated battery, internal cable routing, Boost 148x12, carrier and kickstand compatible.
• Fork: Fox 34 Float AWL 100 RAIL QR15x110.
• Rear Derailleur: Shimano XT M8130 Link Glide SGS Shadow Plus.
• Shifters: Shimano XT M8130 Link Glide.
• Cassette: Shimano CS-LG400, 11-50t, 11-speed.
• Chain: KMC eGlide.
• Brakes: Magura MT5 E-STOP hydraulic disc (front and rear).
• Tires: Urban 47-622 with puncture protection and reflective strip.
• Wheels: Alloy, tubeless-ready, 29", 29c width, 32H.
• Handlebar: OC Mountain Control MC31, 20mm rise, 800mm width.
• Stem: Alloy forged, 35mm interface, -6° angle, ICR.
• Saddle: Selle Royal Vivo Ergo, 145x269mm.
• Seatpost: OC Mountain Control MC21, 31.6mm, dropper.

Weight & Limits

• Maximum Allowed Weight: N/A
• Total Weight: N/A

The Orbea Kemen is the perfect choice for those looking for a powerful and comfortable e-bike, ideal for daily commuting and outdoor adventures.
