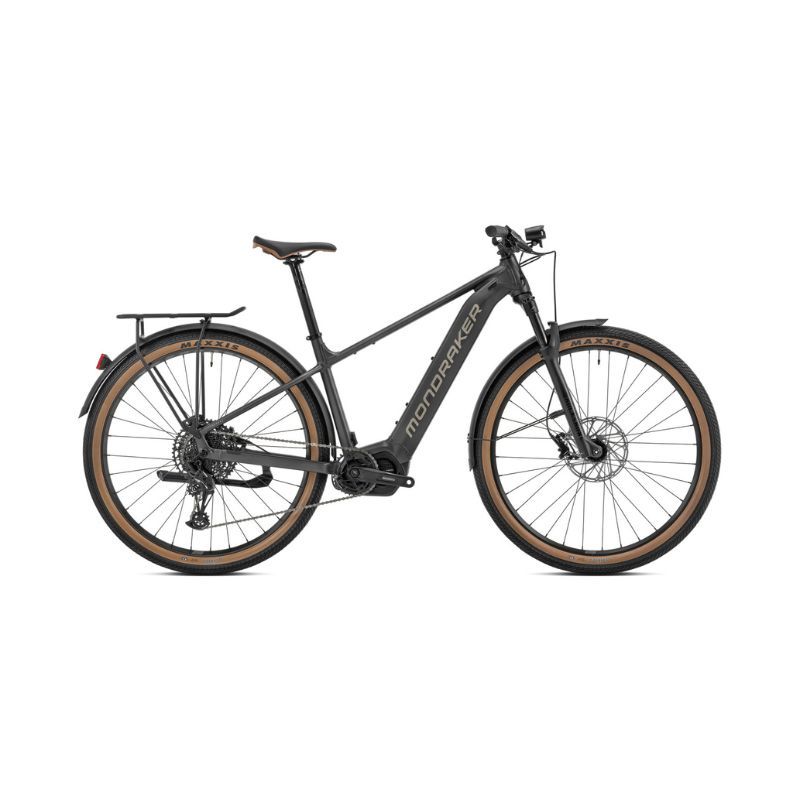

MONDRAKER THUNDRA X BIKE

The MONDRAKER THUNDRA X is a perfect e-bike both for the city and for pedaling on all trails. Internal cable routing, mudguards, luggage rack and front/rear lights make this bike perfect for any situation. Thanks to the new Shimano STEPS EP600 motor and the 720 Wh battery (with an optional extra 360 Wh), the journeys and hours of pedaling will be endless.

MONDRAKER THUNDRA X BIKE MAIN FEATURES:

• 29 wheels.
• Forward Geometry.
• Stealth Alloy.
• Shimano.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Reinforced Thundra Alloy 6061
• SIZES: XS: 380 mm / S: 390 mm / M: 430 mm / L: 470 mm / XL: 510 mm.
• FORK: RockShox Recon Silver RL 29, 100mm, Motion Control, Solo Air, tapered head tube, 15x110mm Boost axle, 32mm steel outer tubes, 42mm offset. Settings: Low speed compression adjustment for lockout, rebound, air preload.
• STEERING: Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, 41x30.2x7x45ºx45º upper, 51.9x40x8x45ºx45º lower.
• STEM: MDK Urban 40mm 5º, forged alloy 6061, 31.8mm barb.
• HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep angle, 5º upsweep angle, 31.8mm barber.
• GRIPS: Onoff Shaper.
• SEAT POST: Onoff Sulfur 0-R, 6061 T6 alloy, 3D forged, 31.6mm diameter, 400mm length.
• SADDLE: MDK urban. F
• FRONT BRAKE: Sram Level T, 2-piece caliper, Centerline 200mm one-piece brake disc with 6 IS bolts, steel-backed organic pads.
• REAR BRAKE: Sram Level T, 2-piece caliper, Centerline 180mm one-piece brake disc with 6 IS bolts, steel-backed organic pads.
• BRAKE LEVERS: Sram Level T, Direct Link drive, lever opening adjustment with tools, lever rotation bushings.
• RIMS: MDK-HP1 29, 30 mm internal width, tubeless ready, 32 spokes.
• SPOKES: Round NC stainless steel.
• FRONT HUB AXLE: Formula DC711, Boost 15x110 mm, sealed bearings, 6 IS bolts.
• REAR HUB AXLE: Formula EHL148 Boost 12x148 mm, sealed bearings, 6 IS bolts.
• FRONT TIRE: Maxxis Grifter 29x2.5, single compound, 60TPI, metal bead, brown wall.
• REAR TIRE: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, brown wall.
• CRANKS: Shimano Steps EP801 e-bike, 165 mm.
• CRANKSET: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
• CHAIN: Sram SX Eagle, 12s, Powerlock.
• REAR DEARBOX: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, 1:1 X-Actuation.
• SHIFT CONTROLS: ram Trigger SX Eagle, 12s, X-Actuation 1:1, single click.
• SPROCKET CASSETTE: Sram PG-1210, 11-50T, 12s.
• DROPPING HANG: Mondraker M068.
• EXTRAS: Front light: 50LUX DC 6-12V output, waterproof alloy cage. Rear light: mudguard mount, with reflector, e-bike version, 6-12V. Fenders: MDK Black Alloy Custom Fenders. Luggage rack: MDK alloy rear rack, maximum load 25kg. Stand: mass load KSA18-40. *Optional external battery for size M,L,XL: Simplo 360Wh
• WEIGHT (WITHOUT PEDALS): 23.8 kg.
• DISPLAY: Shimano EN500.
• ENGINE: Shimano STEPS EP600.
• BATTERY: Simplo internal 720Wh.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

010.23225 (Sz.XS - Color: Graphite) / 010.23226 (Sz.S - Color: Graphite) / 010.23227 (Sz.M - Color: Graphite) / 010.23228 (Sz.L - Color: Graphite) / 010.23229 (Sz.XL - Color: Graphite)
