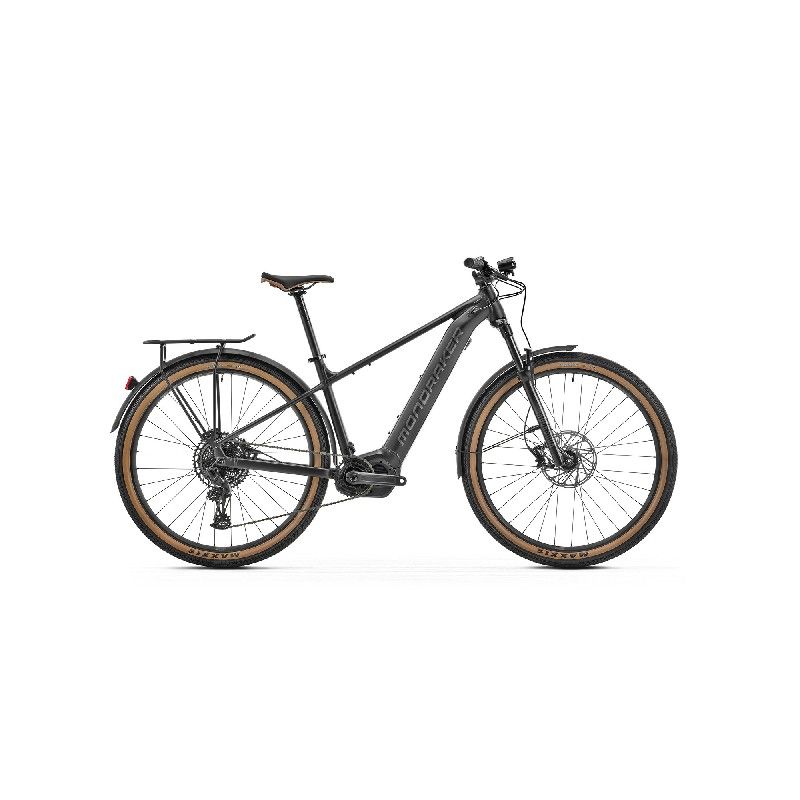

MONDRAKER THUNDRA X BIKE

The MONDRAKER THUNDRA X is an urban cross e-bike perfect for any activity. The bike is perfect for moving nimbly both n the city and in the mountains, and with internal cable routing, fenders, rack and bright lights the Thundra X has all the features of e-bikes. Thanks to the Shimano motor and 630 Wh battery (with the option of an extra 360 Wh battery available) getting around on the bike will be as fun as never before.

MONDRAKER THUNDRA X BIKE MAIN FEATURES:

• 29" wheels.
• Forward geometry.
• Stealth Alloy frame.
• Bosch motor.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Thundra Alloy 6061 Xtralite reinforced, Forward Geometry, internal battery, tapered head tube, Boost 12x148 mm rear axle, integrated dropout speed sensor*Outboard battery optional.
• SIZES: XS: 380 mm / S: 390 mm / M: 430 mm / L: 470 mm / XL: 510 mm.
• FORK: RockShox Recon Silver RL 29, 100 mm, motion control, Solo Air, tapered head tube, 15x110 mm Boost axle, 42 mm offset. Settings: low-speed compression adjustment to lock, return, air preload.
• HEADSET: Onoff Saturn tapered head tube 1-1/8" to 1-1/2", ACB sealed bearings, upper 41x30.2x7x45ºx45º, lower 51.9x40x8x45ºx45º.
• STEM: MDK Urban 40mm, 6061 forged alloy, 31.8mm barbore.
• HANDLEBARS: Onoff Sulphur 1.0 alloy 6061 double thickness, rise: 20mm, width: 680mm, backsweep angle 9º, upsweep angle 5º, barbore 31.8mm.
• GRIPS: Onoff Diamond, 1lock-on, 135 mm.
• SEATPOST: Onoff Sulphur 0-R, 6061 T6 alloy, 3D forged, 31.6 mm diameter, 400 mm length.
• SADDLE: FIZIK Terra Aidon X5 145 mm.
• FRONT BRAKE: Sram Level T, 2-piece caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing.
• REAR BRAKE: Sram Level T, 2-piece caliper, Centerline 180 mm one-piece brake disc with 6-bolt IS, steel-backed organic pads.
• BRAKE LEVERS: Sram Level T, Direct Link actuation, tooled range adjustment, lever pivot bushings.
• WHEELS: MDK-HP1 29, 30 mm inner width, tubeless ready, 32 spokes.
• SPOKES: Nc stainless steel round.
• FRONT HUB AXLE: Formula DC711, Boost 15x110 mm, sealed bearings, 6 IS bolts.
• REAR HUB AXLE AXLE: Formula EHL148 Boost 12x148 mm, sealed bearings, 6 IS bolts.
• FRONT TIRE: Maxxis Grifter 29x2.5, single compound, 60TPI, wire, tanned wall.
• REAR TIRE: Maxxis Grifter 29x2.5, single compound, 60TPI, wire, tanned wall.
• ARMS: FSA, 165mm.
• CRANKSET: Sram X-Sync 2 Eagle 34T, steel, narrow wide, 104 BCD.
• CHAINS: Sram SX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• REAR DERAILLEUR CONTROLS: Sram Trigger SX Eagle, 12s, X-Actuation 1:1.
• SPROCKET CASSETTE: Sram PG-1210, 11-50T, 12s.
• REAR DERAILLEUR FORK: Mondraker M068.
• EXTRA: Front light: 50LUX DC 6-12V output, waterproof alloy cage. Rear light: fender mount, with reflector, e-bike version, 6-12V. Fenders: custom black alloy MDK fenders. Luggage rack: MDK alloy rear luggage rack, maximum load 25kg. Kickstand: mass load KSA18-40 *Optional external battery: Simplo 360Wh.
• WEIGHT WITHOUT PEDALS: 23.9 kg.
• DISPLAY: Shimano STEPS E5003.
• MOTOR: Shimano STEPS E7000.
• BATTERY: Simplo internal 630Wh.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
