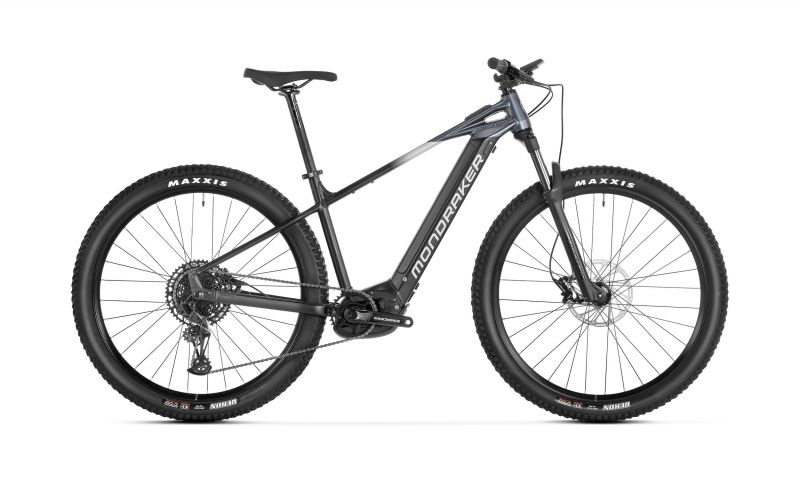

MONDRAKER PRIME EDITION 2 2024 BIKE

PRIME is the perfect bicycle to tackle the most extreme challenges in the mountains. With its lightweight and durable Stealth Alloy aluminum frame, it offers maximum maneuverability and control on rough terrains. High-quality components and advanced suspension technology ensure optimal performance on every type of trail. With this bike, you can tackle the most demanding descents and enjoy an exceptional riding experience.

MONDRAKER PRIME EDITION 2 2024 BIKE MAIN FEATURES

• Lightweight and durable Stealth Alloy aluminum frame
• High-quality components for optimal performance
• Advanced suspension technology for superior control
• Ideal for tackling rough terrains and challenging descents

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Prime Xtralite Alloy 6061 reinforced, Forward Geometry, removable internal battery, tapered head tube, Boost 12x148 mm rear axle, integrated dropout speed sensor
• Sizes: XS: 380 mm / S: 390 mm / M: 430 mm / L: 470 mm / XL: 510 mm
• Fork: RockShox Recon Silver RL 29, 120 mm, motion control, Solo Air, tapered head tube, Boost 15x110 mm axle, 32 mm steel outer tubes, 42 mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload
• Headset: Tapered head tube from 1-1/8" to 1-1/2" ONOFF Saturn, sealed ACB bearings, upper 41x30.2x7x45ºx45º, lower 51.9x40x8x45ºx45º
• Handlebar Stem: ONOFF Sulphur FG 30 mm 0º, forged alloy 6061, barbore 31.8 mm
• Handlebar: ONOFF Sulphur 1.0 alloy 6061 double thickness, rise: 20 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, barbore 31.8 mm
• Grips: ONOFF Twin, 1lock-on, 135 mm
• Seatpost: ONOFF Sulphur 0-R alloy 6061 T6, 3D forged, diameter 31.6 mm, length 400 mm
• Saddle: E-bike MDK black
• Front Brake: SRAM Level T, 2-piece caliper, Centerline one-piece 200 mm disc with 6-bolt IS, organic pads with steel backing
• Rear Brake: SRAM Level T, 2-piece caliper, Centerline one-piece 180 mm disc with 6-bolt IS, organic pads with steel backing
• Brake Levers: SRAM Level T, Direct Link actuation, reach adjustment with tools, lever rotation bushings
• Rims: Mavic E-CrossRide 29, internal width 30 mm, welded, PFP, tubeless ready, 28 spokes
• Spokes: Mavic J-bend double thickness, contactless lacing
• Front Hub Axle: Mavic, Boost 15x110 mm, 6-bolt IS
• Rear Hub Axle: Mavic, Boost 12x148 mm, ID360 ratchet system, 6-bolt IS, HG freehub
• Front Tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, foldable bead
• Rear Tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, foldable bead
• Crankset: E-bike Race Face Aeffect, 165 mm
• Chainring: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Chain: SRAM SX Eagle, 12s, Powerlock
• Rear Derailleur: SRAM SX Eagle, Roller Bearing Clutch type 3 technology, cage lock, long cage, 1x12s, X-Actuation 1:1
• Shifters: SRAM SX Eagle Trigger, 12s, X-Actuation 1:1, single click
• Cassette: SRAM PG-1210, 11-50T, 12s
• Derailleur Hanger: Mondraker M068
• Weight without pedals: 22.9 kg
• Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
• Motor: Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
• Battery: Bosch Powertube 625Wh

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED

ITEM CODE: 010.24281 (Size: XS; Color: Black)
