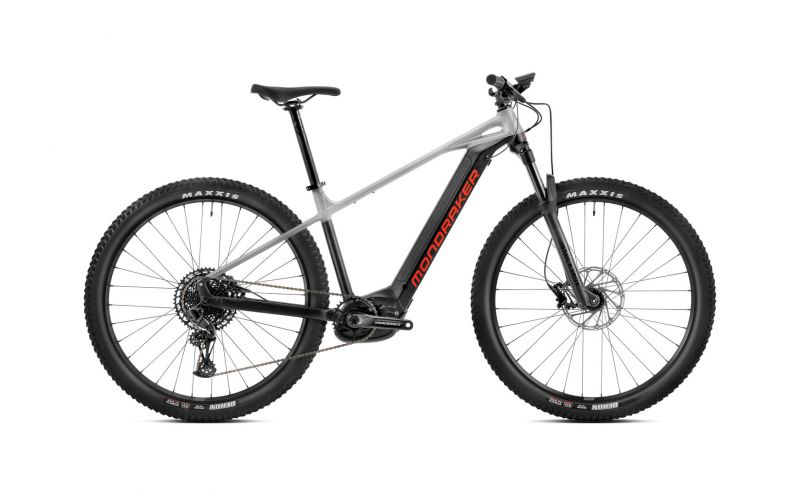

MONDRAKER PRIME EDITION 1 2023 BIKE

PRIME by Mondraker is the perfect choice for those who love to explore new trails and embark on mountain biking adventures. With its captivating design and high-performance features, this bike will take you wherever you desire to go, offering an unparalleled riding experience.

MONDRAKER PRIME EDITION 1 2023 BIKE MAIN FEATURES

• Lightweight aluminum frame ensuring strength and maneuverability
• High-quality suspension for excellent shock absorption and smooth riding
• Reliable and precise transmission to tackle any type of terrain
• Powerful brakes for optimal safety during descents
• Attractive and modern design that doesn't go unnoticed

*THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Prime Xtralite Alloy 6061 reinforced, Forward Geometry, removable internal battery, tapered head tube, Boost 12x148 mm rear dropout with integrated speed sensor
• Sizes: XS: 380 mm / S: 390 mm / M: 430 mm / L: 470 mm / XL: 510 mm
• Fork: RockShox Recon Silver RL 29, 120 mm, motion control, Solo Air, tapered steerer tube, Boost 15x110 mm, 32 mm steel outer tubes, 42 mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload
• Headset: Onoff Saturn tapered 1-1/8" to 1-1/2", sealed ACB bearings, upper 41x30.2x7x45°x45°, lower 51.9x40x8x45°x45°
• Handlebar Stem: Onoff Sulphur FG 30 mm 0°, forged 6061 alloy, barbore 31.8 mm
• Handlebar: Onoff Sulphur 1.0 double-butted 6061 alloy, rise: 20 mm, width: 800 mm, backsweep 9°, upsweep 5°, barbore 31.8 mm
• Grips: Onoff Twin, 1lock-on, 135 mm
• Seatpost: Onoff Sulphur 0-R, 3D forged 6061 T6 alloy, diameter 31.6 mm, length 400 mm
• Saddle: MDK e-bike black
• Front Brake: Sram Level T, 2-piece caliper, Centerline one-piece brake disc 200 mm with 6 IS bolts, organic pads with steel backing
• Rear Brake: Sram Level T, 2-piece caliper, Centerline one-piece brake disc 180 mm with 6 IS bolts, organic pads with steel backing
• Brake Levers: Sram Level T, Direct Link actuation, tool reach adjustment, lever rotation bushings
• Rims: MDK-HP1 29, internal width 30 mm, tubeless ready, 32 spokes
• Spokes: Round stainless steel Nc
• Front Hub Axle: Formula DC711, Boost 15x110 mm, sealed bearings, 6 IS bolts
• Rear Hub Axle: Formula EHL148 Boost 12x148 mm, sealed bearings, 6 IS bolts
• Front Tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
• Rear Tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
• Crankset: E-bike Race Face Aeffect, 165 mm
• Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear Derailleur: Sram SX Eagle, roller bearing clutch type 3, cage lock, long cage, 1x12s, X-Actuation 1:1
• Shifters: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
• Cassette: Sram PG-1210, 11-50T, 12s
• Derailleur Hanger: Mondraker M068
• Weight without Pedals: 22.5 kg
• Display: Bosch Kiox 300 / Bosch Led Remote
• Motor: Bosch Performance Line CX (25km/h) Smart System
• Battery: Bosch Powertube 625Wh

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED

ARTICLE CODE: 010.23237 (Size M; Color: Nimbus Grey)
