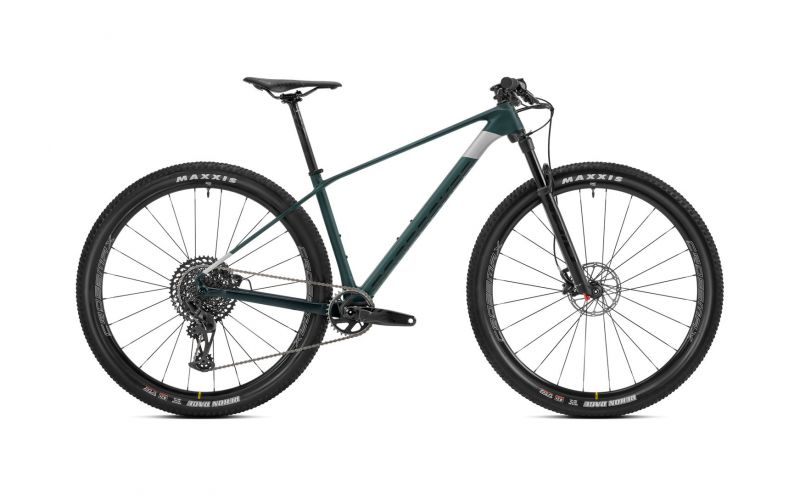

MONDRAKER PODIUM TRANSLUCENT BIKE

The brand new CHRONO CARBON R offers you the perfect combination of performance and style to tackle your mountain biking adventures. With its captivating design and cutting-edge technology, this carbon racing bike is ready to take your performance to the next level.

MONDRAKER PODIUM TRANSLUCENT BIKE KEY FEATURES:

• Lightweight and durable carbon frame for excellent maneuverability and speed.
• High-quality components for smooth and reliable transmission.
• Eye-catching design with blue marlin finishes for a unique and distinctive style.
• Perfect for competitions and long training sessions on both road and off-road terrain.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible.
• SIZES: S: 390mm / M: 420mm / L: 470mm / XL: 510mm.
• FORK: Rockshox SID SL Base RL 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload.
• REMOTE FORK CONTROL: RockShox OneLoc.
• HEADSET: ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°.
• STEM: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm.
• HANDLEBAR: ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9° backsweep, 0° upsweep, 31.8mm barbore.
• GRIPS: ONOFF Twin, 1lock-on, 135mm.
• SEATPOST: ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm.
• SADDLE: Fizik Antares R7.
• FRONT BRAKE: Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.
• REAR BRAKE: Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.
• BRAKE LEVERS: Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings.
• RIMS: Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes.
• SPOKES: Mavic straight-pull double butted, contactless lacing.
• FRONT HUB: Mavic, Boost 15x110mm, IS 6 bolts.
• REAR HUB: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
• REAR TIRE: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
• CRANKSET: Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm.
• CHAINRING: 34T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
• CHAIN: Sram NX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFT LEVERS: Sram Trigger GX Eagle, 12s, X-Actuation 1:1.
• REAR CASSETTE: Sram XG-1275, 10-50T, 12s.
• DERAILLEUR HANGER: Sram UDH.
• WEIGHT: 9.7 KG.
