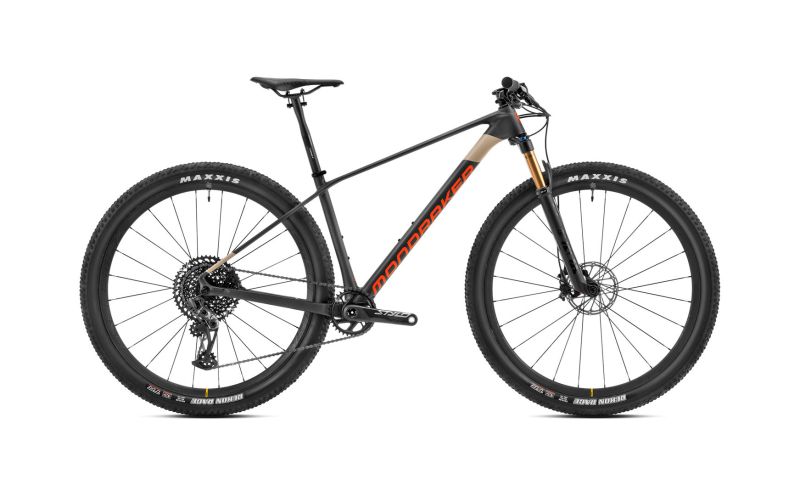

MONDRAKER PODIUM R BIKE

STEALTH AIR CARBON and XC FORWARD GEOMETRY adapted to the bike produced in series with the world's lightest frame are enough to demonstrate that the PODIUM R is the heir to the best of what we can do at Mondraker. With a weight of less than 9 kg, it is the ideal bike for those who demand the maximum on every ride, and want to compete at the highest levels both in a weekend village race and in a UCI qualification race, and why not, in a World Cup with the best riders on the planet!

MONDRAKER PODIUM R BIKE MAIN FEATURES:

• 29".
• Forward geometry.
• Stealth Carbon.

THE BIKE IS DELIVERED PREASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
• SIZES: S: 390mm / M: 420mm / L: 470mm / XL: 510mm.
• FORK: Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload.
• REMOTE FORK CONTROL: Fox single pull.
• HEADSET: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º.
• STEM: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm.
• HANDLEBAR: Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm.
• SADDLE: Fizik Antares R7.
• FRONT BRAKE: Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.
• REAR BRAKE: Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.
• BRAKE LEVERS: Sram Level TLM, Direct Link actuation, tooled reach adjust, lever pivot bushings.
• RIMS: Mavic Crossmax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes.
• SPOKES: Mavic straight-pull double butted, contactless lacing.
• FRONT HUB: Mavic, Boost 15x110mm, IS 6 bolts.
• REAR HUB: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
• REAR TIRE: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
• CRANKSET: Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm.
• CHAINRING: 34T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
• CHAIN: Sram SX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2.
• SHIFT LEVER: Sram Trigger GX Eagle, 12s, X-Actuation 1:1.
• REAR CASSETTE: Sram XG-1275, 10-50T, 12s.
• DERAILLEUR HANGER: Sram UDH.
• WEIGHT: 9.2kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
