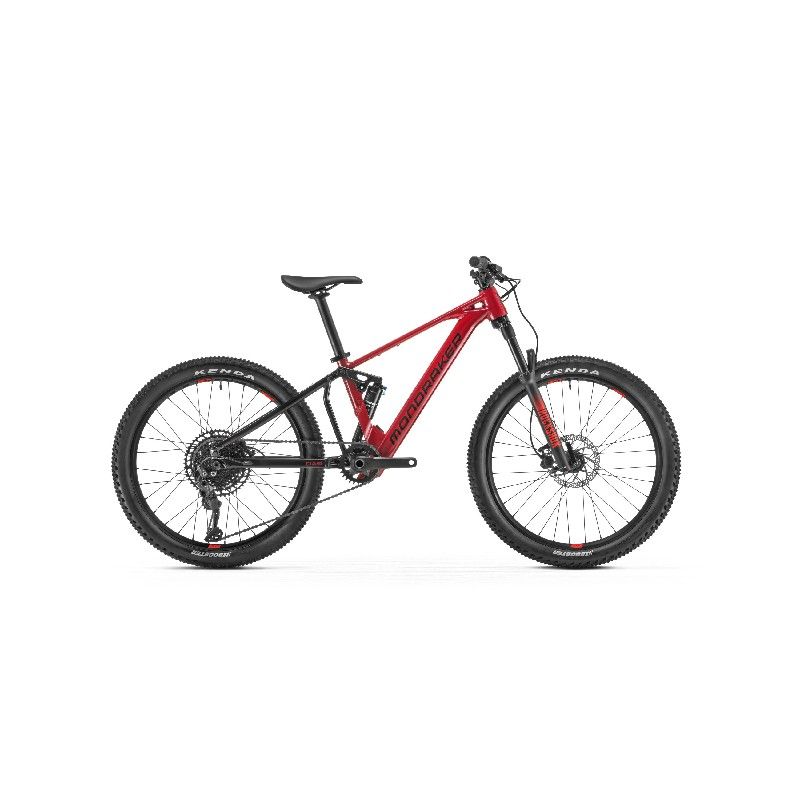

MONDRAKER KID F-PLAY 24 2022 BIKE

The F-PLAY 24 is a twin-axle e-mtb that is perfect for the little ones. With its 120 mm rear travel and 100 mm front travel, this bike is perfect for fun on all terrain and for tackling the toughest climbs with complete confidence.

MONDRAKER KID F-PLAY 24 2022 BIKE MAIN FEATURES:

• 24" wheels.
• Zero suspension system.
• Forward geometry.
• Stealth alloy frame.
• Mahle.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 100mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible.
• SHOCK: SR Suntour Raidon R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings.
• FORK: RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x135mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload.
• STEM: MDK XC, 6061 forged alloy, 31.8mm barbore, rise: 0º, length: 35mm.
• HANDLEBAR: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore.
• GRIPS: Onoff Twin, 1lock-on, 135mm.
• SEATPOST: MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm.
• SADDLE: SDG Fly JR.
• FRONT BRAKE: Tektro Auriga HDM291 hydraulic, 160mm IS 6 bolts rotor.
• REAR BRAKE: Tektro Auriga HDM291 hydraulic, 160mm IS 6 bolts rotor.
• BRAKE LEVER: Tektro Auriga HDM291 hydraulic.
• WHEELS: MDK-XP1 24 TLR, 23mm internal width, tubeless ready, 32 spokes.
• SPOKES: CN round stainless steel.
• FRONT HUB: Formula DC20LW, 9x135mm, cup & cone ball bearings, IS 6 bolts.
• REAR HUB: Mahle-Ebikemotion X-35.
• FRONT TIRE: Kenda Booster 24x2.4 single compound 30TPI, wire bead.
• REAR TIRE: Kenda Booster 24x2.4 single compound 30TPI, wire bead.
• CRANKS: Samox, Direct mount chain ring, 155mm.
• CRANKSET: 30T, steel.
• PEDAL AXLE: Samox BSA, 73mm.
• CHAIN: Shimano HG54, 10s.
• REAR SHIFT: Shimano Deore M5120, SGS, Shadow+, 10s.
• SHIFTER: Shimano Deore M4100R, Rapid Fire Plus, 10s.
• CASSETTE: Shimano Deore M4100, 11-46T, HG, 10s.
• HANGER: Mondraker M073.
• MOTOR: Mahle-Ebikemotion X-35.
• BATTERY: Mahle-Ebikemotion Internal 250Wh.
• COMMAND: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º.
• DISPLAY: Mahle-Ebikemotion.
• BIKE WEIGHT (WITHOUT PEDALS): 16.4 kg.
• SIZE: One size: 300mm.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
