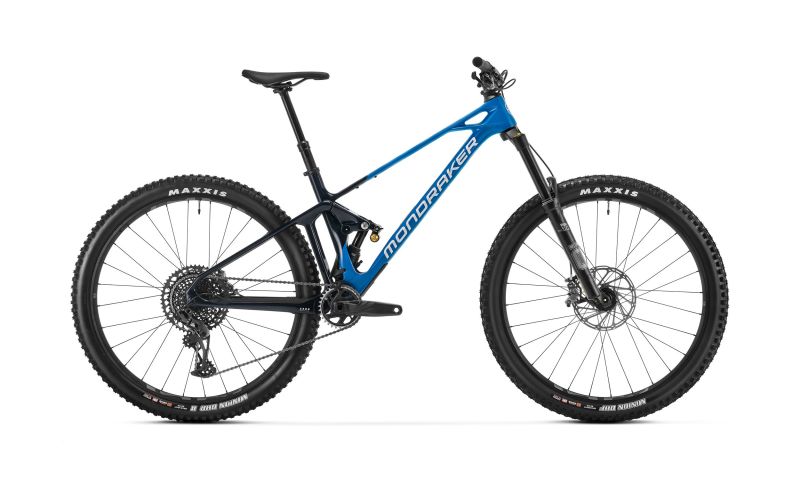

MONDRAKER FOXY CARBON RR 2 EDITION BIKE

The FOXY CARBON RR by Mondraker is the perfect choice for mountain bike adventure enthusiasts. With its eye-catching design and cutting-edge technology, this bike will take you to explore breathtaking trails and tackle exciting challenges. Built to deliver exceptional performance in every situation, this mountain bike will ensure an unforgettable riding experience.

MONDRAKER FOXY CARBON RR 2 EDITION BIKE MAIN FEATURES:

• Lightweight and durable carbon frame for superb handling.
• Performance suspensions that absorb shocks and ensure optimal control.
• High-quality components for reliable and long-lasting performance.

THE BIKE COMES PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 500mm.
• REAR SHOCK: Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• REAR SHOCK ADJUSTMENT: C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E).
• FORK: Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40.
• HEADSET: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing.
• STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm.
• SADDLE: SDG BEL-AIR 3.0, LPU foam, steel rails.
• FRONT BRAKE: Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• REAR BRAKE: Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• BRAKE LEVERS: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust.
• RIMS: e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes.
• SPOKES: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers.
• FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
• REAR HUB: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead.
• REAR TIRE: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead.
• CRANKSET: Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52.
• CHAINRING: 32T, CNC-machined alloy, X-SYNC 2.
• BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
• CHAIN: Sram NX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFT LEVERS: Sram Trigger GX Eagle, 12s, X-Actuation 1:1.
• REAR CASSETTE: Sram XG-1275, 10-52T, 12s.
• DERAILLEUR HANGER: Sram UDH.
• WEIGHT: 14.6 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
