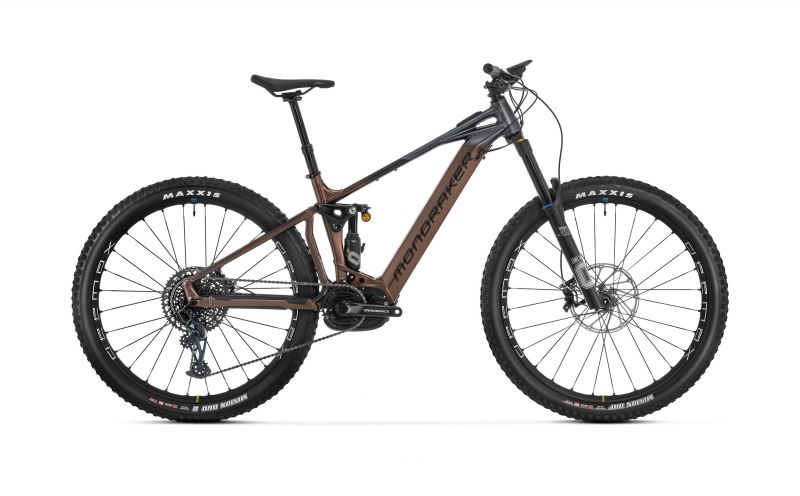

MONDRAKER CRAFTY XR BIKE

The brand new CRAFTY XR Bronze is the perfect electric bicycle to tackle any type of terrain. With its captivating design and the power of the electric motor, it allows you to explore new trails and experience thrilling adventures.

MONDRAKER CRAFTY XR BIKE MAIN FEATURES:

• Lightweight and durable aluminum frame for stable and comfortable riding.
• Bosch smart system.
• 29-inch wheels.
• Zero suspension system frame.
• Forward geometry.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• FRAME: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
• SIZES: S: 380mm / M: 420mm / L: 450mm / XL: 490mm.
• REAR SHOCK: Öhlins TTX Air 205X65mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings.
• REAR SHOCK ADJUSTMENT: C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D).
• FORK: Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber.
• HEADSET: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°.
• HANDLEBAR STEM: Onoff Krypton FG 30mm, CNC, 31.8mm barbore.
• HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
• GRIPS: Onoff Desert, 1lock-on, 135mm.
• SEATPOST: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm.
• SADDLE: FIZIK Terra Aidon X5 145mm.
• FRONT BRAKE: Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• REAR BRAKE: Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
• BRAKE LEVERS: Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust.
• RIMS: Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes.
• SPOKES: Mavic straight-pull double butted, contactless lacing.
• FRONT HUB: Mavic, Boost 15x110mm, IS 6 bolts.
• REAR HUB: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub.
• FRONT TIRE: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• REAR TIRE: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead.
• CRANKSET: Race Face Aeffect ebike, 165mm.
• CHAINRINGS: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.
• CHAIN: Sram NX Eagle, 12s, Powerlock.
• REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
• SHIFTER: Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click.
• REAR CASSETTE: Sram XG-1275, 10-52T, 12s.
• DERAILLEUR HANGER: Mondraker M068.
• WEIGHT: 25.3 kg.
• DISPLAY: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller.
• MOTOR: Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM.
• BATTERY: Bosch Powertube 750Wh.

*PRO-M STORE OFFERS FREE ASSEMBLY SERVICE FOR THE BIKE: SEATPOST, FORK, GEARSHIFT, AND BRAKES ARE ALREADY ASSEMBLED
