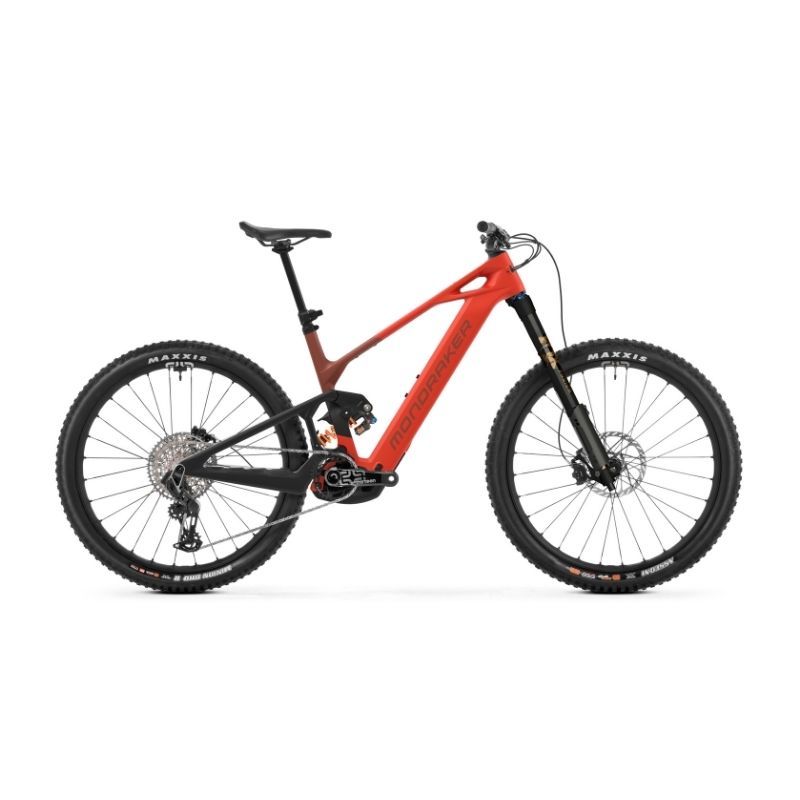

MONDRAKER CRAFTY CARBON XR

An electric mountain bike designed for riders who demand the ultimate in enduro and all-mountain performance.

The Crafty Stealth Air full carbon frame integrates the updated Zero Suspension system with 150 mm travel, Forward Geometry and a removable internal battery for stiffness, light weight and full control.

Equipped with a Fox DHX2 Factory Kashima shock with ultra-light SLS spring and a Fox 29 Podium GRIPX2 Factory Kashima 170 mm fork, it delivers precision and comfort even on the toughest terrain.

The SRAM X0 Eagle AXS T-Type 12v drivetrain and SRAM Maven Silver brakes with HS2 220/200 mm rotors ensure maximum stopping power, reliability and control.

e*thirteen Grappler Flux aluminum rims, tubeless Maxxis Assegai / Minion DHR II tires and the Bosch Performance Line CX R Smart System motor with an 800Wh battery guarantee range and performance.

MONDRAKER CRAFTY CARBON XR - MAIN FEATURES:

• Shock · Fox DHX2 Factory Kashima
• Fork · Fox Podium 29 Float GRIPX2 Factory Kashima
• Crankset · e*thirteen Helix Race Carbon E*Spec Plus
• Rear derailleur · Sram X0 Eagle AXS, T-Type, 12s
• Battery · Bosch Powertube 800Wh

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: Crafty Stealth Air full carbon; optimized Zero Suspension system; 150 mm travel; Forward Geometry; removable internal battery; Boost 12x148 mm rear axle; UDH; tapered headtube; monobloc upper link; HHG internal cable routing; high-capacity sealed bearings; 15 mm oversized axles; exclusive plastic motor covers
• Sizes:
  • S: 380 mm
  • M: 410 mm
  • ML: 435 mm
  • L: 460 mm
  • XL: 490 mm
• Shock: Fox DHX2 Factory Kashima, 185x55 mm; adjustments: high/low speed compression, high/low speed rebound, spring preload; ultra-light steel spring (SLS); Trunnion upper mount; lower bushings 30x8 mm
• Shock tuning: Compression CL60; Bleed 0.9; Rebound RS60; Rezi B60; LML; VVCM. Recommended springs:
  • S: 400 lb
  • M: 450 lb
  • ML: 500 lb
  • L: 550 lb
  • XL: 600 lb
• Fork: Fox Podium 29 Float GRIPX2 Factory Kashima, 170 mm; tapered steerer; Boost 20x110 mm Kabolt axle; 44 mm offset; adjustments: high/low speed compression, high/low speed rebound, air preload
• Headset: Acros custom ZS56/ZS56; 1-1/8"–1.5" steerer; internal cable routing; sealed blocklock caps
• Stem: Onoff S9 30 mm 0º, full CNC, 31.8 mm clamp
• Handlebar: Onoff S9 1.0 Carbon; rise 25 mm (L/XL: 38 mm); 800 mm width; 8º backsweep; 5º upsweep; 31.8 mm clamp
• Grips: Onoff Desert Pro, CNC lock-on, 135 mm (L/XL: thicker profile)
• Seatpost: RockShox Reverb Stealth AXS, 31.6 mm.
  • S: 398.2 × 125 mm
  • M: 448.2 × 150 mm
  • ML: 498.2 × 175 mm
  • L: 548.2 × 200 mm
  • XL: 548.2 × 200 mm
• Saddle: Ergon SM-10
• Front brake: SRAM Maven Silver; 4-piston caliper (18 & 19.5 mm); one-piece HS2 220 mm rotor, 6-bolt IS; sintered pads with steel backing
• Rear brake: SRAM Maven Silver; 4-piston caliper (18 & 19.5 mm); one-piece HS2 200 mm rotor, 6-bolt IS; sintered pads with steel backing
• Brake levers: SRAM Maven Silver, SwingLink with lever pivot bushings; tool-free reach adjustment
• Rims: e*thirteen Grappler Flux, IW30 Hookless, welded 6069 aluminum; 30 mm internal width; tubeless ready; 28 spokes
• Spokes: e*thirteen / Sapim D-Light (brass)
• Front hub axle: e*thirteen Boost 20x110 mm; triple seal; finished aluminum; 6-bolt IS
• Rear hub axle: e*thirteen Boost 12x148 mm, Sidekick; adjustable deadband 12°/15°/18°; triple seal; machined aluminum; 6° engagement; 6-bolt IS; XD freehub
• Front tire: Maxxis Assegai 29×2.5 WT; tubeless ready; 3C MaxxGrip compound; EXO+ protection; 60 TPI; folding bead
• Rear tire: Maxxis Minion DHR II 29×2.5 WT; tubeless ready; 3C MaxxTerra compound; DD protection; 2×120 TPI; folding bead
• Crankset: e*thirteen Helix Race Carbon E*Spec Plus; 160 mm for all sizes
• Chainring: SRAM XX Eagle 34T T-Type, direct mount, steel, CL55
• Chain: SRAM GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: SRAM X0 Eagle AXS, T-Type, 12s
• Shifters: SRAM Eagle AXS Pod MMX, 12s
• Cassette: SRAM XS-1275, 10-52T, T-Type, 12s
• Weight (without pedals): 24.4 kg
• Display: Kiox 400C remote control / Bosch Mini
• Motor: Bosch Performance Line CX R (25 km/h) SMART SYSTEM (BDU386Y)
• Battery: Bosch Powertube 800 Wh

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR AND BRAKES ARE ALREADY INSTALLED
