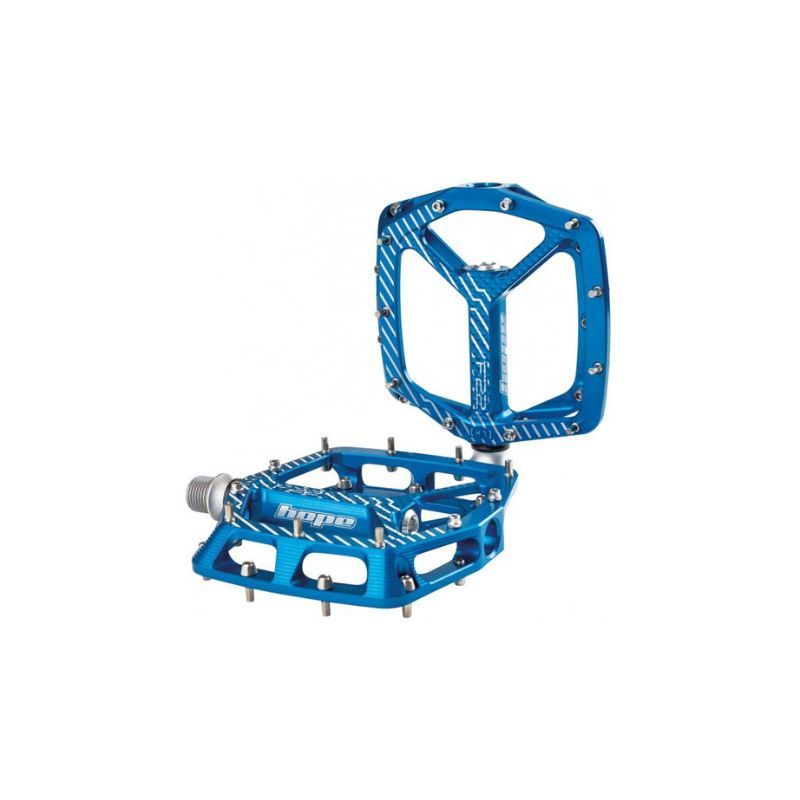

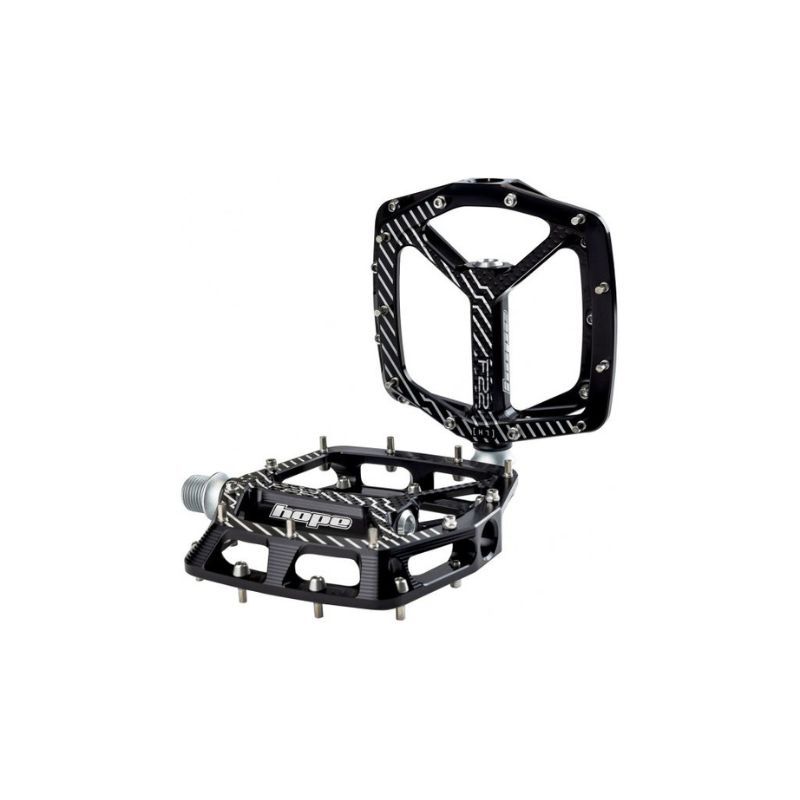

HOPE FLAT F22 PEDALS

HOPE FLAT F22 PEDALS are specially designed to improve stability, foot support and grip. These pedals are an evolution of the F20 model and differ from the previous model in the design of the pivot, which is more robust.

HOPE FLAT F22 PEDALS MAIN FEATURES:

• Redesigned platform.
• Concave profile from front to back and right to left.
• Wider platform for greater support and improved feel.
• Platform support dimension: 105x102mm.
• Overall platform size: 105x111mm.
• Platform thickness: 14mm in the centre - 17mm on the outside.
• Asymmetrical, tapered profile.
• Concavity accentuated by the shorter pins towards the centre of the platform.
• 22 pins on each pedal.
• Longer pins with hexagonal profile.
• Pins adjustable in height using spacers.
• Pins fixed on the opposite side to prevent unwanted locking or unscrewing.
• Heat-treated Cr-Mo pin with updated design for increased strength.
• Rotation on three bearings and IGUS bushing.
• Single and double lip seals isolate the pin from dirt.
• Internally rebuildable.
• Weight: 360 g (the pair).
