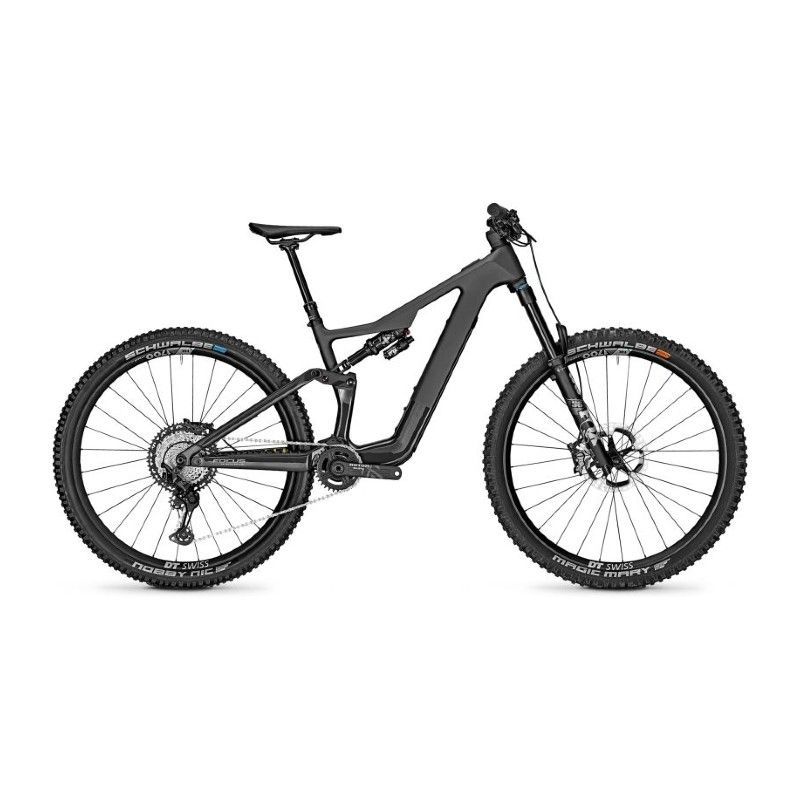

FOCUS JAM2 SL 9.9 BIKE

The FOCUS JAM2 SL 9.9 is a bi-axle mtb perfect for climbing, descending and making sudden accelerations on all terrain. The fun is maximized with the best mix of electronic support and the riding characteristics of a pure bike without a motor. The lightweight full MAX carbon frame with 29" wheels is powered by the super-compact Fazua Ride 60 e-drive with a 430 Wh battery. The 160/150 mm full suspension bike is fully optimized for light weight and built with fun-oriented geometry.

FOCUS JAM2 SL 9.9 BIKE MAIN FEATURES:

• Super light E-MTB thanks to lightweight MAX carbon frame and Fazua Ride 60 e-drive with 60 Nm and 430 Wh battery.
• FOX 36 Performance Elite 160 mm travel fork and FOX Float X 150 mm rear shock with F.O.L.D. kinematics.
• Shimano XT 1x12 rear derailleur and XT 4-piston brakes, fully integrated C.I.S. cable routing and DT Swiss Hybrid LS wheels.
• Removable battery.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame: MAX Carbon technology, 150 mm F.O.L.D. GEN3 sistema cinematico ammortizzatore posteriore, 148x12 perno passante, passagio cavi interni, Post Mount 180 mm.
• Motor: FAZUA Ride 60, 60 Nm, 450 W max.
• Display: FAZUA LED Hub + Ring Control.
• Battery: FAZUA Ride 60 Energy 430, 430 Wh, rimuovibile.
• Charger: FAZUA.
• Fork: FOX 36 Float Performance Elite 29 160 mm, Grip 2, 110 x 15 mm, 44 mm rake.
• Shock: FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing.
• Shift: Shimano Deore XT M8100, 12v.
• Derailleur: /.
• Shifter: Shimano Deore XT M8100, 12v.
• Cogs: Shimano Deore CS-M6100 10-51D.
• Chain: 12v.
• Chainring: 32D.
• Crankarm: Rotor eKAPIC 165mm.
• Front Brake: Shimano XT M8120, 4 pistoni.
• Rear Brake: Shimano XT M8120, 4 pistoni.
• Rotor: Shimano XT IceTech 203 mm / Shimano XT IceTech 203 mm.
• Front tire: Schwalbe Magic Mary, 2.4 Super Ground Soft, 62-622, 29x2.4".
• Rear tire: Schwalbe Nobby Nic 2.4 SuperTrail SpeedGrip, 29x2.4".
• Rims: DT Swiss HX1700 LS, 30-622.
• Front hub: DT Swiss 350, 15x110 mm.
• Rear Hub: DT Swiss 350, 12x148 mm.
• Handlebar: RaceFace Atlas 35, alluminio, 820 mm, rise: 35 mm, backsweep: 8°.
• Stem: FOCUS C.I.S. integrato , 50 mm, 0°, 35 mm, alluminio.
• Saddle: fizik Taiga.
• Seatpost: Post Moderne dropper post PM-MT171, 31.6 mm.
• Maximum weight supported: 135 kg.
• Weight: 19,19 kg.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

663617010 (Sz.S - Color: Carbon Glossy) / 663617012 (Sz.L - Color: Carbon Glossy)
