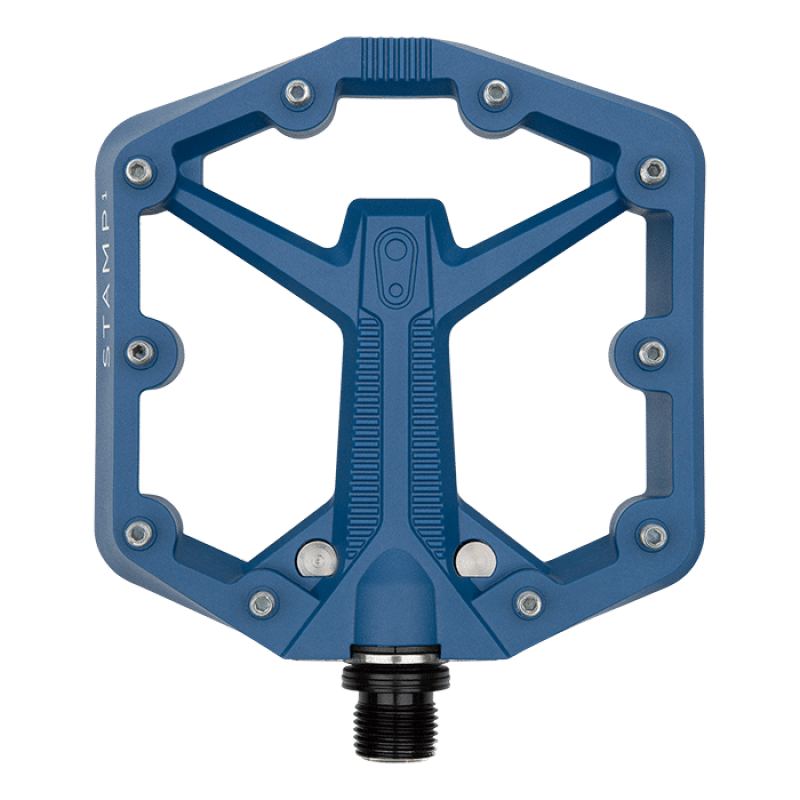

CRANK BROTHERS STAMP 1 GEN 2 PEDALS

The new Stamp 1 Gen 2 inherits the legacy of the Stamp line with its concave pedal body design for superior trail grip, reliable Igus internal components for enhanced durability, and a newly designed one-piece pin that maximizes traction while simplifying replacement.

Built without compromises on quality, the updated Stamp 1 pedal features a robust composite nylon body while retaining the proven internal components of the award-winning Stamp 7 flat pedals, supporting you ride after ride.

CRANK BROTHERS STAMP 1 GEN 2 MAIN FEATURES:

• Usage: enduro, street, trail.
• Optimized surface based on size.
• Thin and concave profile - pedal body height from 13.5 to 15.5 mm.
• New replaceable pins, 10 per pedal.
• Updated IGUS bearings and sealing system, fully replaceable.
• Small size recommended for shoe sizes: 3-10 (US M) // 37-43.5 (EU).
• Large size recommended for shoe sizes: 10-15 (US M) // 43.5-49 (EU).
• Dimensions: 100 mm x 100 mm (small), 114 mm x 111 mm (large).
• Internal bearing type: Igus LL-glide bearing.
• External bearing type: Igus LL-glide bearing.
• Body material: Composite.
• Pins: 10 per pedal.
• Spindle material: Forged chromoly steel SCM 435.
• Actual weight (pair): 324 g (small), 352 g (large).
