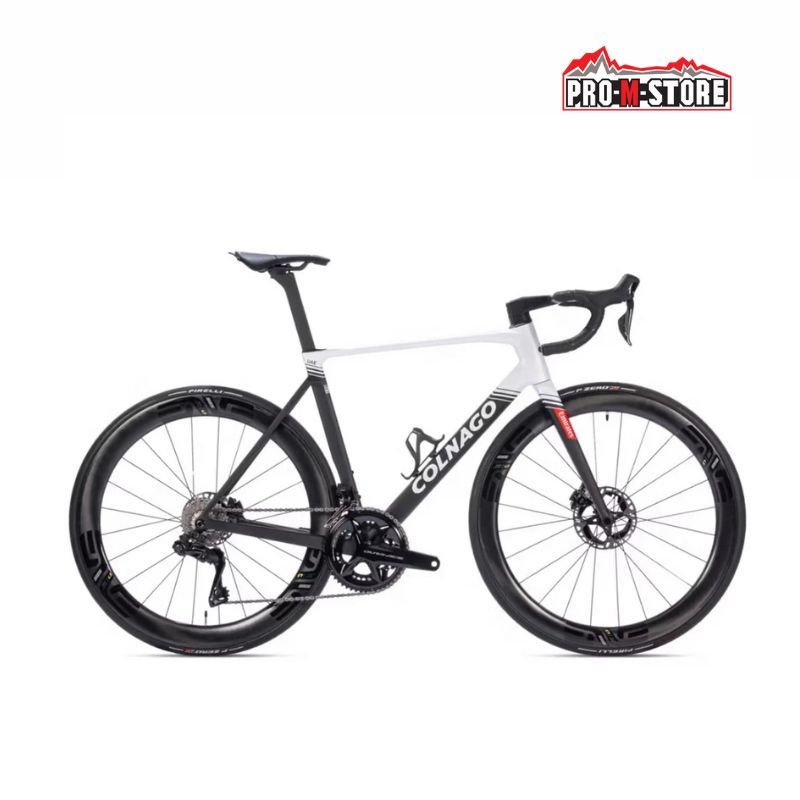

COLNAGO V5RS DURA-ACE DI2 ENVE SES 4.5 WITHOUT POWER METER

The V5Rs is the latest evolution of Colnago’s V Series: lighter, more aerodynamic, and more refined than ever. It is the ultimate all-round racing bike, developed to keep dominating the WorldTour with Pogačar and teammates.

Lightweight, yet aerodynamic, responsive, and agile – the V5Rs strikes the perfect balance between these essential characteristics, all with a single goal: to win. More than ever.

Every detail of the V5Rs was designed to improve racing performance: weight, aerodynamics, stiffness, and handling, always with real-world racing demands in mind. One goal: victory.

KEY FEATURES — COLNAGO V5RS DURA-ACE DI2 ENVE SES 4.5 (NO POWER METER)

• The lightest Colnago ever: At just 685 grams for the ready-to-paint frame (size 485), the V5Rs is the lightest Colnago frame ever made. The frame kit weighs 12.5% less than its predecessor, with no compromise in stiffness.
• Refined profiles: Experience gained from the Y1Rs helped refine the V5Rs design. It adopts slender, efficient profiles that offer wind tunnel performance close to the best aero frames.
• Reduced frontal area: The V5Rs has a frontal area of just 250 cm² – 13% less than its predecessor. The evolution of the narrower head tube further reduces drag and saves watts.
• Stiff and responsive: The V5Rs combines lightness and aerodynamics without sacrificing stiffness or reactivity, delivering top-tier performance for UAE Team pro riders.
• Sharper handling: A new fork design improves precision and lowers weight. With a 32 mm tire clearance, it supports wider tires for better grip, handling, and speed on rough terrain.
• Top-quality carbon: Advanced lamination techniques ensure each frame area receives precise fiber placement. The result: a lightweight, strong, and durable structure.

PRE-ASSEMBLED BY US

Delivered preassembled for your convenience.

TECHNICAL SPECIFICATIONS

Series: V Series
Model: V5Rs
Weight: Size 485, unpainted frame: 685g
Weight limit: Max total system weight (bike + rider + cargo): 120 kg

Frame Kit

• Frame: Colnago V5Rs monocoque carbon
• Fork: Carbon, disc brakes, integrated cables, semi-circular section
• Headset: 1"1/8 – 1"1/4, SLT-treated bearings
• Seatpost:
  • Standard: Carbon, 15 mm offset
  • Optional (sold separately): Carbon, 0 mm offset
• Thru-axles: 12 mm diameter – 100 mm front, 142 mm rear

Drivetrain

• Shifters: Shimano Dura-Ace ST-R9270
• Front derailleur: Shimano Dura-Ace FD-R9250
• Rear derailleur: Shimano Shadow RD-R9250 12-speed
• Crankset:
  • Default: 52/36T
  • Crank arm lengths:
    • 170 mm (sizes 420–485)
    • 172.5 mm (sizes 510–530)
    • 175 mm (sizes 550–570)
• Bottom Bracket: BSA (English threaded), Shimano
• Cassette: Default 11-30T
• Chain: Shimano CN-M9100 12-speed

Brakes

• Brakes: Shimano Dura-Ace R9270, RT-CL900 rotors
• Rotor size: 160 mm front / 140 mm rear
• Brake mounts: Standard flat mount

Wheels

• Wheelset: ENVE SES 3.4 Carbon
• Rim height: Front 39 mm / Rear 43 mm
• Internal rim width: 25 mm
• Hubs: ENVE INNERDRIVE™ Premium straight-pull
• Axles: Front HH12-100 / Rear HH12-142
• Tires: Pirelli PZero Race TLR 700x28
• Max tire clearance: 32 mm (nominal width)

Components

• Saddle (subject to availability):
  • Prologo Dimension
  • Selle Italia Novus Mg
• Handlebar & Stem: Colnago CC.01 integrated cockpit – regular geometry
