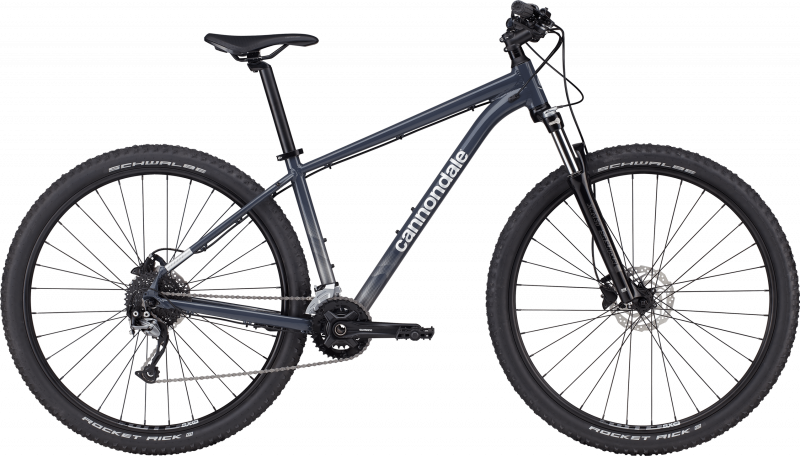

CANNONDALE TRAIL 6 BIKE

The CANNONDALE TRAIL 6 BIKE is an entry-level mtb made to ignite a passion for off-road riding and aim higher and higher.Designed for the mountains and ready for anything. The frame is made of aluminum and the bike is light and snappy.
Save microsuspension ensures a smooth ride and greater control by taking advantage of specially placed flex zones in the rear triangle.
The 68° open head angle ensures smooth handling and stability to tackle descents with complete confidence.
The smaller sizes of this bike mount 27.5" wheels while the larger sizes mount 29" wheels-this ensures the perfect mix of trim, speed and fun.
The shift cables run inside the StraightShot opening and inside the down tube, while the rear brake cables are attached on the outside, on the frame, so you get an integrated look and make maintenance easy.

CANNONDALE TRAIL 6 BIKE MAIN FEATURES:

• Lightweight and strong SmartForm C3 aluminum frame.
• SR Suntour XCM RL suspension fork, 100mm travel, remote lockout
• Shimano 9-speed drivetrain with double crankset.
• Shimano hydraulic disc brakes.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73.
• FORK: SR Suntour XCM-RL, 100mm, lockout, coil, 42mm offset (27.5") 46mm offset (29").
• HEADSET: Semi-Integrated, 1-1/8".

DRIVETRAIN

• SHIFTER: Shimano Alivio, Shadow SGS.
• DERAILLEUR: Shimano Altus, 34.9mm clamp.
• SHIFT LEVER: Shimano Alivio, 9-speed.
• CHAIN: KMC X9, 9-speed.
• CRANKSET: Shimano MT210, 36/22.
• COGS: Shimano HG200, 11-36, 9-speed.
• BOTTOM BRACKET: Sealed cartridge bearing, square taper.

BRAKES

• BRAKES: Tektro M275 hydraulic disc, 160/160mm rotors.
• BRAKE LEVER: Tektro hydraulic disc.

WHEELS

• FRONT HUB: Shimano HBTX 505.
• REAR HUB: Shimano FH-TX505.
• RIMS: WTB SX19, 32h.
• SPOKES: Stainless Steel, 14g.
• TIRE SIZE: 2.25.
• WHEEL SIZE: 29.
• TIRES: Schwalbe Rocket Rick, 29x2.25" (27.5x2.25" - XS, SM), K-Guard.

COMPONENTS

• HANDLEBAR: Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm.
• STEM: 6061 Alloy, 31.8, 7°.
• GRIPS: Cannondale Dual-Density.
• SADDLE: Cannondale Stage 3.
• SEATPOST: Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-XL).

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
