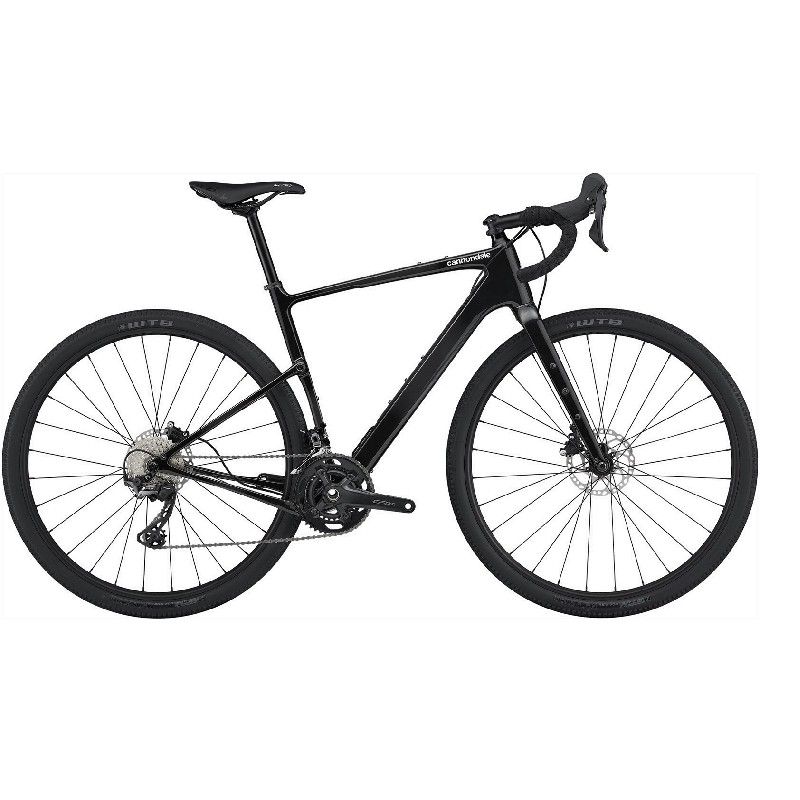

CANNONDALE TOPSTONE CARBON 3 BIKE

The TOPSTONE CARBON 3 is a gravel bike perfect for both dirt road and singletrack riding, and thanks to the grip and comfort of the Kingpin suspension, nothing is off-limits. The Kingpin suspension is Cannondale's answer to the most demanding gravel users. Whether you need more comfort for long rides, more traction for cornering at the limit, or more absorption for more technical trails, - Kingpin is the lightweight, maintenance-free answer to your prayers.
Low-friction bushings placed on the KingPin suspension pivot ensure smooth, reliable, maintenance-free operation for a savings of more than 100gr over standard bearings.
The low-slung chainstays design allows for tires up to 700x45mm or 27.5x2.1, leaving sixmm of wheel clearance on either side and with standard camber for easy wheel changes.
The size-specific Proportional Response design gives just the right amount of stiffness for each frame size so everyone can enjoy the superb riding feel that Topstone is known for.
The SmartSense-Ready frame makes it easy to integrate the bike with Cannondale's light and rear-view radar system.
OutFront geometry makes the bike safe, stable, and maneuverable: the longer fork offset and open head angle keep the steering lively, easy to ride, and offer high confidence at high speeds and in corners.
Through Cannondale's free app, the integrated wheel sensor captures accurate information on speed, route and distance traveled. It also allows you to register the bike, reminds you when to perform maintenance and many other services.
The bike can mount a 27.2 mm telescopic seatpost with internal cable routing-a must for two-wheelers.
Numerous mounts and water bottle attachments on the frame and fork allow the bike to be loaded and travel long distances.

CANNONDALE TOPSTONE CARBON 3 BIKE MAIN FEATURES:

• Lightweight carbon frame with Kingpin suspension, SmartSense compatible.
• Integrated connectivity with the Cannondale App.
• Shimano GRX 800/600 11v gravel-specific drivetrain.
• WTB ST i23 TCS rims with 700x45c WTB Riddler TCS Light tires.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts.
• FORK: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts.
• HEADSET: Integrated, 1-1/8" - 1-1/2".

DRIVETRAIN

• SHIFTER: Shimano GRX 810, Shadow RD+.
• DERAILLEUR: Shimano GRX 810, braze-on.
• SHIFT LEVER: Shimano GRX 600, 11-speed.
• CHAIN: Shimano HG601, 11-speed.
• CRANKSET: Shimano GRX 600, 46/30.
• COGS: Shimano HG700, 11-34, 11-speed.
• BOTTOM BRACKET: Shimano BSA 68.

BRAKES

• BRAKES: Shimano GRX 600 hydraulic disc, 160/160mm RT64 rotors.
• BRAKE LEVER: Shimano GRX 600 hydraulic disc.

WHEELS

• RIMS: WTB ST i23 TCS, 700c, 28h, tubeless ready.
• SPOKES: Stainless Steel, 14g.
• TIRES: WTB Riddler TCS Light, 700 x 45c, tubeless ready.
• TIRE SIZE: 45.
• WHEEL SIZE: 700c.
• HUBS: (F) Formula cartridge bearing, 12x100mm, centerlock / (R) Formula cartridge bearing, 12x142mm, centerlock.
• FRONT TIRE: WTB Riddler TCS Light, 700 x 45c, tubeless ready.
• REAR TIRE: WTB Riddler TCS Light, 700 x 45c, tubeless ready.

COMPONENTS

• HANDLEBAR: Cannondale 3, butted 6061 Alloy, 16 deg flare drop.
• STEM: Cannondale 3, 6061 Alloy, 31.8, 7°.
• GRIPS: Fizik Solocush Soft, 3mm.
• SADDLE: Fizik Aliante Delta, S-alloy rails.
• SEATPOST: Cannondale 3, 6061 Alloy, 27.2 x 350mm.

CONNECTIVITY

• WHEEL SENSOR: Cannondale Wheel Sensor.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C15372U10MD (Sz.MD - Color: Carbon)
