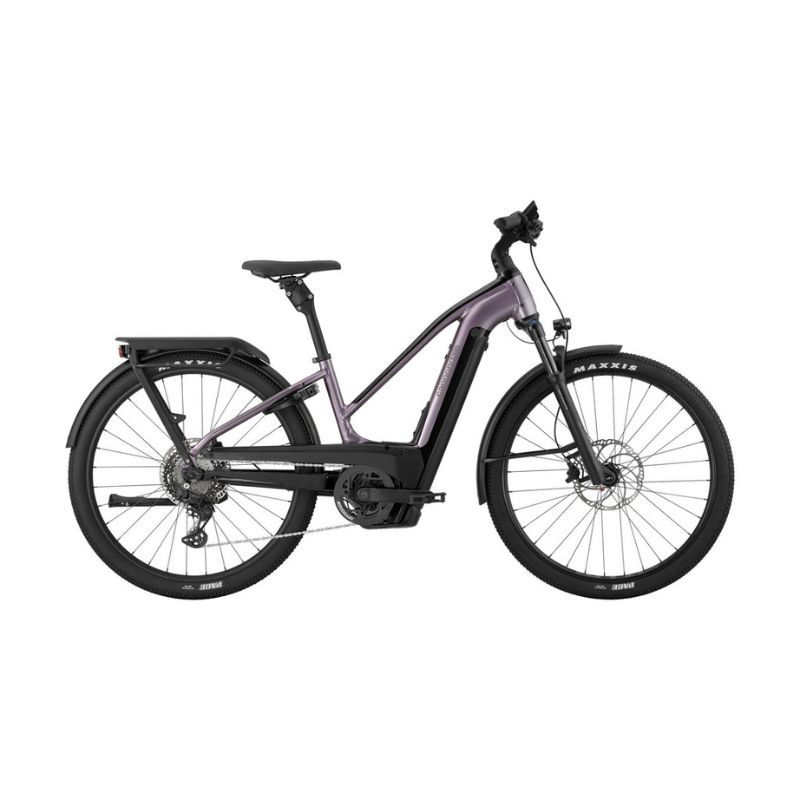

CANNONDALE TESORO NEO X 1 STEP THRU BIKE

The CANNONDALE TESORO NEO X 1 STEP THRU is a sporty city e-bike perfect for everyday use. Thanks to its long range, durable components and all-terrain tyres, this bike is perfect for everyday use as well as for a weekend away.
The bike is equipped with the powerful Bosch 750wh battery, the drive system provides pedal assistance up to a maximum speed of 25 km/h and on a single charge it is possible to ride up to 175 km.
The bike has the new Bosch Smart System, with a powerful 750wh battery, Performance Line CX motor, and Kiox 300 LED display with remote control. Effortless acceleration, compelling versatility, and a range of up to 175km on a single charge.
The Tesoro Neo X 1 features a 100mm travel fork, high-capacity luggage rack, mudguards, bright front and rear lights, wide handlebars, and proper gears: the new Tesoro Neo X is ready to go and conquer any road.
The battery can be recharged directly on the bike or can be easily removed for recharging via the removable cover under the down tube.
The Bosch Smart System can be adjusted and controlled via the eBike Flow app and is constantly updated for maximum customisation.
The durable Shimano LinkGlide drivetrain is designed to withstand the higher loads and daily use of a trekking e-bike.
The Intellimount stem allows for easy and secure attachment to the stem.

CANNONDALE TESORO NEO X 1 STEP THRU BIKE MAIN FEATURES:

• Step-thru aluminium SmartForm C1 frame.
• SR Suntour XCR34 100mm fork.
• Shimano Deore LinkGlide 10-speed drivetrain.
• Magura CT hydraulic disc brakes.
• Bosch Smart System - Bosch Performance Line CX 250 W motor / 750 Wh battery / Kiox 300 colour display with remote control / Range: up to 175 km.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: SmartForm C1 Alloy, step-thru, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection.
• FORK: SR Suntour XCR34, 100mm, coil, boost spacing, offset - 44mm (S) / 51mm (M, L).
• HEADSET: Integrated Sealed Bearing, Tapered, internal cable routing.

E-SYSTEM

• MOTOR: Bosch Performance Line CX 250W.
• BATTERY: Bosch PowerTube 750Wh.
• CHARGER: Bosch 4A.
• DISPLAY: Bosch Kiox 300 w/ LED remote.

DRIVETRAIN

• SHIFTER: Shimano Deore LinkGlide Shadow RD+.
• SHIFT LEVER: Shimano Deore LinkGlide, 10-speed.
• CHAIN: LinkGlide 10-speed.
• CRANKSET: Bosch Gen4, 38T.
• COGS: Shimano Deore LinkGlide, 11-43, 10-speed.

BRAKES

• BRAKES: Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm.
• BRAKES LEVERS: Magura MT C hydraulic disc.

WHEELS

• RIMS: WTB STX i30 TCS, 32h, tubeless ready.
• FRONT HUB: Shimano MT400, 15x110mm thru-axle.
• REAR HUB: Shimano R600, 32H, QR.
• SPOKES: Stainless Steel, 14g.
• TIRES: Maxxis Pace 29x2.1" 53-622 (M,L) / 27.5x2.1" 53-584 (S).
• TIRE SIZE: 2.2.
• WHEEL SIZE: 29

COMPONENTS

• HANDLEBAR: Cannondale Trekking.
• STEM: Cannondale Urban Intellimount, internal cable routing, SP-Connect compatible phone mount.
• GRIPS: Cannondale Ergo Fitness Dual Density, Lock-on.
• SADDLE: Selle Royale Lookin.
• SEATPOST: Parallelogram Suspension Seatpost, 31.6, 300mm (SM), 350mm (MD), 400mm (LG).

EXTRA

• EXTRA 1: Integrated headtube running light, Cannondale Urban rear rack (25kg, Racktime compatible), Curana Apollo fenders, Axa Blueline 30 headlight / Blueline taillight), kickstand, Abus 4650X frame lock (key-matched with battery lock).

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C66212U20MD (Sz.MD - Color: Grey)
