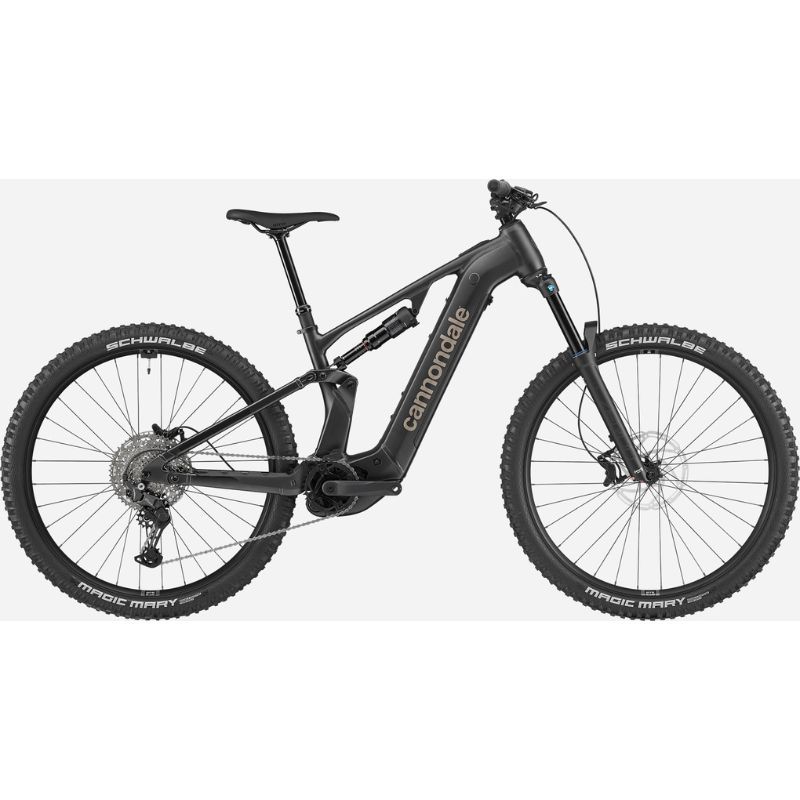

CANNONDALE MOTERRA 4 2026 BIKE
The Moterra delivers incredible power and range, combined with highly capable suspension, to tackle rough terrain like a luxury off-roader. Designed to go further, faster.
The Moterra 4 keeps it simple: reliable, rugged, and ready for anything. Its SmartForm C1 aluminum frame, RockShox Deluxe Select shock, and burly Suntour Zeron 36X fork ensure a balanced, stable, and predictable ride. The powerful Bosch CX motor and 600Wh battery deliver smooth and consistent power, providing more than enough range to make every ride an adventure. Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes make this bike a dependable companion for off-road exploration or full-day excursions.
Premium Aluminum
For decades, Cannondale has turned aluminum into something extraordinary. Featuring SmartForm alloy frames, the Moterra 3 and 4 offer the toughness trail riders need with nimble handling. With 150 mm of rear travel, 160 mm up front, and strong 29-inch wheels, these bikes thrive in tight switchbacks, steep terrain, and all-out trail sessions.
The Power You Need
With 100 Nm of torque from Bosch’s Performance Line CX motor, this bike will have you grinning uphill and laughing downhill. The 800Wh or 600Wh PowerTube batteries provide enough energy to defy gravity all day long. The power delivery is so smooth, immediate, and satisfying, it feels like the bike can read your mind before you even touch the pedals.
CANNONDALE MOTERRA 4 2026 KEY FEATURES:
- High-quality SmartForm C1 aluminum frame - Proportional Response suspension tuned for each size, optimized for air shock and 29” wheels
- Powerful Bosch Performance CX motor for natural power delivery and confident climbing
- Removable 600Wh battery for the ideal balance between range and low weight
- SR Suntour Zeron 36-X Boost 160 mm fork and RockShox Deluxe Select air shock
- Precise shifting from Shimano CUES U6000 LinkGlide 11-speed drivetrain
- Powerful and accurate braking from Tektro Gemini SL 4-piston brakes with 203 mm rotors
THIS BIKE IS DELIVERED PARTIALLY ASSEMBLED BY US*
TECHNICAL SPECIFICATIONS
Frame Kit
- Frame: Moterra, SmartForm C1 Alloy, 29" wheels, 150 mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55 mm chainline, internal cable routing, 148x12 mm thru-axle, UDH, 200 mm native post mount brake, 1.5”–1.8” tapered headtube, kickstand compatible, integrated rack and fender mounts
- Fork: SR Suntour Zeron 36-X Boost, 160 mm, EQ Air, compression & rebound adjust, 15x110 mm thru-axle, tapered steerer, 44 mm offset
- Headset: Acros ICR, 1.5" to 1.8", sealed bearings
- Rear Shock: RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5 mm
E-System
- Motor: Bosch Performance Line CX
- Battery: Bosch PowerTube, 600 Wh
- Charger: Bosch 4A
- Display: Bosch LED Remote
Drivetrain
- Rear Derailleur: Shimano CUES U6000, LinkGlide
- Shifters: Shimano CUES U6000, 11-speed, LinkGlide
- Chain: Shimano LG500, LinkGlide, 11-speed
- Crankset: FSA Bosch E-bike, 55 mm chainline, 160 mm, 34T
- Cassette: Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Brakes
- Brakes: Tektro Gemini SL 4-piston hydraulic disc, 203 mm rotors
- Brake Levers: Tektro Gemini SL hydraulic disc
Wheels
- Rims: WTB ST i30 TCS, 30 mm internal width, 32h, tubeless compatible
- Spokes: DT Swiss Champion 2.0
- Tire Size: 2.4
- Wheel Size: 29
- Hubs: (F) Shimano TC500, 15x110 mm thru-axle / (R) Shimano TC500, 12x148 mm thru-axle, centerlock
- Tires: (F/R) Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, TLR
Components
- Handlebar: Cannondale 3 riser, 6061 Alloy, 25 mm rise, 8° sweep, 4° rise, 800 mm
- Stem: Cannondale 1, 6061 Alloy, 35.0, 40 mm, 0°
- Grips: Cannondale TaperRidge
- Saddle: WTB Silverado Medium
- Seatpost: Cannondale DownLow Dropper, internal routing, 34.9, 150 mm (S), 170 mm (M), 200 mm (L), 230 mm (XL)
Extras
- Extra: Bosch PowerMore range extender compatible
