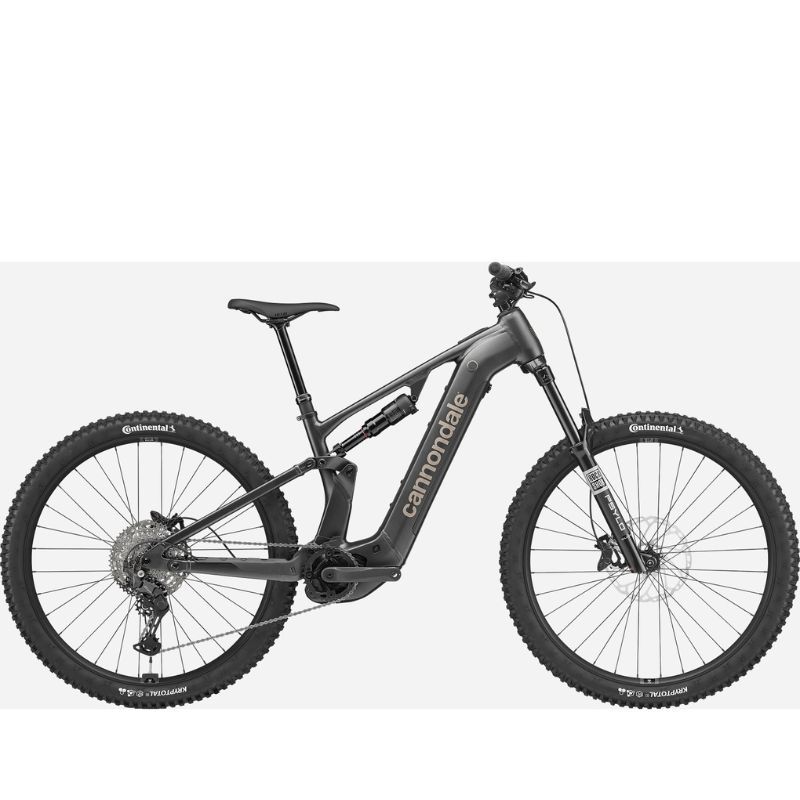

CANNONDALE MOTERRA 3 2026 BIKE
More range, fewer excuses
The Moterra delivers exceptional power and battery life paired with extremely capable suspension, so you can tackle rough terrain like a luxury off‑roader. Built to go farther, faster.
Built tough, responsive, and ready for anything: the Moterra 3 includes everything you need for long trail days. A SmartForm C1 aluminum frame with 150 mm travel, an 800 Wh battery, and Bosch’s most powerful CX motor make even the steepest climbs effortless. A RockShox Psylo Silver RC 160 mm fork and Deluxe Select shock provide responsive, controlled ride feel, while Shimano CUES U6000 drivetrain and MT520 four‑piston brakes offer reliable performance. With WTB/Shimano wheels, it’s a trusted trail companion.
High‑quality aluminum
For decades Cannondale has elevated aluminum performance. The Moterra 3 and 4’s SmartForm frames combine trail‑hungry durability with lively handling. 150 mm rear and 160 mm front suspension plus beefy 29″ wheels make this bike sharp in tight corners, confident on steep sections, and always performance ready.
The power you need
With 100 Nm from Bosch Performance Line CX, this bike smiles uphill and laughs downhill. Whether equipped with 800 Wh or 600 Wh PowerTube batteries, you’ll have energy to challenge gravity all day. Power delivery is so smooth, immediate, and satisfying you’ll think it reads your intentions before you sip the pedals.
CANNONDALE MOTERRA 3 2026 – KEY FEATURES:
- SmartForm C1 high-quality aluminum frame – size‑specific Proportional Response suspension tuned for each size, optimized for air shock & 29″ wheels
- BOSCH’S most powerful system – Performance Line CX motor with 800 Wh battery for incredible natural power delivery and long range
- RockShox all‑mountain suspension – 160 mm Psylo Silver RC fork and Deluxe Select air shock
- Reliable WTB ST i30 rims (30 mm inner), Shimano hubs, Continental Kryptotal tires
- Sharp shifting via Shimano CUES U6000 LinkGlide 11‑speed drivetrain
- Shimano MT520 4‑piston hydraulic brakes with 203 mm RT64 rotors for strong, consistent stopping power
BIKE COMES PRE‑ASSEMBLED BY US*
TECHNICAL SPECIFICATIONS
Frame Kit
- Frame: Moterra, SmartForm C1 Alloy, 29″ wheels, 150 mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55 mm chainline, internal routing, 148×12 mm thru‑axle, UDH, 200 mm brake mount, tapered headtube 1.5″–1.8″, kickstand compatible, integrated rear rack & fender mounts
- Fork: RockShox Psylo Silver RC, 160 mm, Motion Control, SoloAir, 15×110 mm Maxle, tapered steerer, 44 mm offset
- Headset: Acros ICR, sealed bearings, tapered 1.5″–1.8″
- Rear Shock: RockShox Deluxe Select DebonAir+, adjustable rebound, 230×62.5 mm
E‑System
- Motor: Bosch Performance Line CX
- Battery: Bosch PowerTube 800 Wh
- Charger: Bosch 4 A
- Display: Bosch Purion 200
Drivetrain
- Shifter: Shimano CUES U6000 LinkGlide, 11‑speed
- Cassette: Shimano CUES LG400 11‑50T
- Crank: FSA Bosch E‑bike, 55 mm chainline, 160 mm, 34T
- Chain: Shimano LG500, LinkGlide 11‑speed
Brakes
- Brake Calipers: Shimano MT520, 4‑piston hydraulic, 203 mm RT64 rotors
- Brake Levers: Shimano MT501 hydraulic disc
Wheels
- Rims: WTB ST i30 TCS, 30 mm inner, 32H, tubeless ready
- Spokes: DT Swiss Champion 2.0
- Tires: Continental Kryptotal 29×2.4″ Enduro Soft Black (front & rear)
- Hubs: Shimano TC500 (F 15×110 mm, R 12×148 mm, centerlock)
Components
- Handlebar: Cannondale 3 riser, 6061 alloy, 25 mm rise, 8° sweep, 800 mm width
- Stem: Cannondale 1, 6061 alloy, 35 mm clamp, 40 mm length, 0°
- Grips: Cannondale TaperRidge
- Saddle: WTB Silverado Medium
- Seatpost: Cannondale DownLow Dropper (34.9 mm, 150–230 mm travel depending on size)
Extras
- Compatible with Bosch PowerMore range extender
*PRO‑M STORE OFFERS FREE PRE‑ASSEMBLY: SEATPOST, FORK, DRIVETRAIN & BRAKES ARE ALREADY INSTALLED
