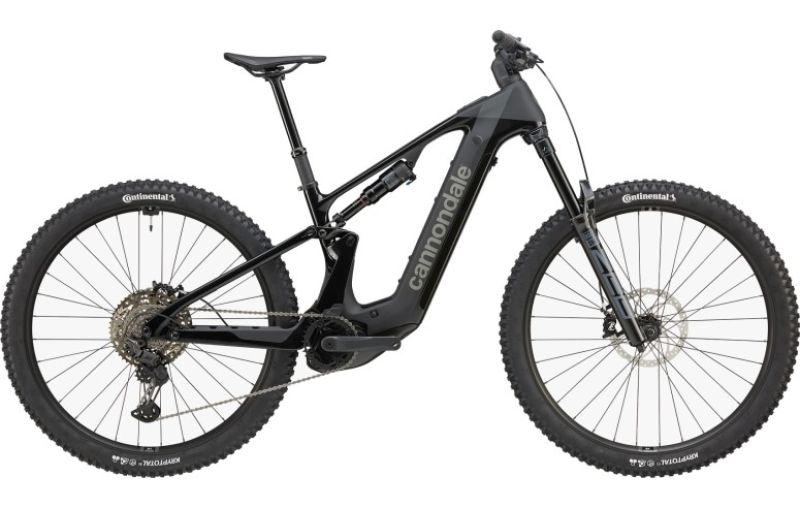

CANNONDALE MOTERRA 2 BIKE

Moterra offers extraordinary power and range, combined with incredibly capable suspension to tackle the roughest terrain like a luxury off-roader. Designed to go farther, faster.

A masterpiece with infinite potential. The Moterra 2 features a new lightweight full-carbon frame with 150 mm of travel and a robust 160 mm RockShox Zeb Select fork for impeccable handling. A Shimano XT/CUES U8000 mixed drivetrain and Magura MT5 brakes pair with Bosch's most powerful CX motor and an 800 Wh battery to push your rides beyond expectations. Agile, precise, and always ready to go further.

Endless rides, uphill wins, and permanent smiles on all types of trails—from easy to demanding.

Refinement at the rider’s service.

For mountain bikers who want it all—power, precision, and performance—the full-carbon Moterra frame is the right choice. With 150 mm of rear travel, 160 mm up front, and 29" wheels, it stays nimble on descents, stable on climbs, and agile in tight sections. Less weight and handling so perfect you'll forget it has a battery.

Power. Pedal. Repeat.

With up to 100 Nm of torque and an 800 Wh battery, the Bosch Performance Line CX system offers the perfect combination of power and endurance. Instant climbing power, effortless flat-ground speed, and the efficiency to ride from sunrise to sunset. No lag, no limitations—just pure pedal-assist euphoria.

Perfect fit, perfect ride.

Nothing is standard here. Moterra’s Proportional Response™ design means every frame size gets custom geometry, balancing weight, traction, and control. From your first pedal stroke to the last light of day, it's designed to move with you: stable, agile, and effortlessly smooth.

Key Features of the CANNONDALE MOTERRA 2:

• Lightweight carbon fiber frame – Proportional Response suspension tuned per size, optimized for air shock and 29" wheels
• Most powerful Bosch system – Performance CX motor and 800Wh battery with incredibly natural power delivery and long range
• Reliable and smooth RockShox suspension – ZEB Select 38 160 mm fork and Deluxe Select+ air shock
• Light yet tough WTB ST i30 Tough rims, 30 mm internal width, Shimano hubs, and Continental Kryptotal tires
• Seamless shifting with high-end mixed Shimano XT/CUES U8000 LinkGlide drivetrain
• Powerful and modulated braking with 4-piston Magura MT5 brakes and 203 mm rotors

THIS BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• Frame Kit
• Frame: Moterra Carbon, 29" wheels, 150 mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55 mm chainline, internal cable routing, 148x12 mm thru-axle, UDH, 200 mm post mount brake, 1.5”–1.8” tapered headtube, 40 mm two-bolt kickstand compatible
• Fork: RockShox ZEB Select, 160 mm, Charger RC, DebonAir+, 15x110 mm Maxle, 44 mm offset
• Headset: Acros ICR, 1.5”–1.8”, sealed bearings
• Rear Shock: RockShox Deluxe Select+, DebonAir+, 2-position mode adjust, adjustable rebound, 230x62.5 mm
• E-System
• Motor: Bosch Performance Line CX
• Battery: Bosch PowerTube, 800 Wh
• Charger: Bosch 4A
• Display: Top tube integrated System Controller with Bosch Kiox 300 and Mini Remote
• Drivetrain
• Rear Derailleur: Shimano XT M8130, LinkGlide
• Shifter: Shimano CUES U8000, 11-speed, LinkGlide
• Chain: Shimano LG500, LinkGlide, 11-speed
• Crankset: FSA Bosch E-bike, 55 mm chainline, 160 mm arms, 34T
• Cassette: Shimano CUES LG700, LinkGlide, 11-50, 11-speed
• Brakes
• Brakes: Magura MT5 4-piston hydraulic disc, 203 mm Storm rotors
• Brake Levers: Magura MT5 hydraulic disc
• Wheels
• Rims: WTB ST i30 Tough TCS, 30 mm inner width, 32h, tubeless compatible
• Spokes: DT Swiss Champion 2.0
• Tire Size: 2.4"
• Wheel Size: 29"
• Hubs:
  • Front: Shimano TC500, 15x110 mm thru-axle
  • Rear: Shimano TC500, 12x148 mm thru-axle, centerlock
• Tires:
  • Front: Continental Kryptotal-F, 29x2.4", Enduro Soft Black, foldable
  • Rear: Continental Kryptotal-R, 29x2.4", Enduro Soft Black, foldable
• Components
• Handlebar: Cannondale 3 riser, 6061 Alloy, 25 mm rise, 8° sweep, 4° rise, 800 mm width
• Stem: Cannondale Trail HeadsUp with integrated display mount, 3D forged 6061 Alloy, 1-1/8", 45 mm, 0°
• Grips: Cannondale TaperRidge
• Saddle: Fizik Terra Aidon X5, 145 mm width, Wingflex, S-Alloy Mobius rails
• Seatpost: Cannondale DownLow Dropper, internal routing, 34.9 mm diameter, travel:
  • 150 mm (S)
  • 170 mm (M)
  • 200 mm (L)
  • 230 mm (XL)
• Extra
• Compatible with Bosch PowerMore range extender

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DRIVETRAIN AND BRAKES ARE ALREADY INSTALLED
