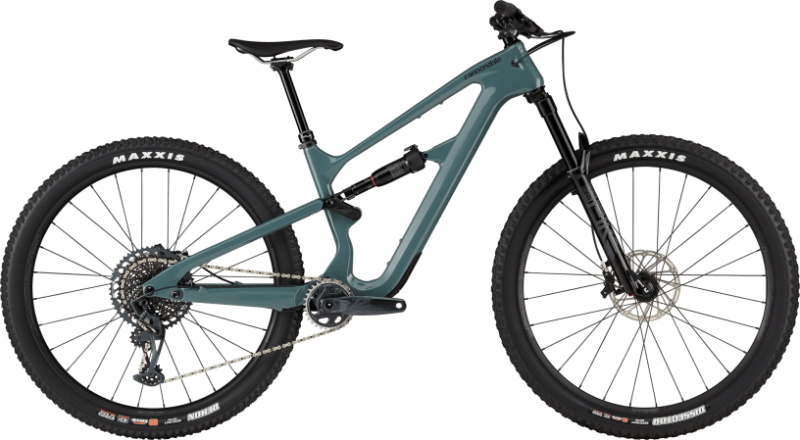

CANNONDALE HABIT CARBON 1 BIKE

The CANNONDALE HABIT CARBON 1 BIKE is a trail bike perfect for both challenging climbs and demolishing descents.A bike to do it all, in the name of fun!
The geometry of this bike is size-specific: the "Proportional Response" design from the suspension to the geometry via the length of the chainstays is completely customized to your size.
The 65.5° head angle and 77.5° seat angle make this bike perfectly balanced and allow the rider to sit in the perfect position to tackle the climbs and attack the descents.
A threaded bottom bracket, UDH rear derailleur dropout, internal cable routing, standard shock mount, and a 55mm chainline for optimal wheel passage make this bike both easy to use and maintain.

CANNONDALE HABIT CARBON 1 BIKE MAIN FEATURES:

• Full carbon frame - 130mm travel.
• SRAM GX Eagle 12v drivetrain.
• RockShox Pike Select+ 140mm fork.
• Deluxe Select+ shock absorber.SRAM G2 R hydraulic disc brakes.
• DownLow telescopic seatpost.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FRAME: Habit Full Carbon, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger.
• FORK: RockShox Pike Select+, 140mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset.
• HEADSET: Integrated Sealed Bearing, Tapered.
• SHOCK: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound.

DRIVETRAIN

• SHIFT: SRAM GX Eagle Lunar.
• SHIFT LEVER: SRAM GX Eagle, 12-speed.
• CHAIN: SRAM GX Eagle, 12-speed.
• CRANKSET: SRAM GX Eagle, DUB, 55mm CL, 30T.
• COGS: SRAM Eagle XG-1275, 10-52, 12-speed.
• BOTTOM BRACKET: SRAM DUB BSA MTB73 Wide.

BRAKES

• BRAKES: SRAM G2 R hydraulic disc, 180/180mm HS2 centerlock rotors.
• BRAKE LEVER: SRAM G2 R hydraulic disc.

WHEELS

• RIMS: Stan's NoTubes Arch MK4, 28h, tubeless ready.
• SPOKES: DT Swiss Champion.
• TIRE SIZE: 2.4.
• WHEEL SIZE: 29.
• HUBS: (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle.
• TIRES: (F) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS) 3C, EXO, tubeless ready, (R) Maxis Rekon, 29x2.4" (27.5x2.4" - XS) 3C, EXO, tubeless ready.

COMPONENTS

• HANDLEBAR: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm.
• STEM: Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°.
• GRIPS: Cannondale TrailShroom.
• SADDLE: Cannondale Scoop Shallow Elite, cro-mo rails.
• SEATPOST: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (XS-S), 150mm (M-XL).

CONNECTIVITY

• WHEEL SIZE: Cannondale Wheel Sensor.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED

ITEM NUMBER

C23101U10LG (Sz.LG - Color: Jade)
